DTC P0013: Camshaft Position "B" Actuator Circuit / Open (Bank 1); DTC P0023: Camshaft Position "B" Actuator Circuit / Open (Bank 2): Wiring Diagram

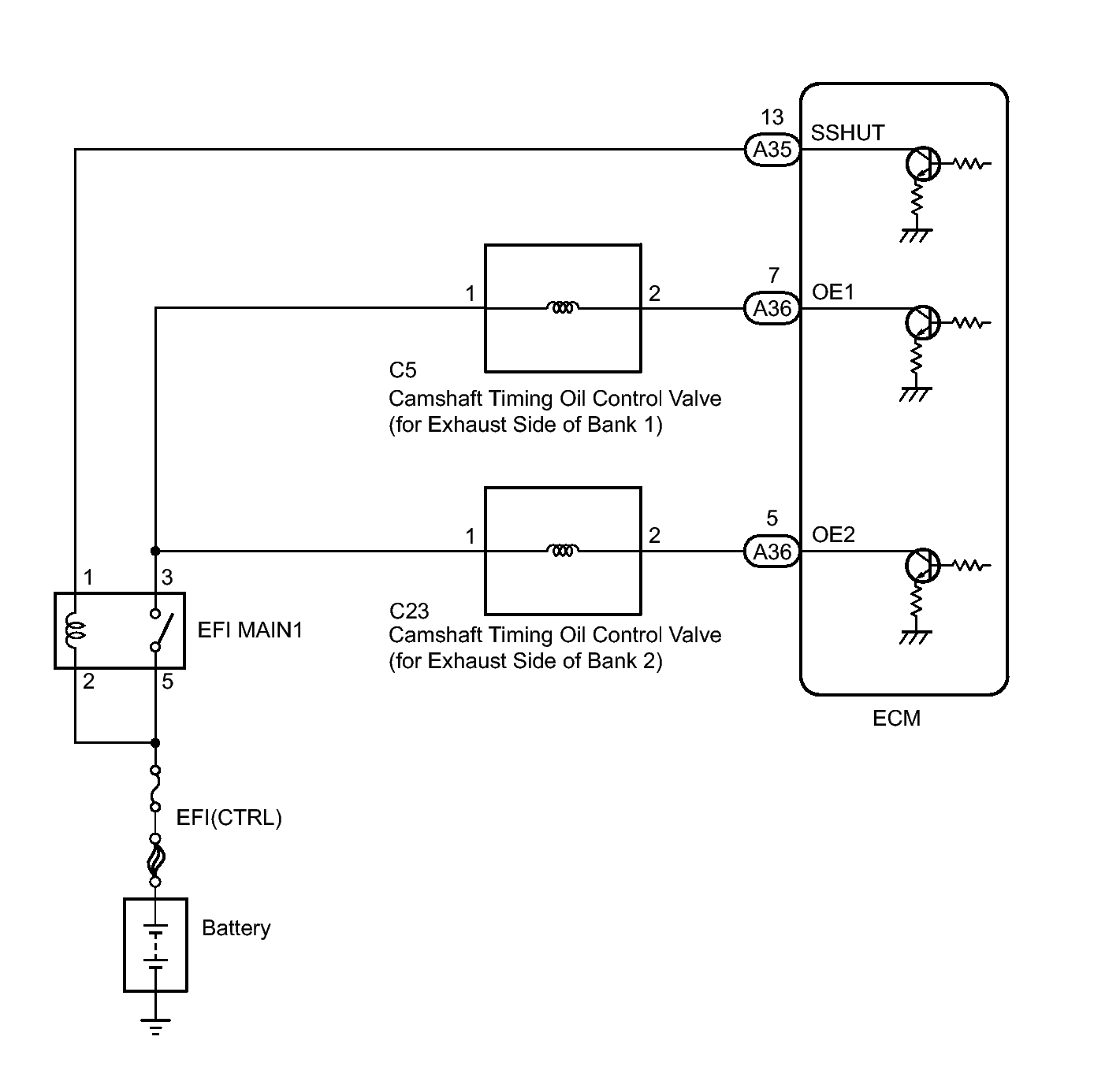

Fig 1: Identifying Camshaft Timing Oil Control Valve Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
