Removal [07/2013 - ]

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [07/2013 - 12/2013]
REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY See step 2
REMOVE PARKING BRAKE ASSEMBLY
Refer to DISASSEMBLY [07/2013 - ]
REMOVE CLAMP H/B
1. Remove the 2 nuts and the clamp H/B.

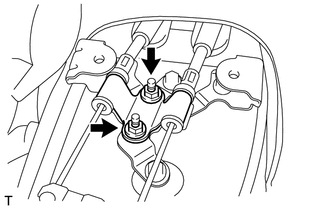

  Fig 1: Identifying 2 Nuts And Clamp H/B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER CASING BRACKET
1. Remove the 2 bolts and the lower casing bracket.

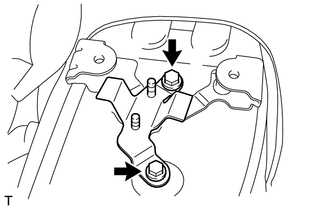

  Fig 2: Identifying 2 Bolts And Lower Casing Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 FUEL TANK PROTECTOR . Refer to REMOVAL [07/2013 - ] - Step 11
REMOVE CENTER EXHAUST PIPE ASSEMBLY
1. Remove the 2 nuts and the 2 bolts and the 2 compression spring and disconnect the center exhaust pipe assembly.

  Fig 3: Identifying 2 Nuts And 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and the 2 bolts and disconnect the tail exhaust pipe assembly.

  Fig 4: Identifying 2 Nuts And 2 Bolts, And Disconnect Tail Exhaust Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the cushion rubber and the center exhaust pipe assembly.

  Fig 5: Identifying Cushion Rubber And Center Exhaust Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the gasket.
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Refer to REMOVAL [07/2013 - ]

REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

Remove the 4 bolts and separate the No. 3 parking brake cable assembly from the vehicle.

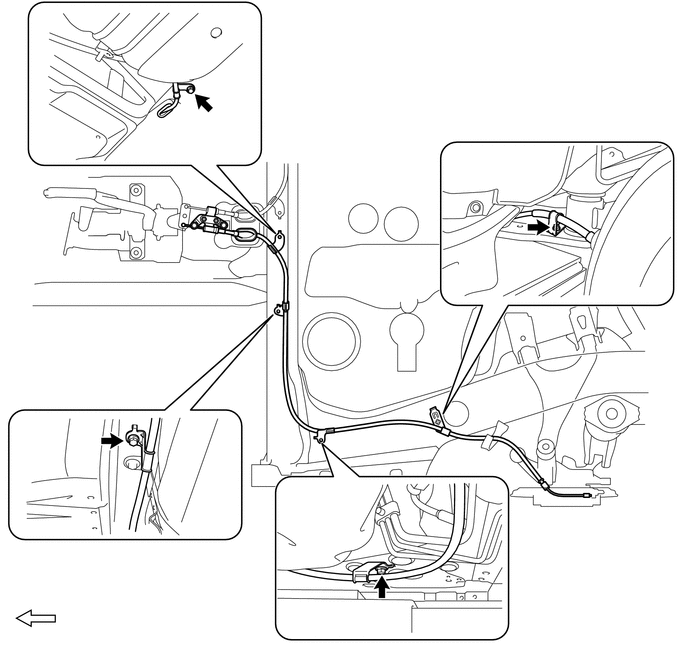

Fig 6: Identifying 4 Bolts And Separate No. 3 Parking Brake Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Bolt

Vehicle of the Front Side

Remove the clamp and remove the No. 3 parking brake cable assembly.

Fig 7: Identifying Clamp And Removing No. 3 Parking Brake Cable Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY
HINT:

Use the same No. 3 parking brake cable assembly as for the No. 2 parking brake cable assembly.
