Bleeding [07/2013 - ]

NOTE:

Move the shift lever to P and apply the parking brake before bleeding the brakes (for automatic transmission).
Apply the parking brake before bleeding the brakes (for manual transmission).
Add brake fluid to keep the level between the MIN and MAX lines of the reservoir while bleeding the brakes.
If brake fluid leaks onto any painted surface, immediately wash it off.
Do not operate the brake actuator assembly while air is in the brake system or in the brake master cylinder sub-assembly. Doing so may cause air to enter the brake actuator assembly.
If bleeding the brake actuator assembly is difficult due to air in the brake actuator assembly, replace it with a new one.

HINT:

If any work is done on the brake system or if air in the brake lines is suspected, bleed the air from the system.

FILL RESERVOIR WITH BRAKE FLUID See step 1
BLEED BRAKE MASTER CYLINDER SUB-ASSEMBLY
HINT:

If the master cylinder has been disassembled or if the reservoir becomes empty, bleed the air from the master cylinder.

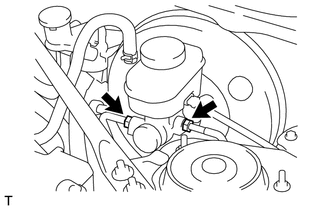

1. Using a union nut wrench 12 mm, separate the 2 brake tubes from the master cylinder.

  Fig 1: Locating Brake Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

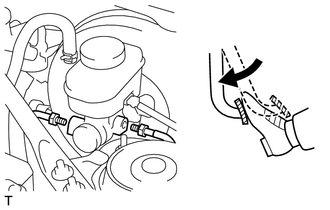

2. Slowly depress the brake pedal and hold it there (Step A).

  Fig 2: Depressing Brake Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

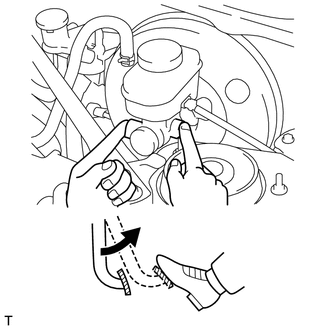

3. Block the outer holes with your fingers, and release the brake pedal (Step B).

  Fig 3: Blocking Outer Holes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Repeat Steps A and B 3 or 4 times.
5. Using a union nut wrench 12 mm, install the 2 brake tubes into the master cylinder.

  Fig 4: Locating Brake Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
  NOTE:
  - Do not bend or damage the brake lines.
  - Do not allow brake lines to twist and interfere with other parts or vehicle body during tightening.
  - Do not allow any foreign matter such as dirt or dust to enter the brake lines.
  - Use the formula to calculate special torque values for situations where a union nut wrench is combined with a torque wrench. Refer to PRECAUTION [07/2013 - ] .
BLEED BRAKE LINE See step 2
INSPECT FOR BRAKE FLUID LEAK
INSPECT FLUID LEVEL See step 1
