Components [07/2013 - ]: Illustration

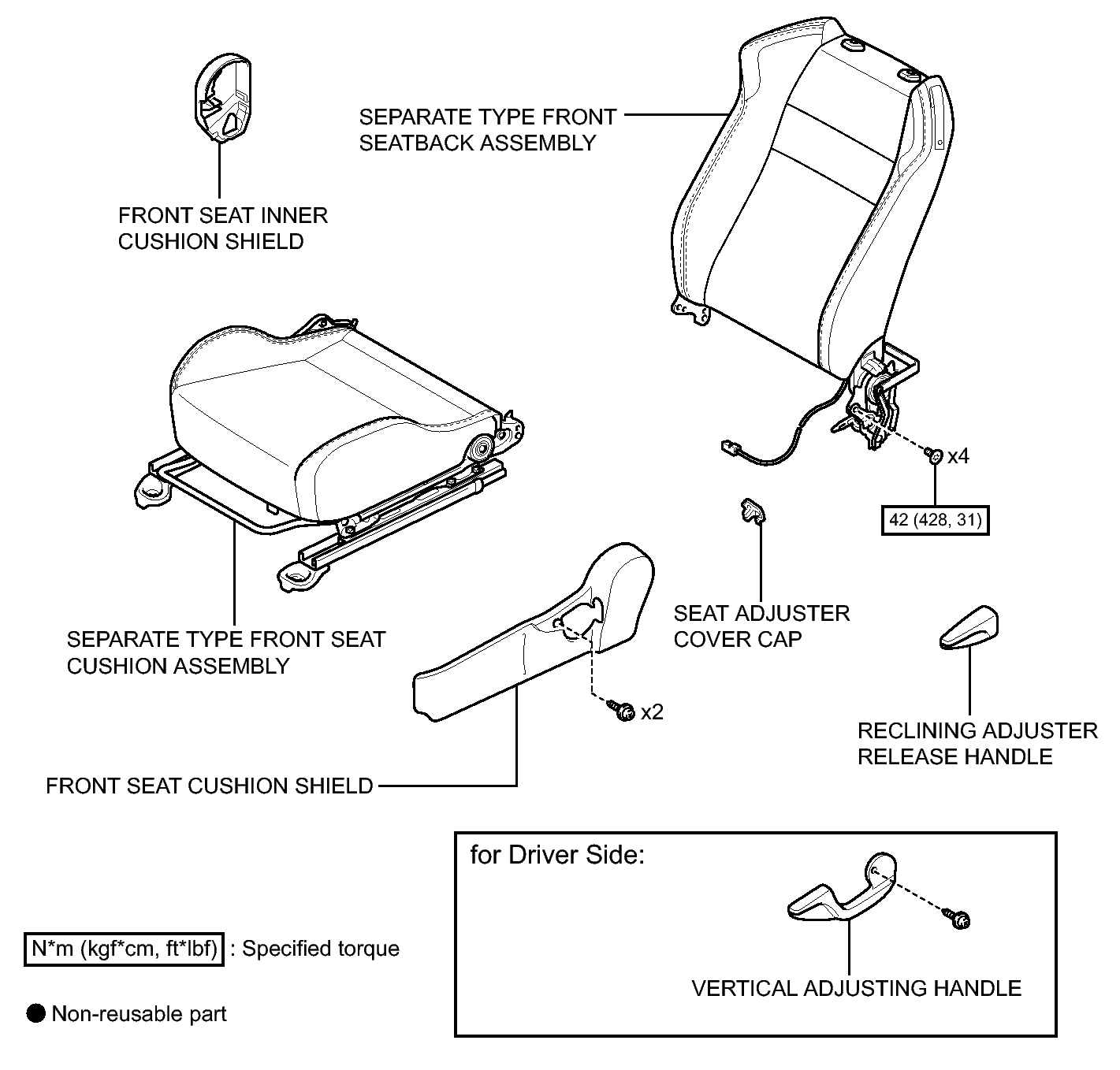

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)
GTY422405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

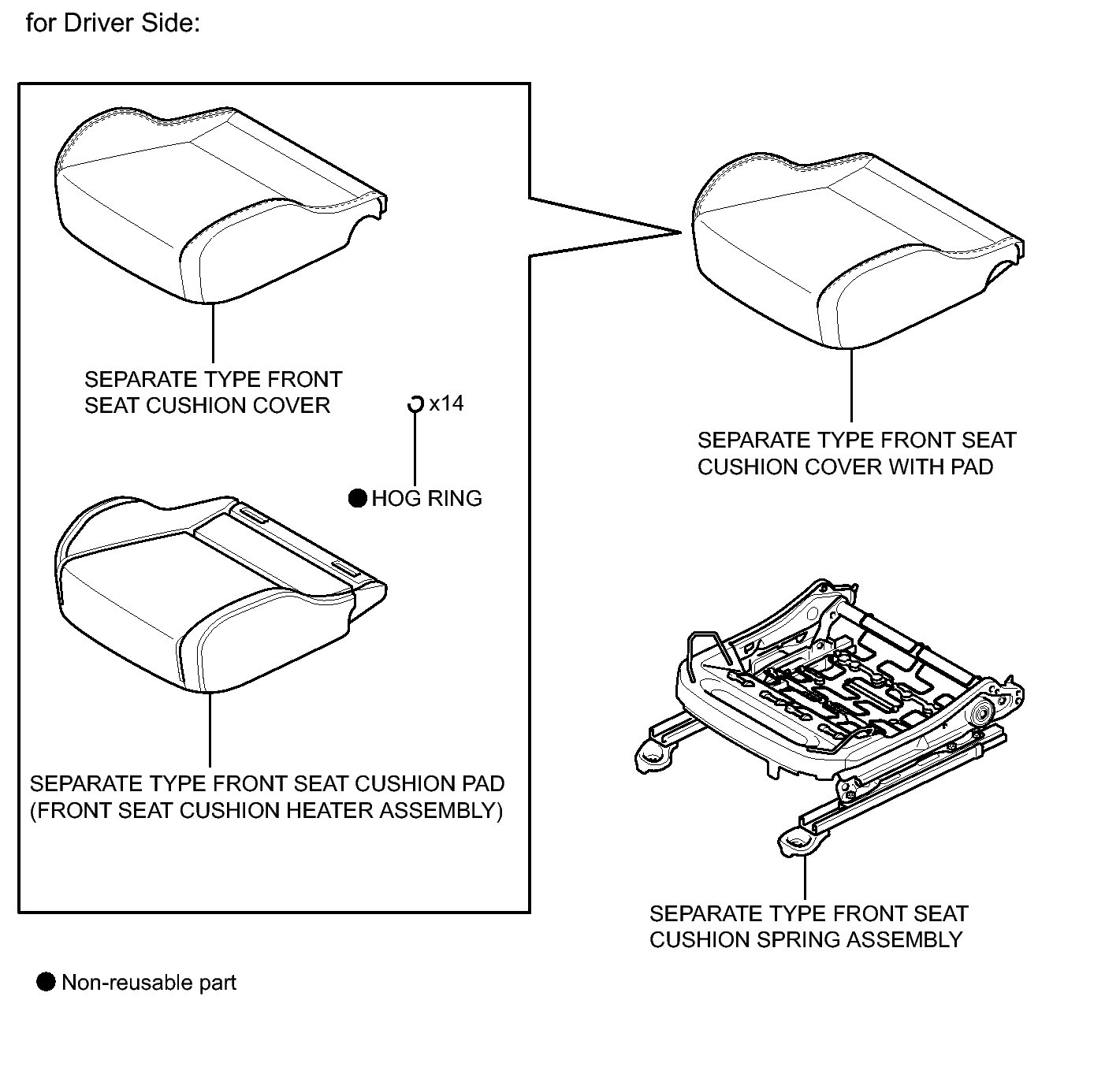

Fig 1: Front Seat Cushion Heater Replacement Components (2 Of 2)
GTY421883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
