Components [12/2013 - ]: Illustration

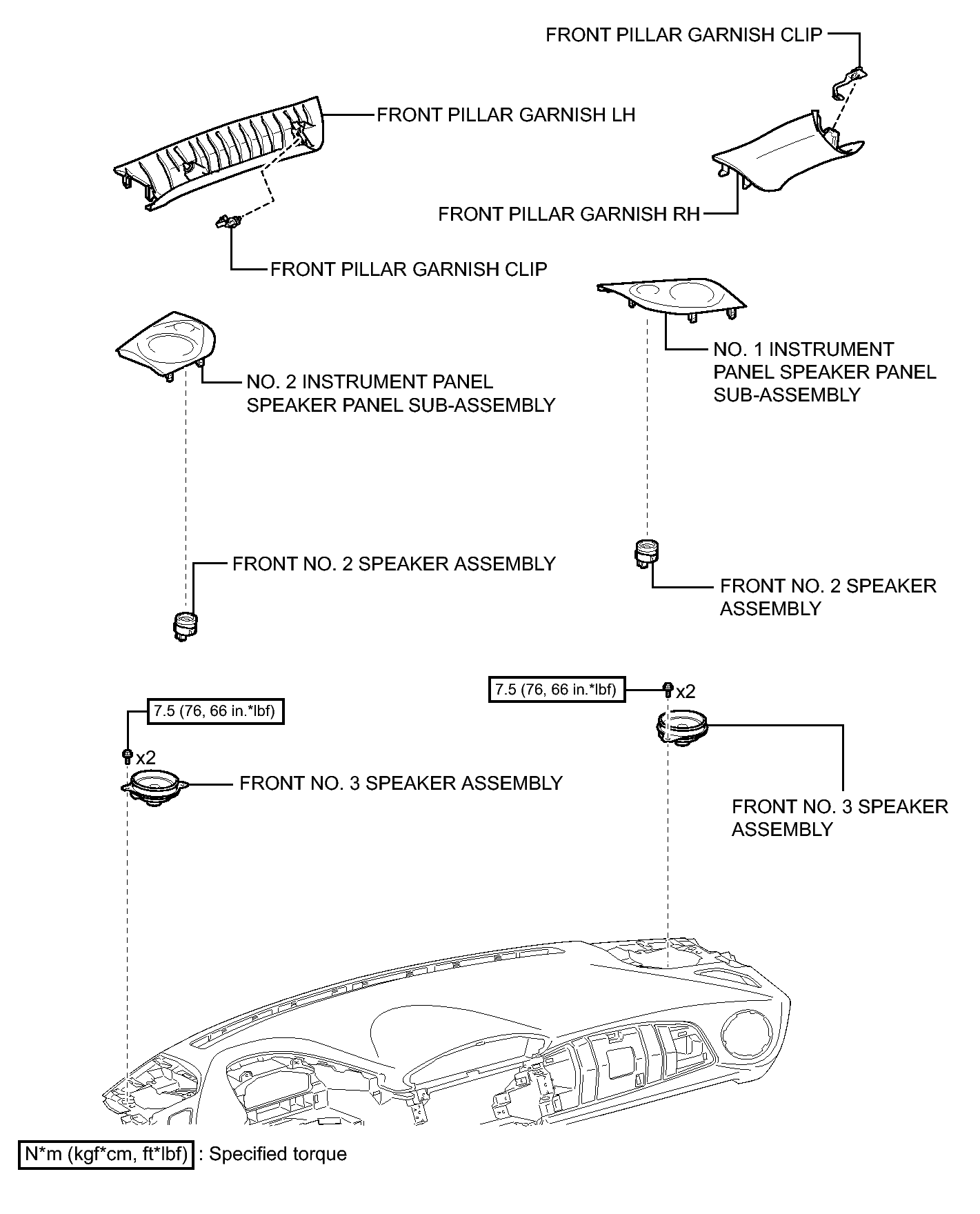

Fig 1: Identifying Upper Instrument Panel Replacement Components With Torque Specifications (4 Of 6)
GTY386444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

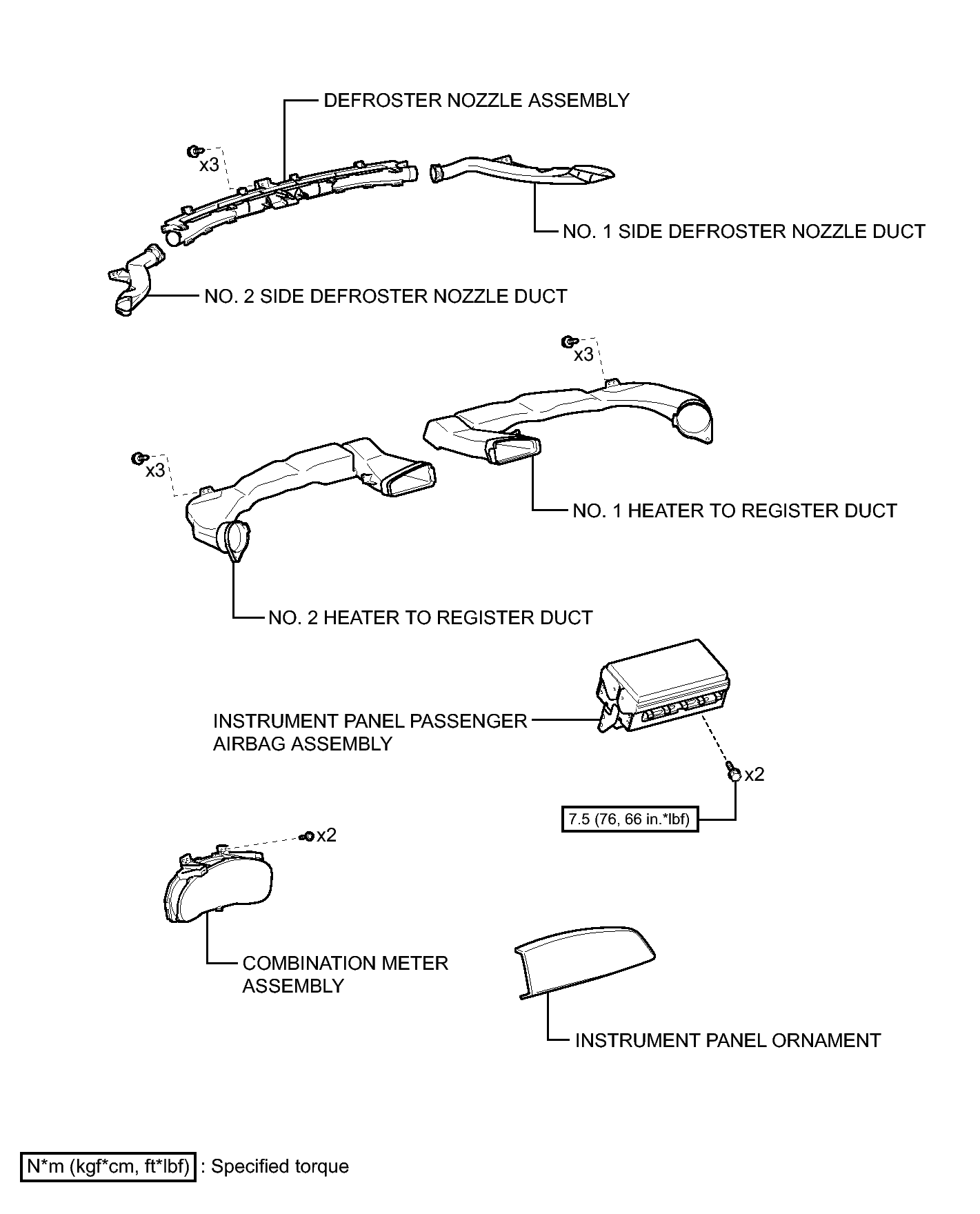

Fig 1: Identifying Upper Instrument Panel Replacement Components With Torque Specifications (5 Of 6)
GTY389278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

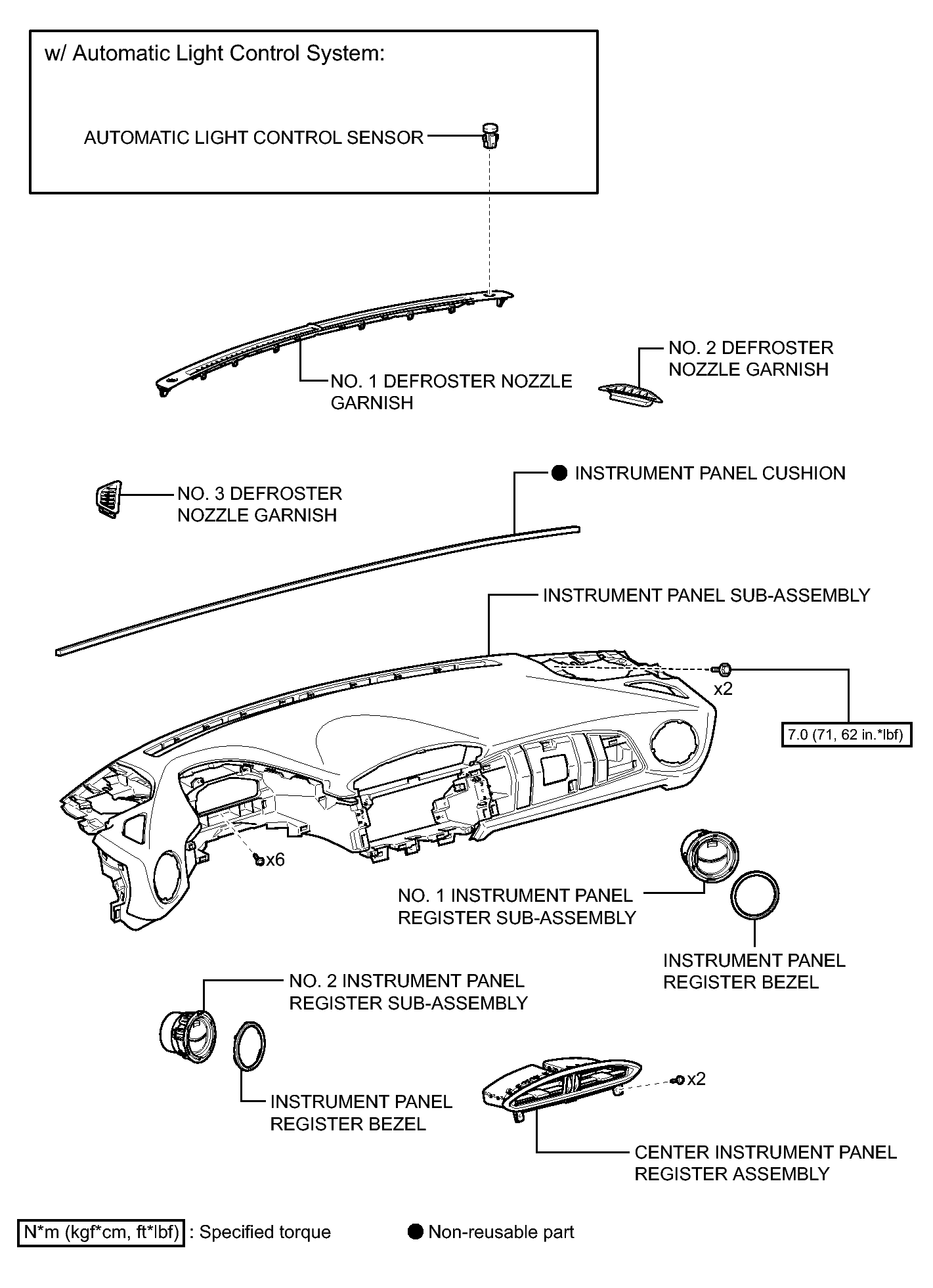

Fig 1: Identifying Upper Instrument Panel Replacement Components With Torque Specifications (6 Of 6)
GTY389036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
