Components [07/2013 - ]: Illustration

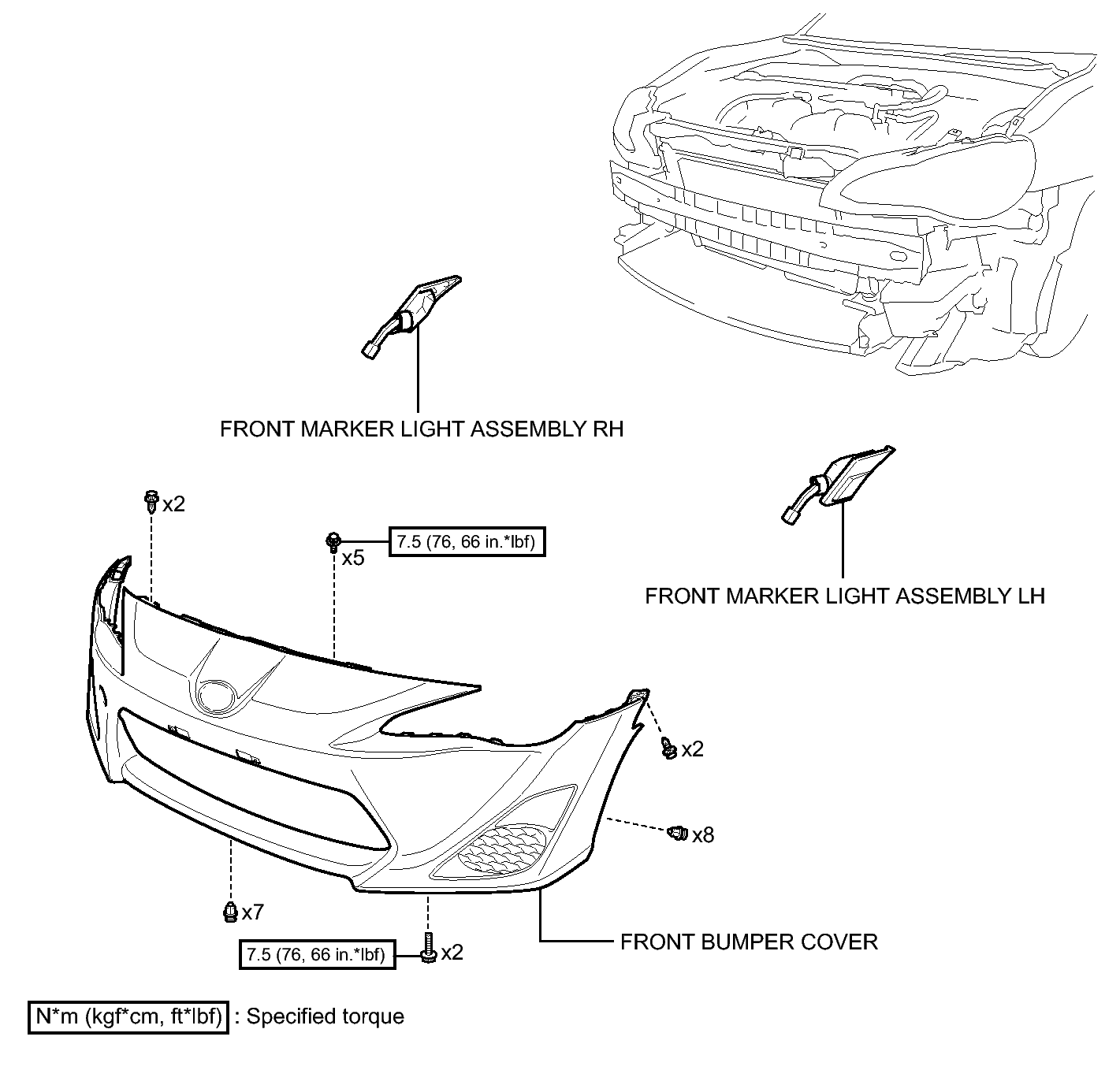

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (1 Of 3)
GTY388433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

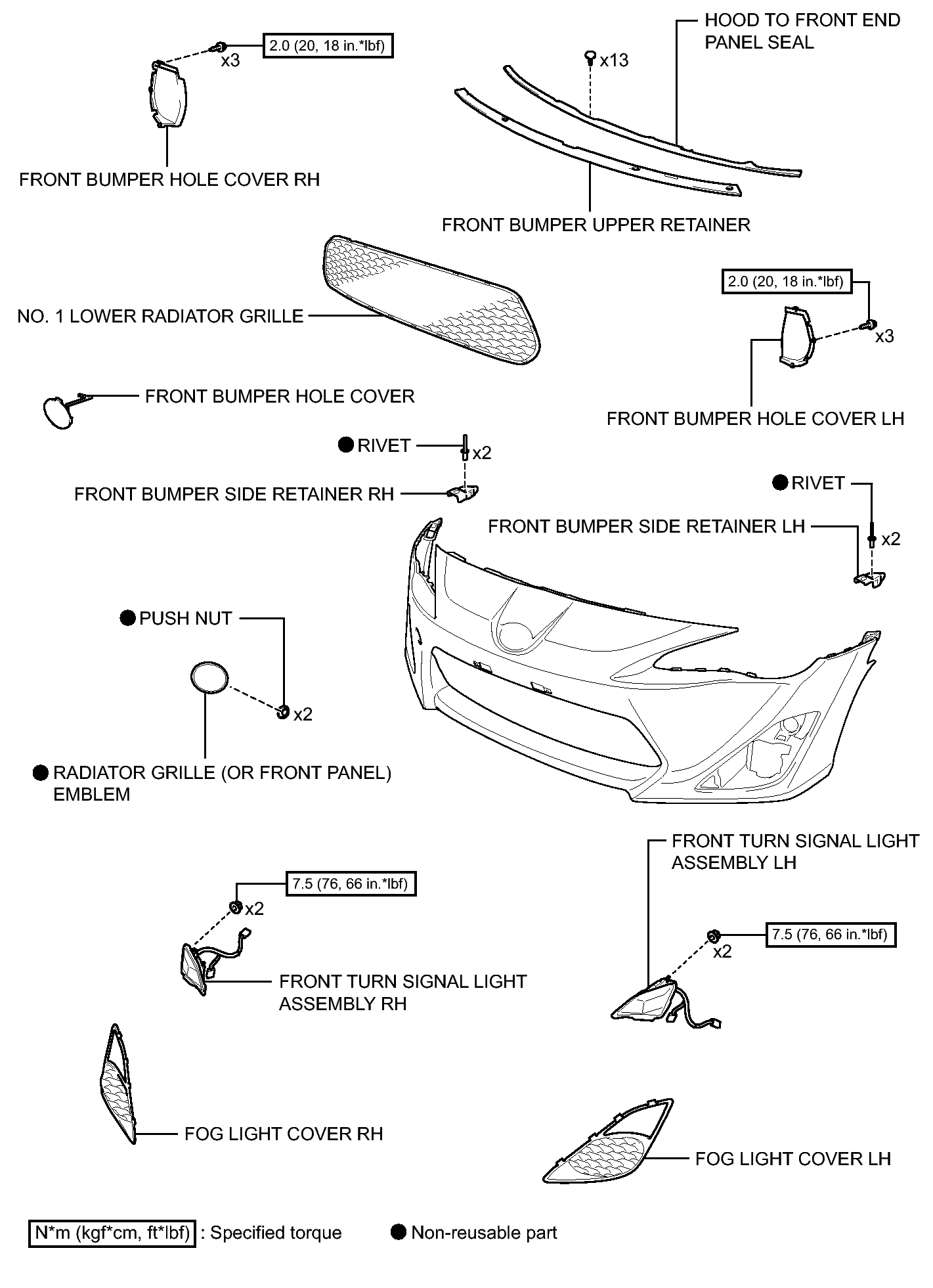

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (2 Of 3)
GTY390665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

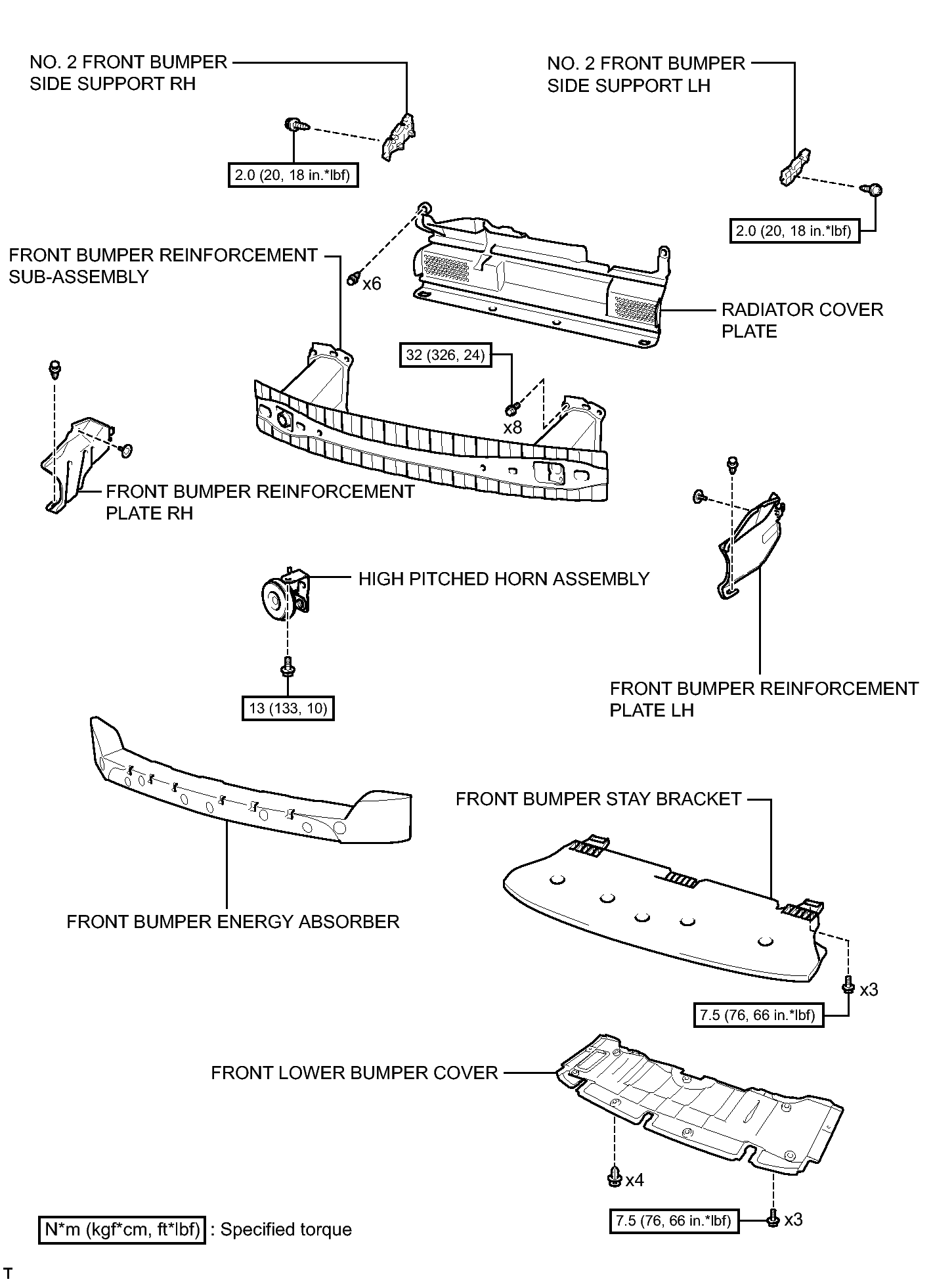

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (2 Of 3)
GTY392886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
