Components [07/2013 - ]: Illustration

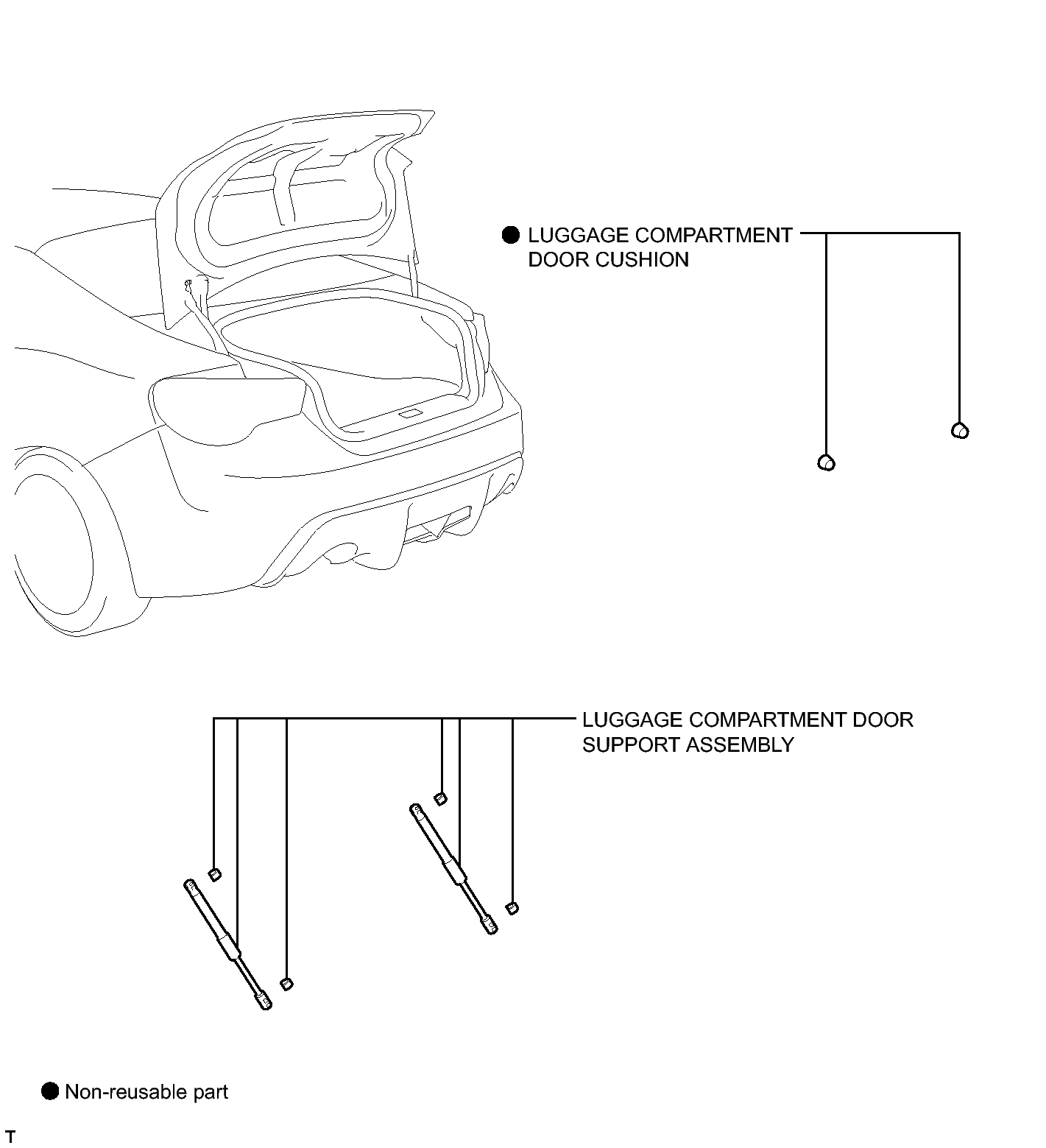

Fig 1: Identifying Luggage Compartment Door Replacement Components (1 Of 2)
GTY386001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

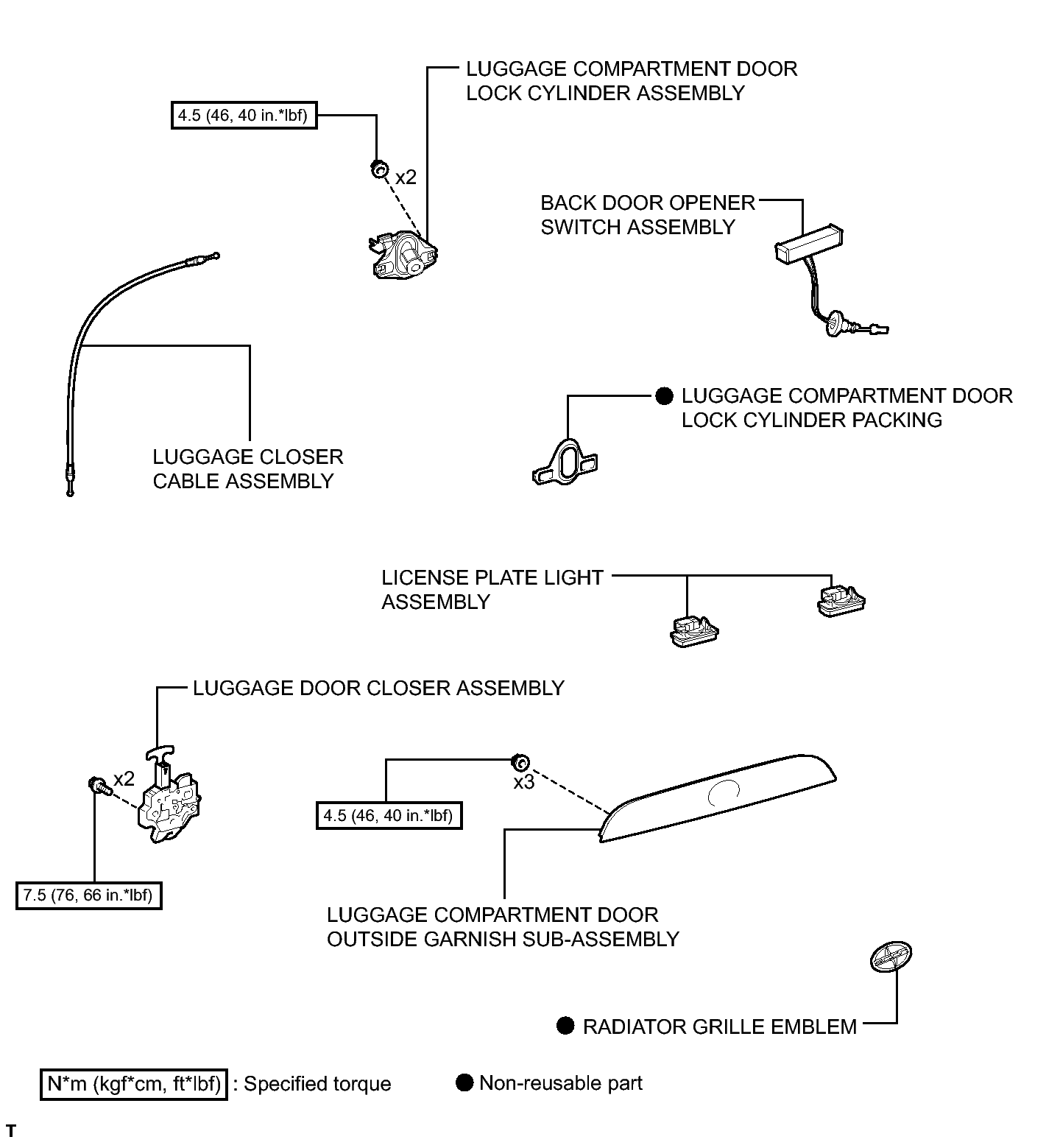

Fig 1: Identifying Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 2)
GTY389523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
