Components [12/2013 - ]: Illustration

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [12/2013 - ] (1 Of 5)
GTY392297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Door Replacement Components With Torque Specifications [12/2013 - ] (2 Of 5)
GTY384860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

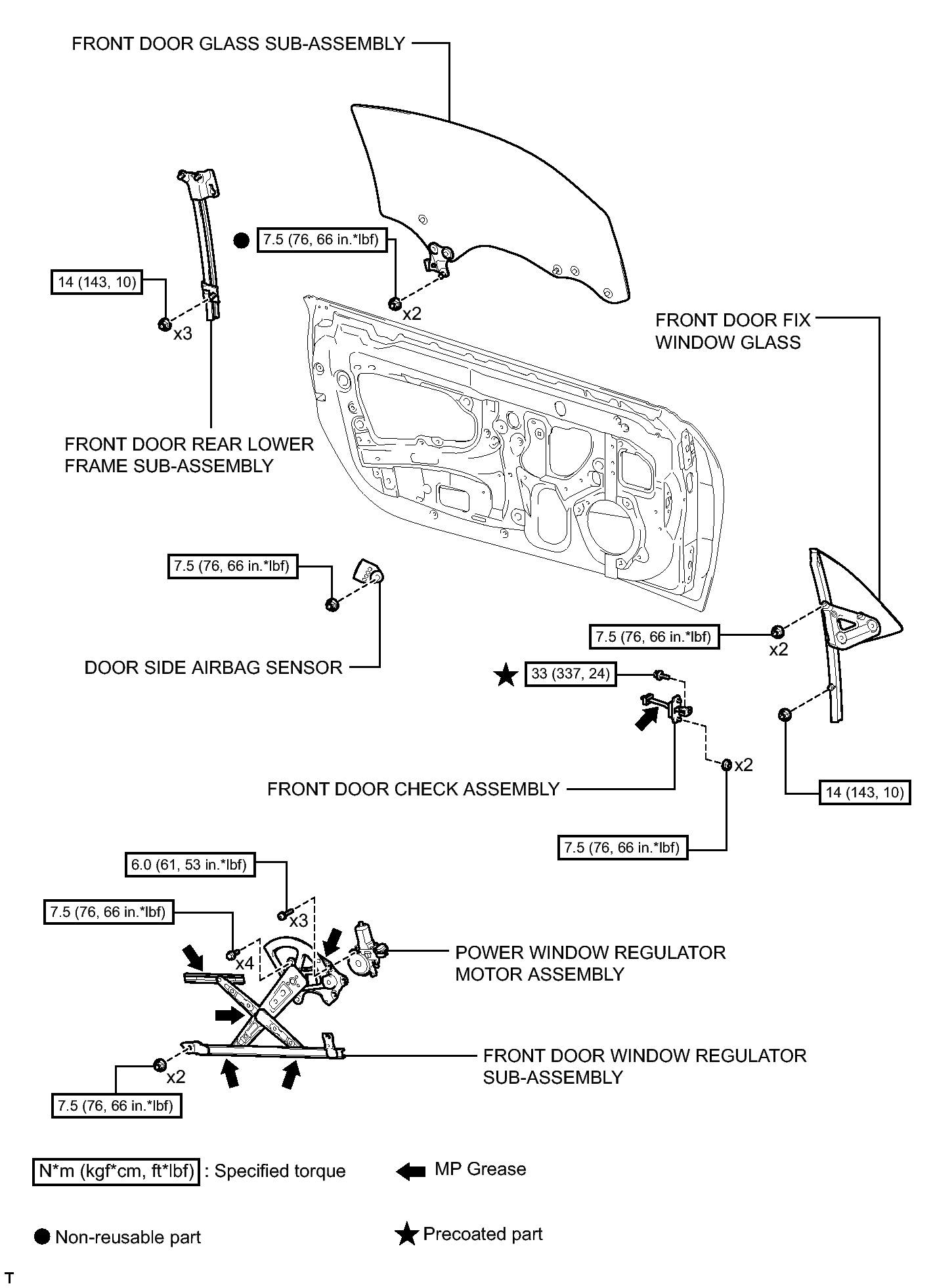

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [12/2013 - ] (3 Of 5)
GTY422250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Door Replacement Components With Torque Specifications [12/2013 - ] (4 Of 5)
GTY390732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

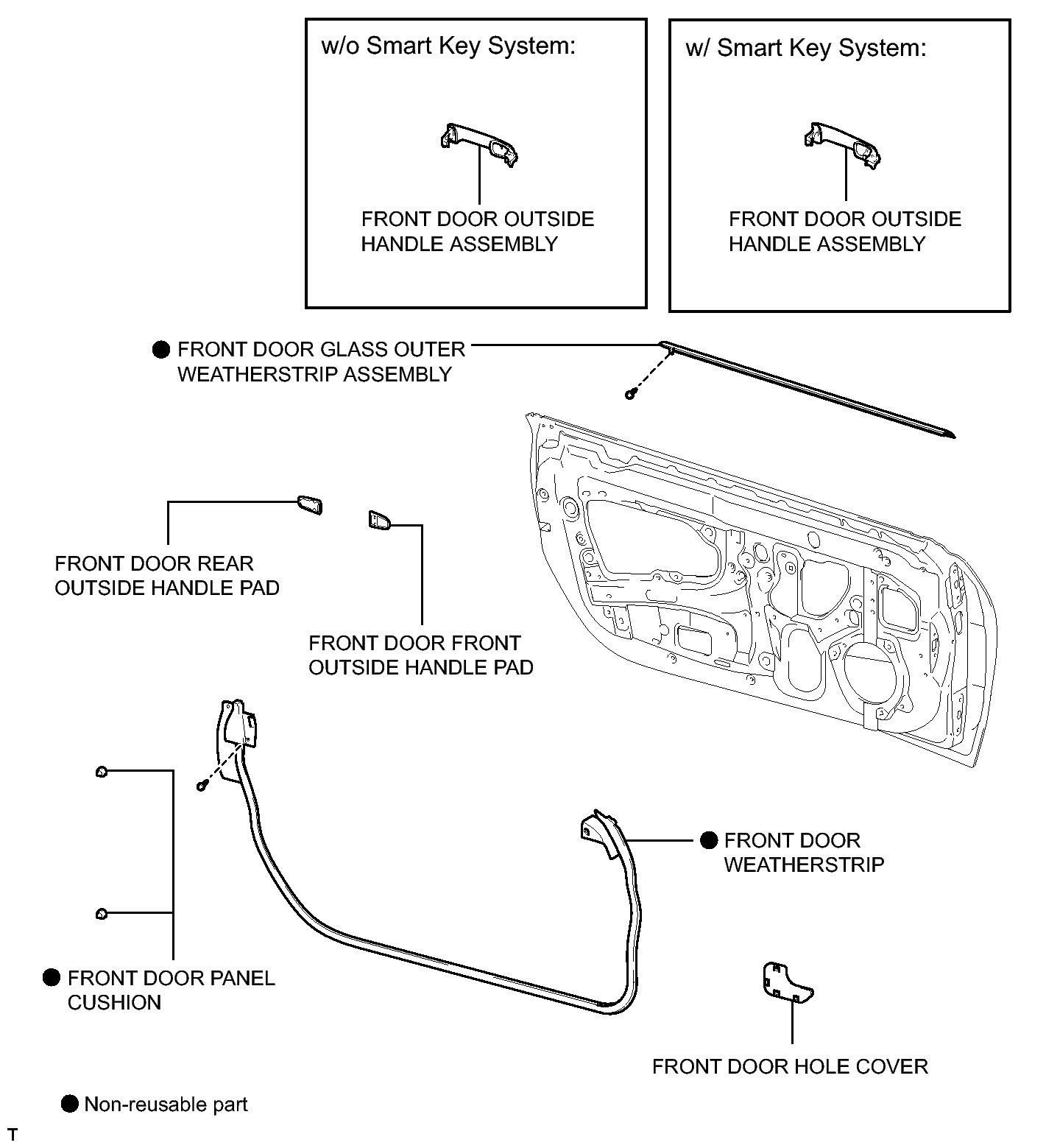

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [12/2013 - ] (5 Of 5)
GTY422907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
