Parts Location [12/2013 - ]: Illustration

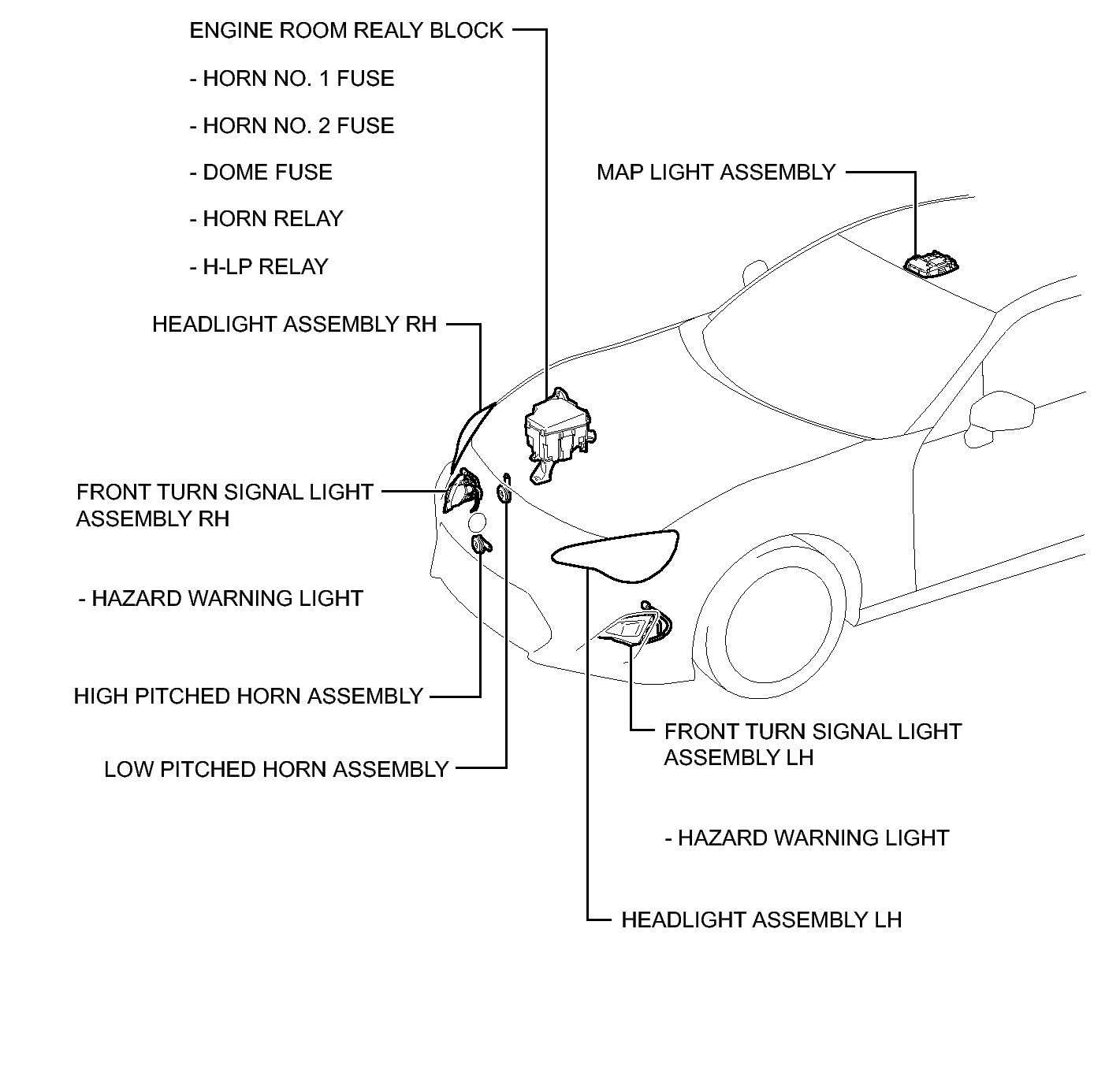

Fig 1: Identifying Theft Deterrent System Components Location (1 Of 2)
GTY388191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

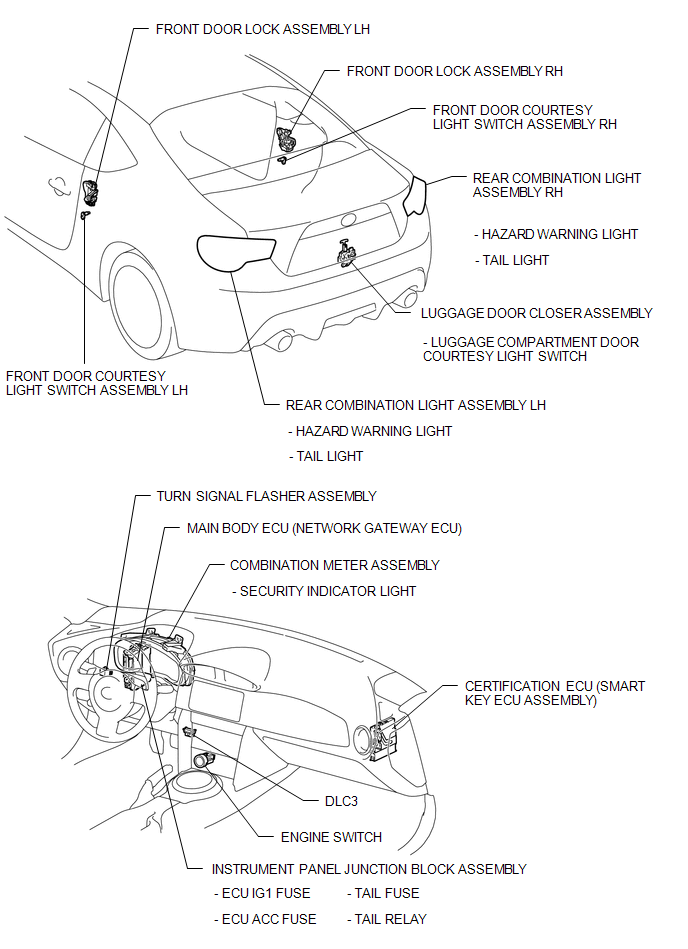

Fig 1: Identifying Theft Deterrent System Components Location (2 Of 2)
GTY388001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
