DTC B1410: Transponder Communication Circuit: Wiring Diagram

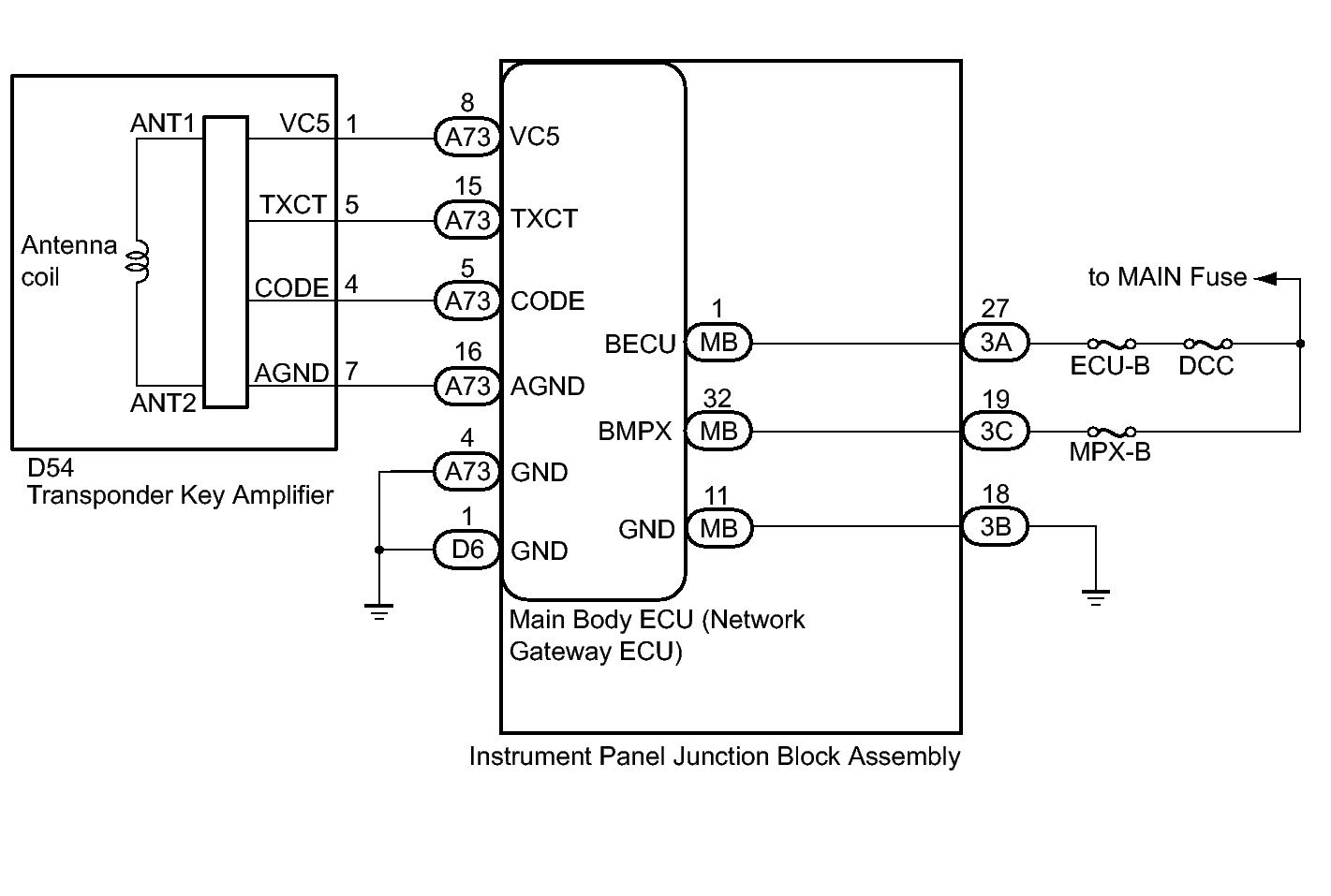

Fig 1: Transponder Communication Circuit Diagram

GTY387148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
