DTC B2784: Antenna Coil Open / Short: Wiring Diagram

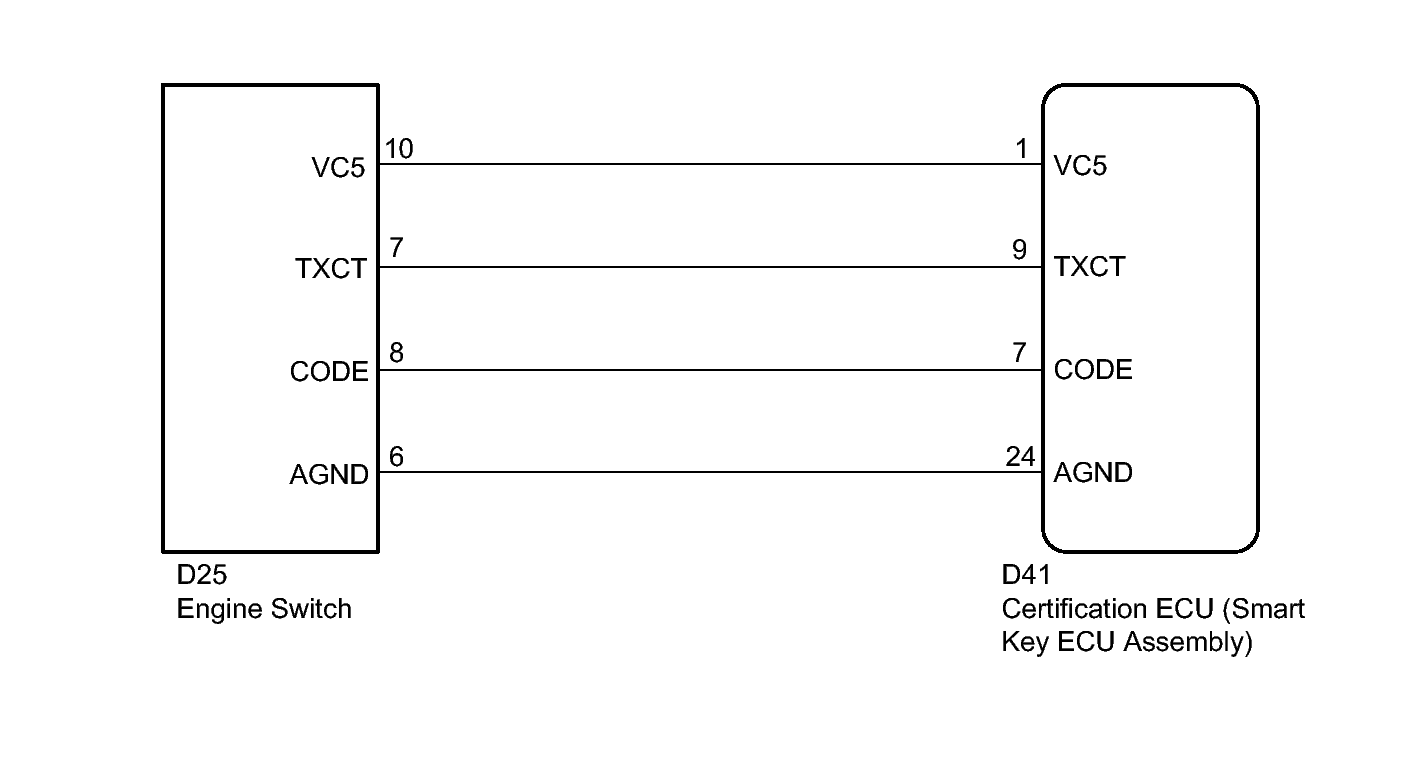

Fig 1: Antenna Coil System Diagram

GTY388673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
