System Diagram [07/2013 - ]

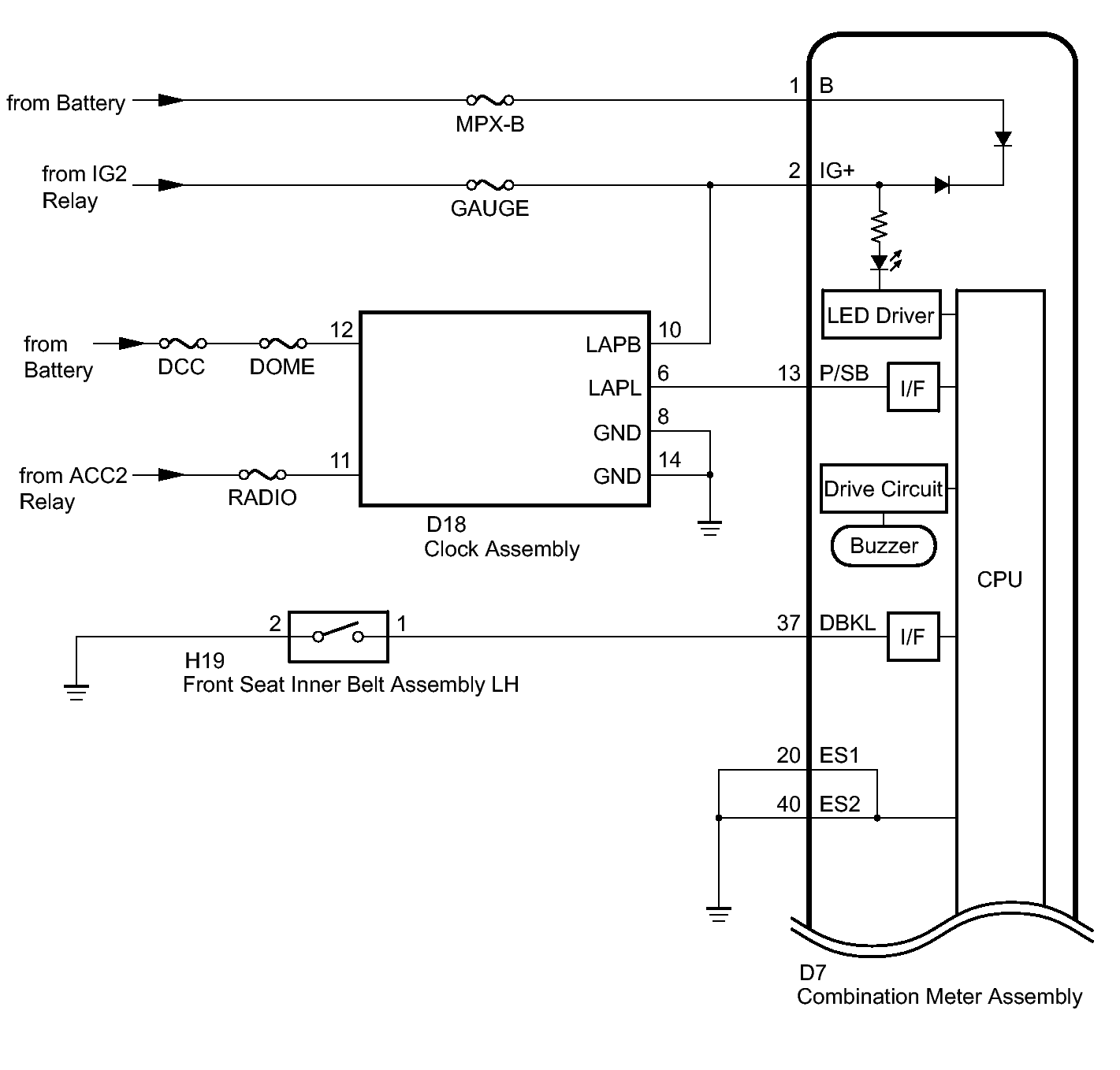

Fig 1: Identifying Seat Belt Warning System Wiring Diagram (1 Of 2)
GTY391890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

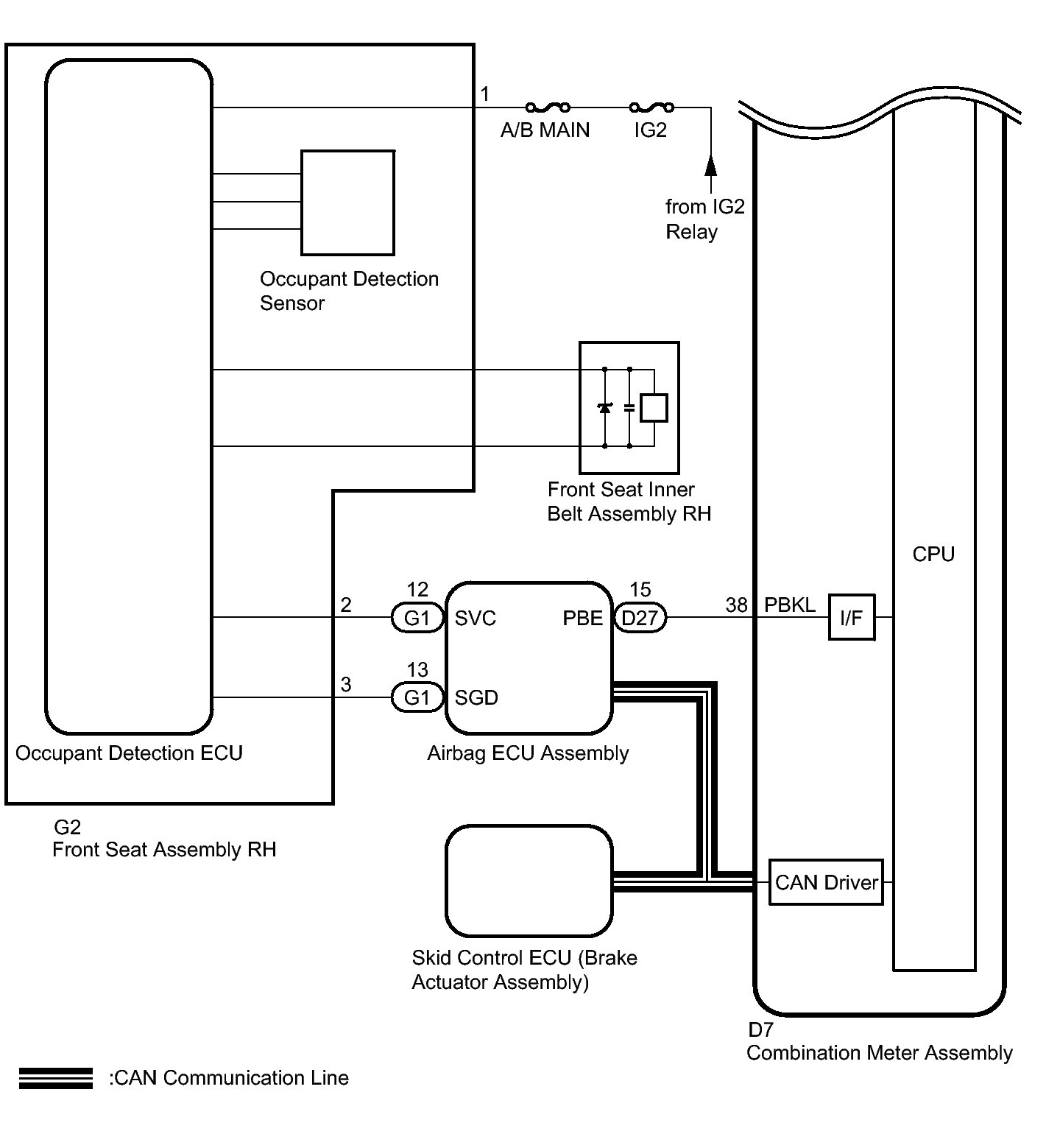

Fig 2: Identifying Seat Belt Warning System Wiring Diagram (2 Of 2)
GTY385814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Communication Method
Airbag ECU assembly Combination meter assembly Occupant detection CAN
Skid control ECU Combination meter assembly Vehicle speed
