Parts Location [07/2013 - 12/2013]: Illustration

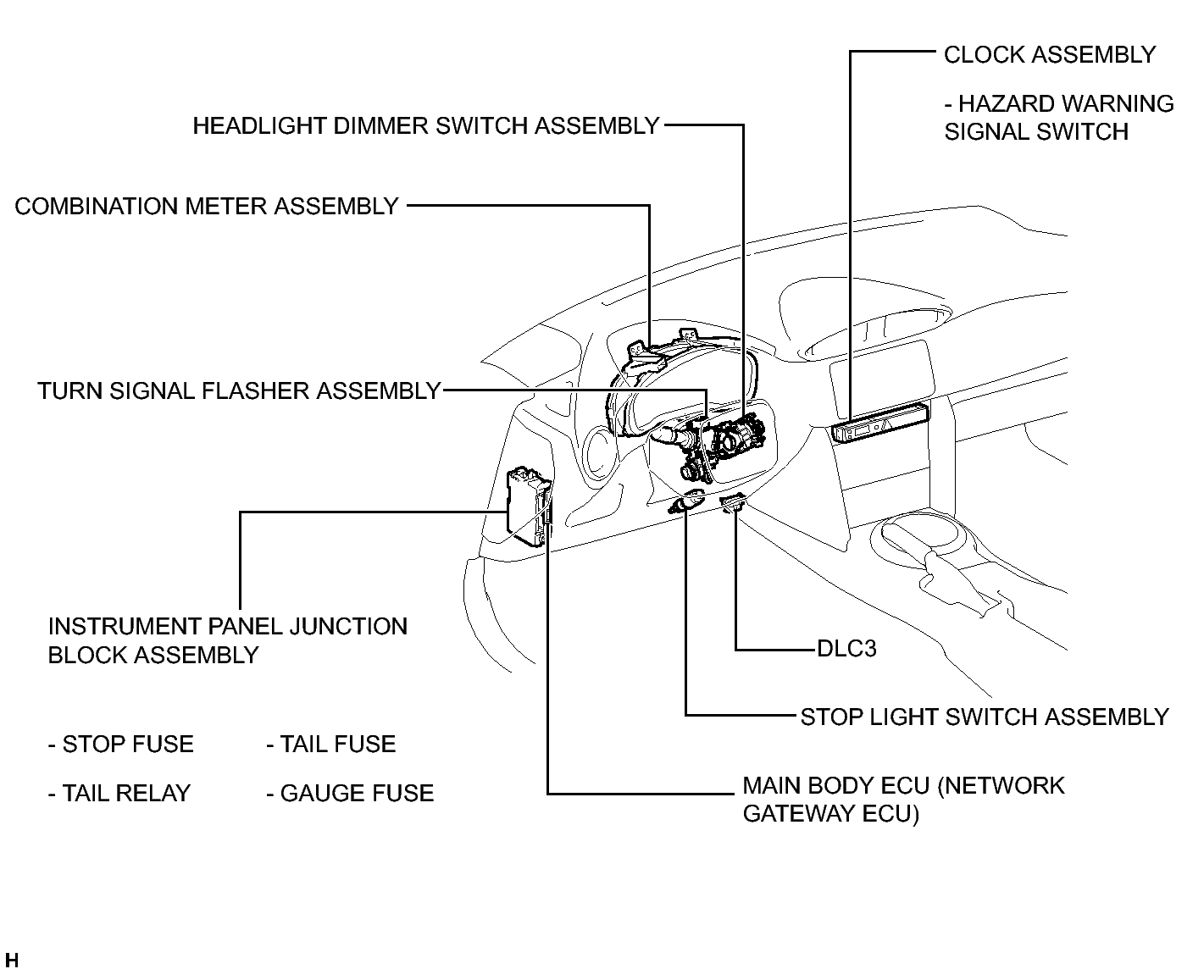

Fig 1: Identifying Lighting System Components Location (1 Of 3)
GTY389271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

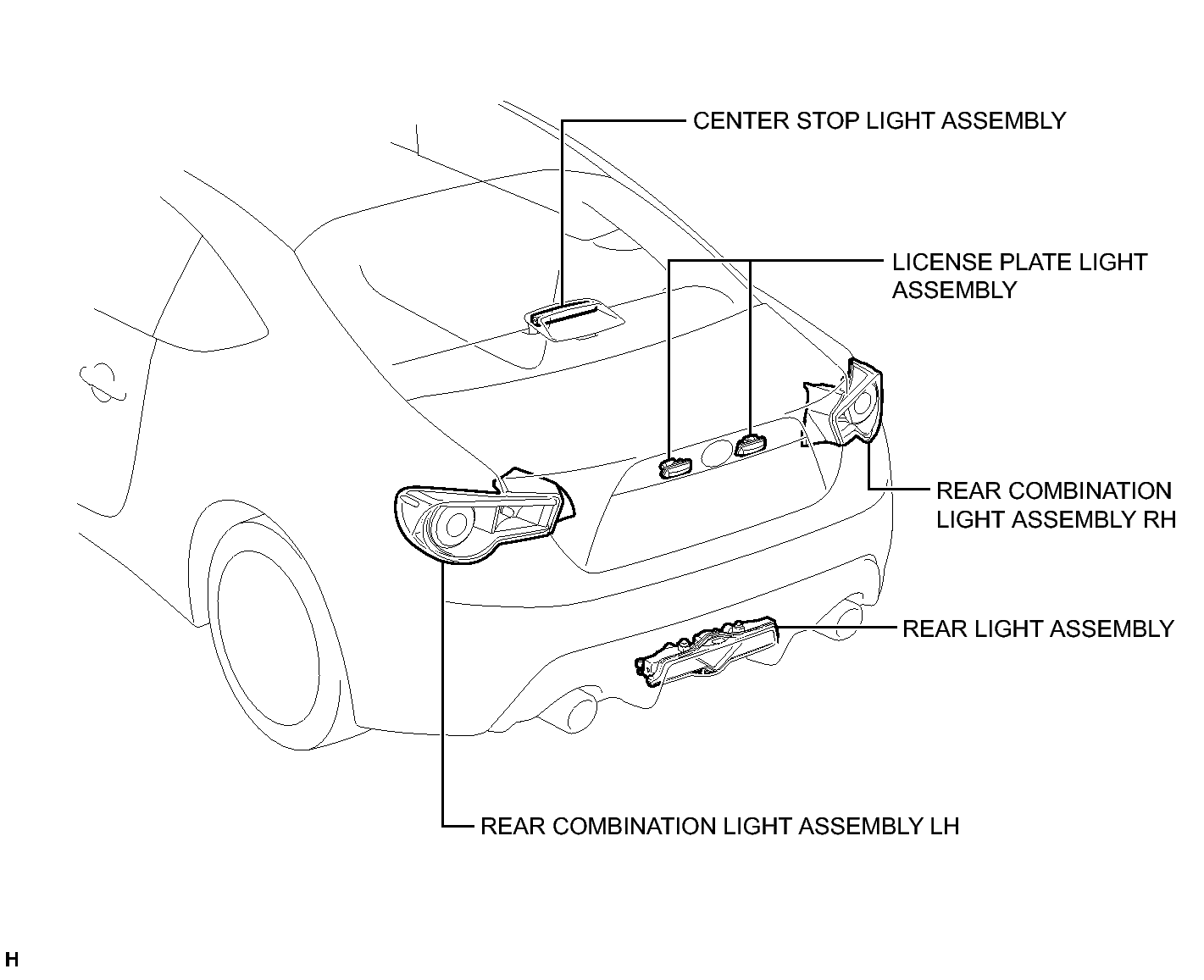

Fig 1: Identifying Lighting System Components Location (2 Of 3)
GTY392290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

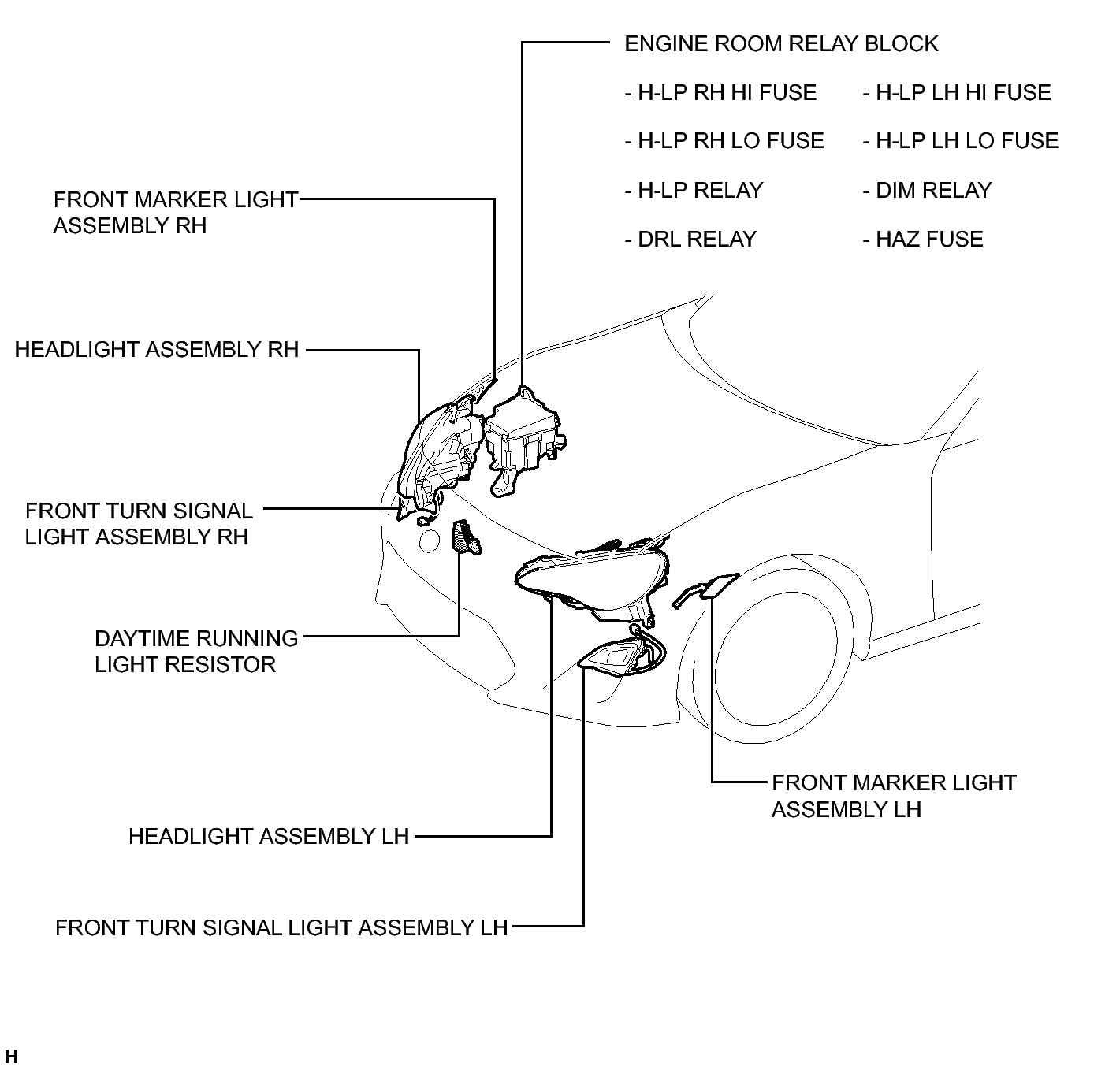

Fig 1: Identifying Lighting System Components Location (3 Of 3)
GTY385052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
