Headlight Dimmer Switch Circuit [07/2013 - 12/2013]: Wiring Diagram

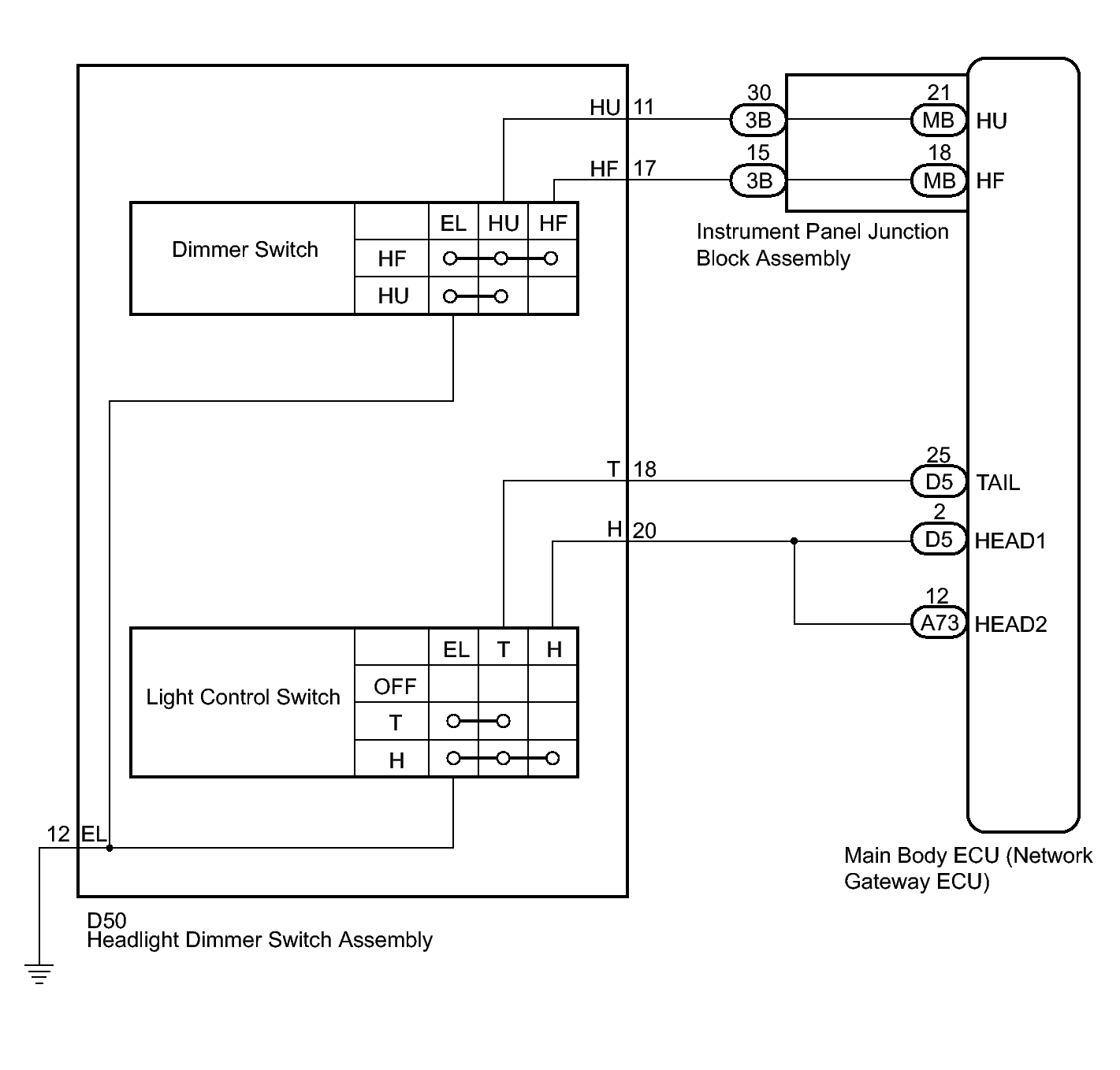

Fig 1: Headlight Dimmer Switch Wiring Diagram

GTY421286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
