Parts Location [12/2013 - ]: Illustration

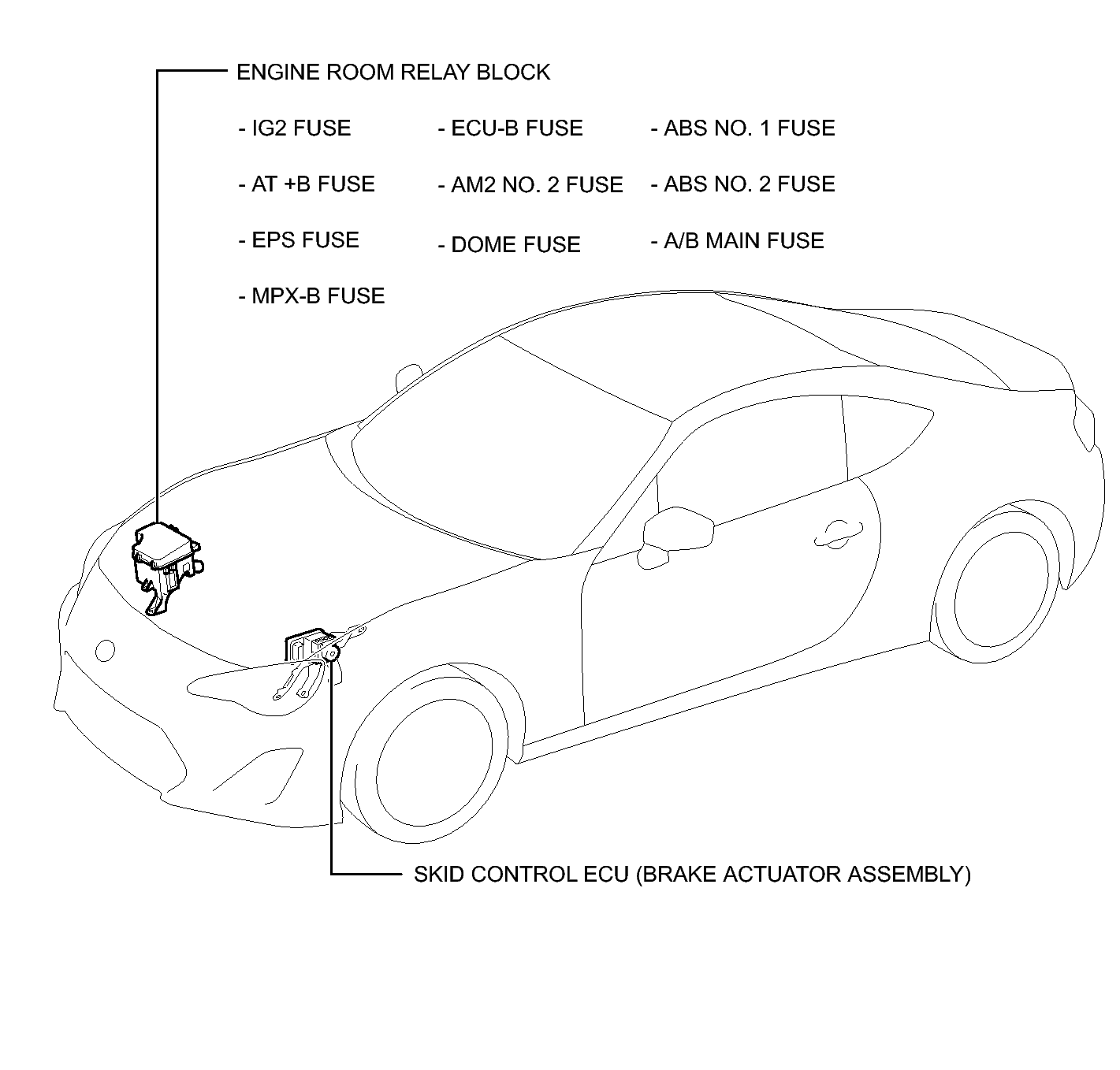

Fig 1: Can Communication System Components Location (1 Of 2)
GTY385747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

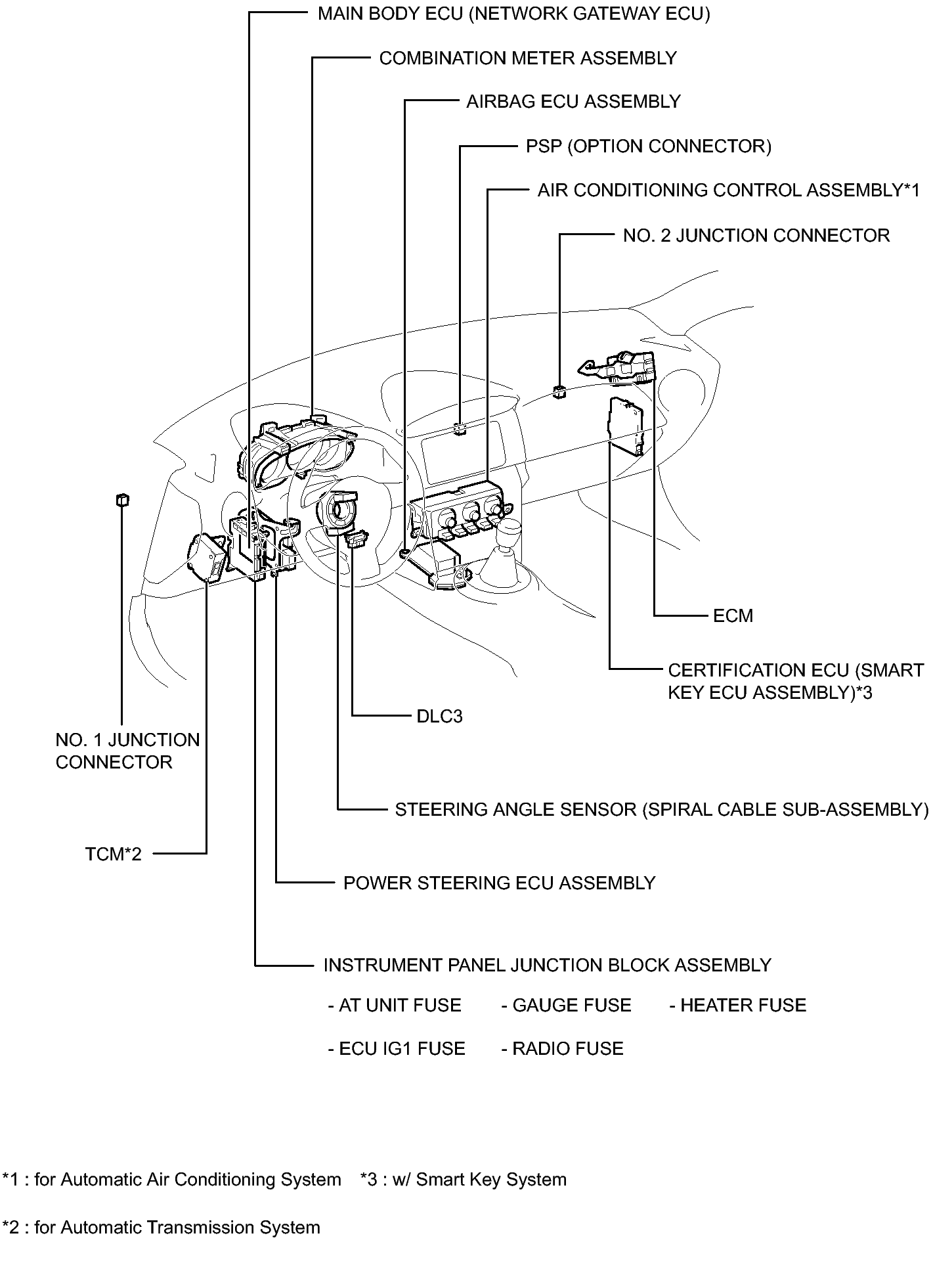

Fig 1: Can Communication System Components Location (2 Of 2)
GTY422240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
