Parts Location [07/2013 - 12/2013]: Illustration

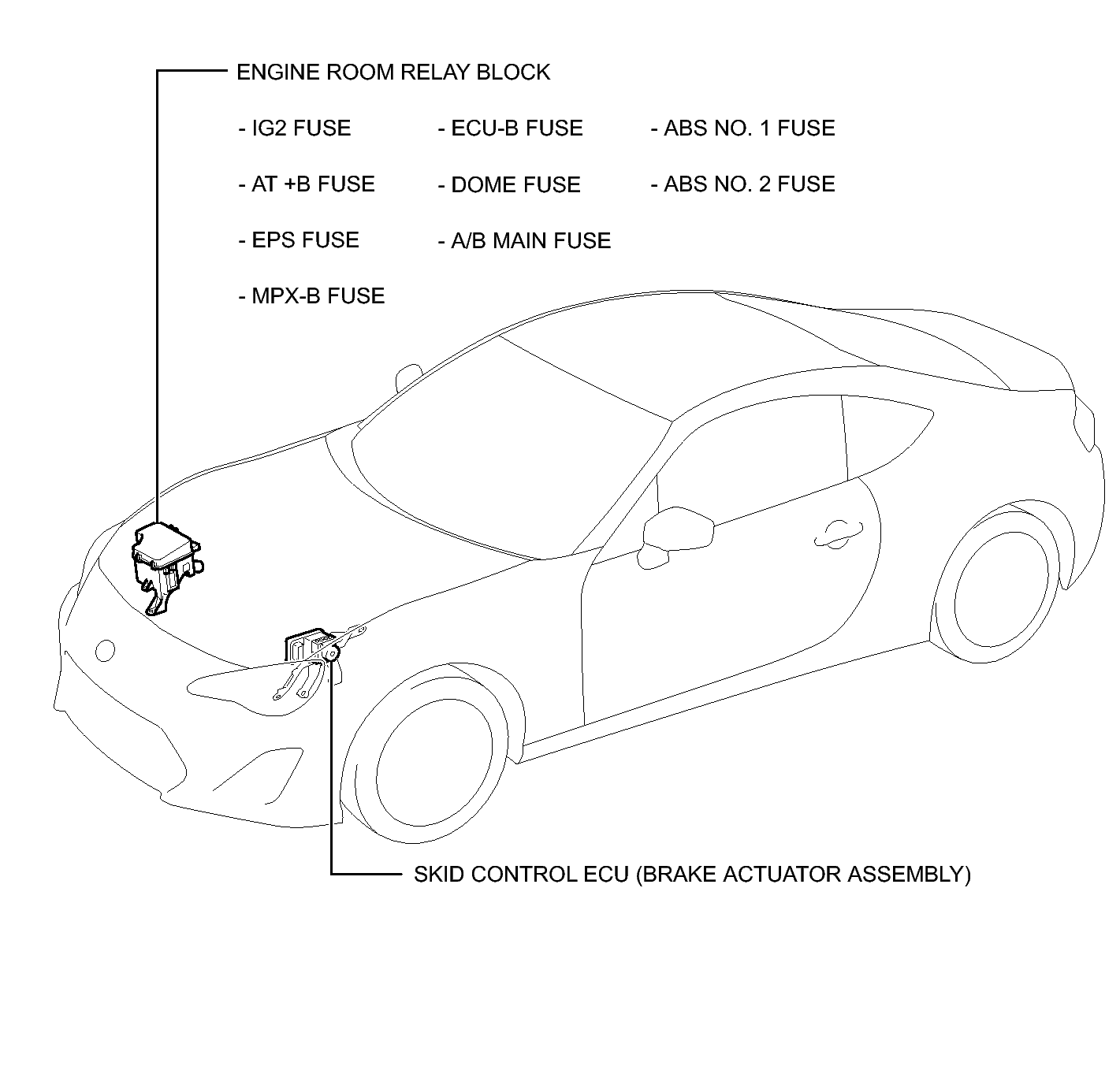

Fig 1: Can Communication System Components Location (1 Of 2)
GTY385749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

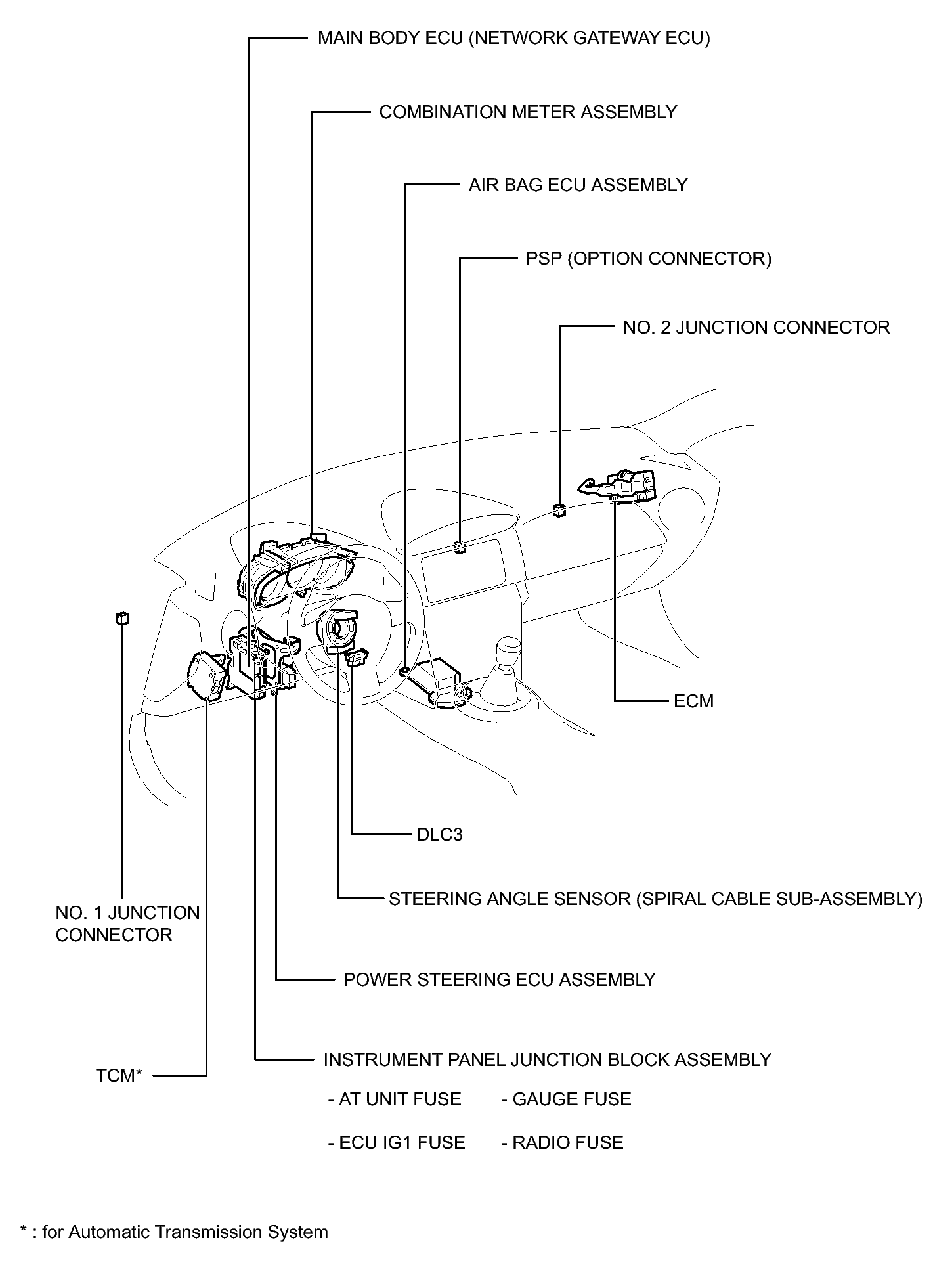

Fig 1: Can Communication System Components Location (2 Of 2)
GTY388399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
