Removal [12/2013 - ]

  1. REMOVE REAR BUMPER COVER

    Refer to REMOVAL [07/2013 - ]

  2. REMOVE ELECTRICAL KEY ANTENNA
    1. Disconnect the connector.

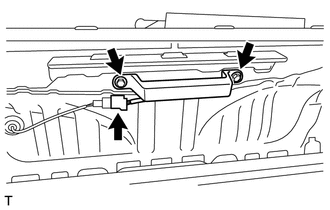

      Fig 1: Locating Electrical Key Antenna Screws And Connector
      GTY386891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and electrical key antenna.
