Parts Location [07/2013 - ]: Illustration

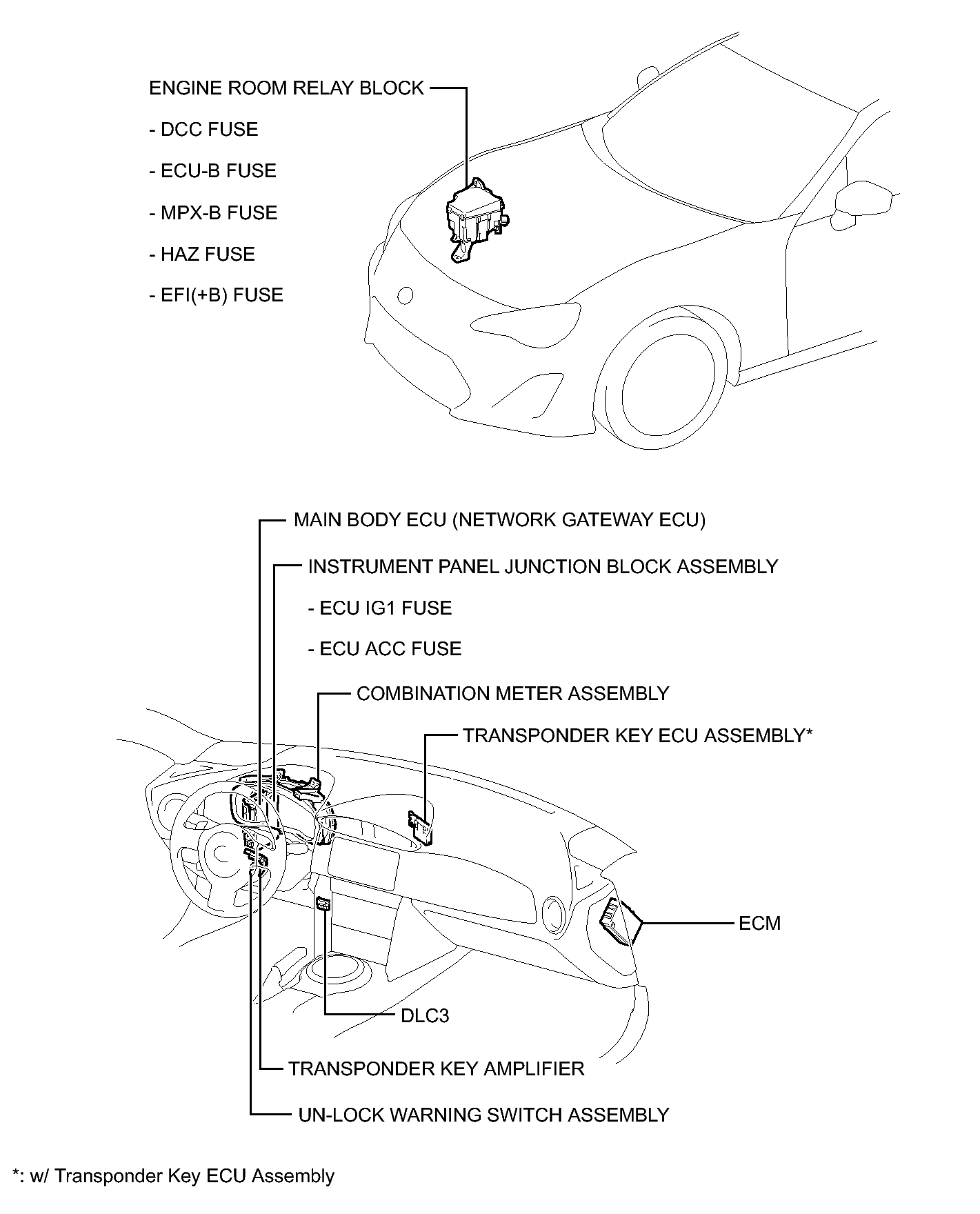

Fig 1: Engine Immobiliser System (W/O Smart Key System) Replacement Components

GTY389545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
