Rear Coil Spring: Components: Illustration

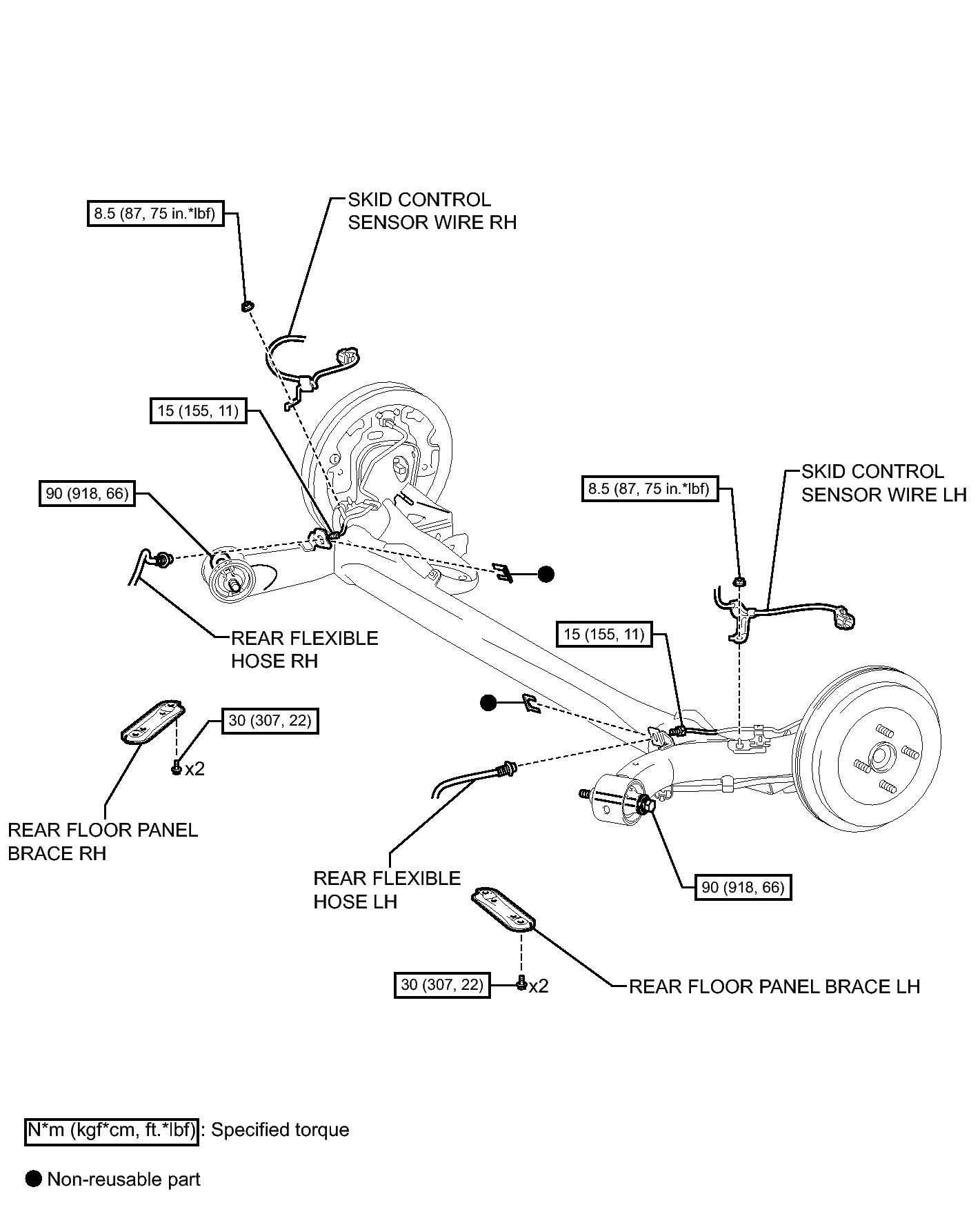

Fig 1: Identifying Rear Coil Spring Replacement Components With Torque Specifications (1 Of 2)
GTY393000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

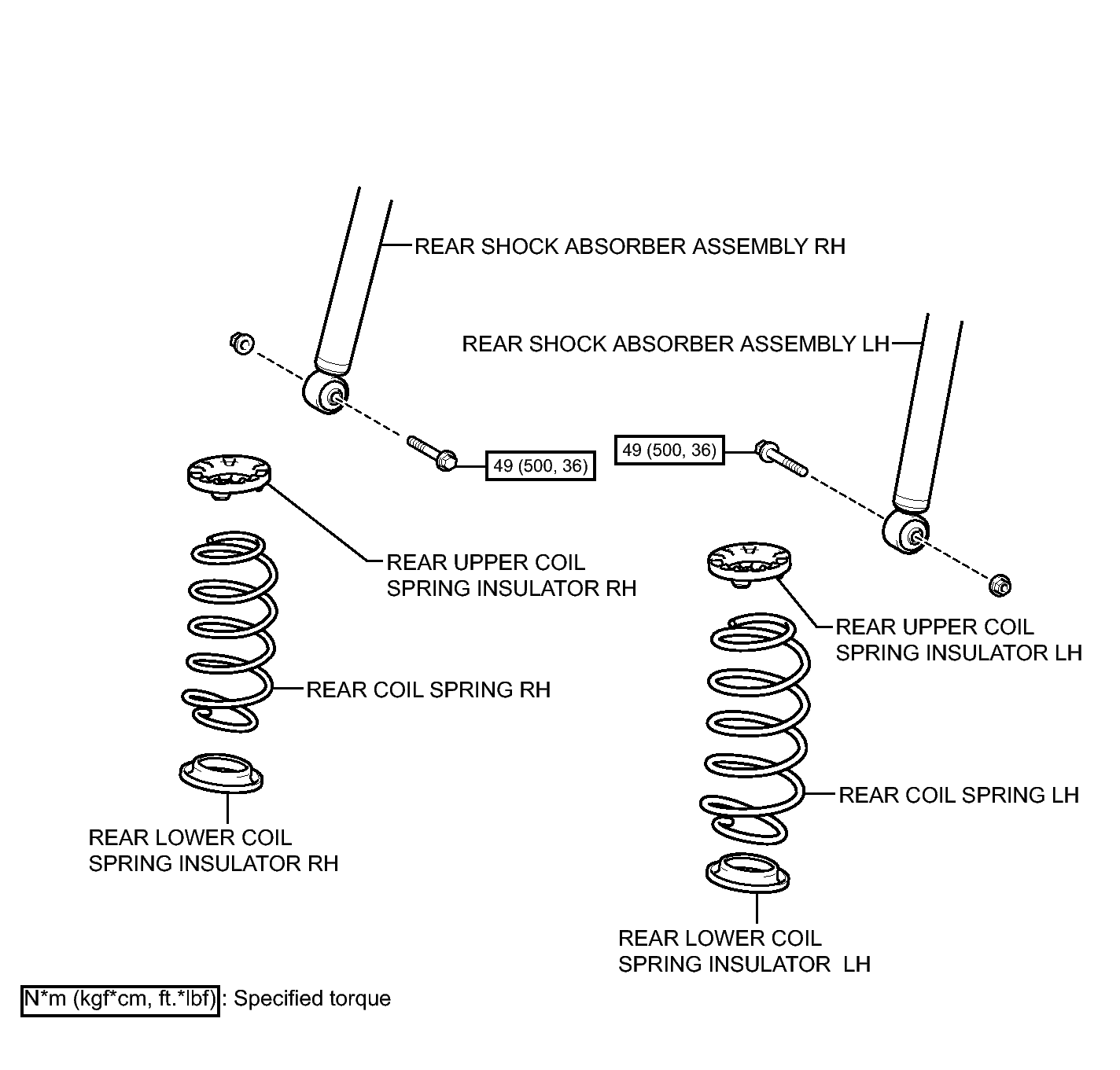

Fig 1: Identifying Rear Coil Spring Replacement Components With Torque Specifications (2 Of 2)
GTY385390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
