DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Wiring Diagram

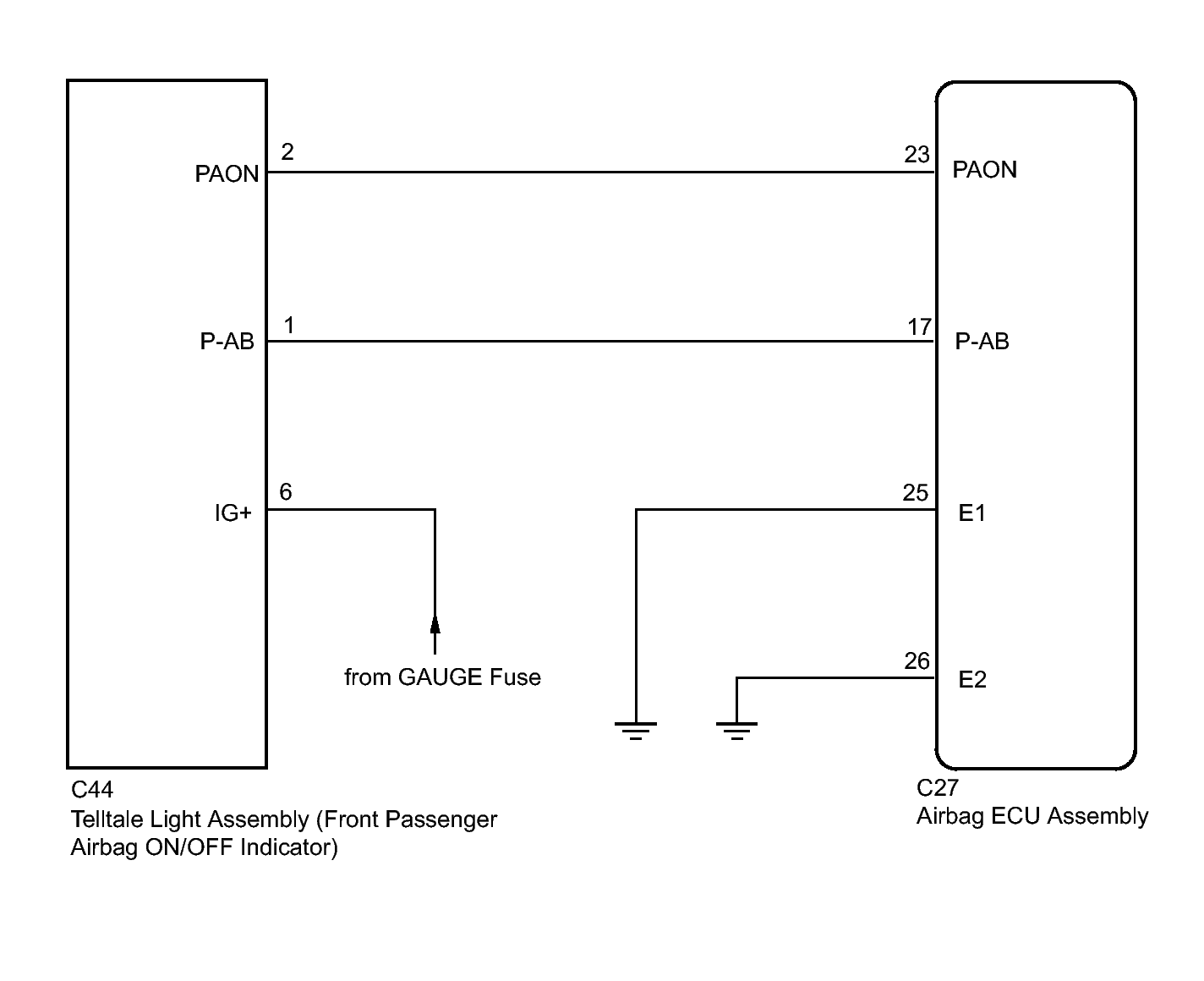

Fig 1: Telltale Light Assembly (Front Passenger Airbag ON/OFF Indicator) Wiring Diagram
GTY391939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
