DTC B1623/81: Side Airbag Sensor Assembly RH Initialization Incomplete: Wiring Diagram

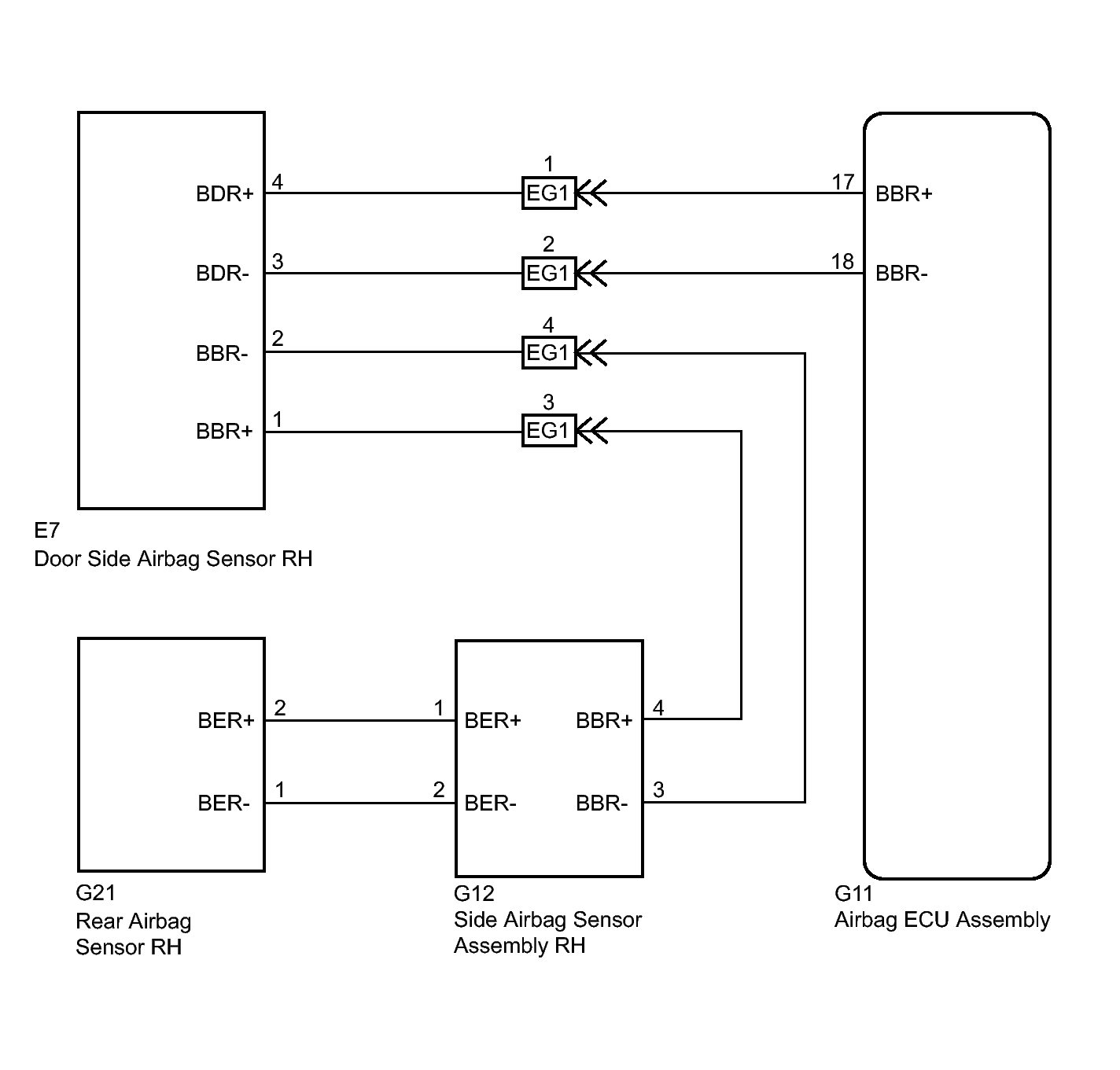

Fig 1: Side Airbag Sensor Assembly RH Wiring Diagram

GTY389308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
