DTC P324E-788: MG-ECU Power Relay Intermittent Circuit: Wiring Diagram

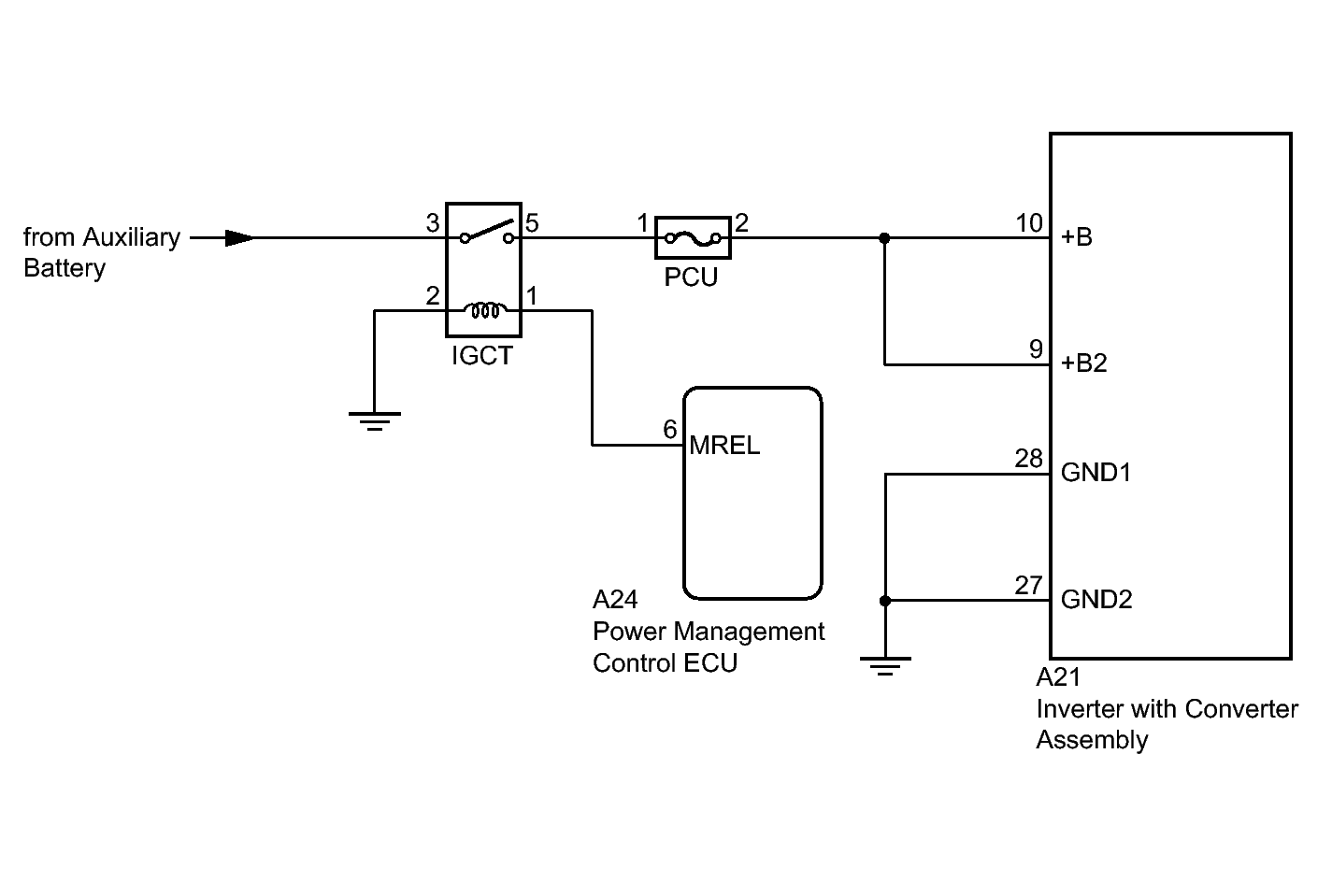

Fig 1: Inverter With Converter Assembly Wiring Diagram

GTY385214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
