DTC U029A-123: Lost Communication with EV Battery Pack Sensor Module: Wiring Diagram

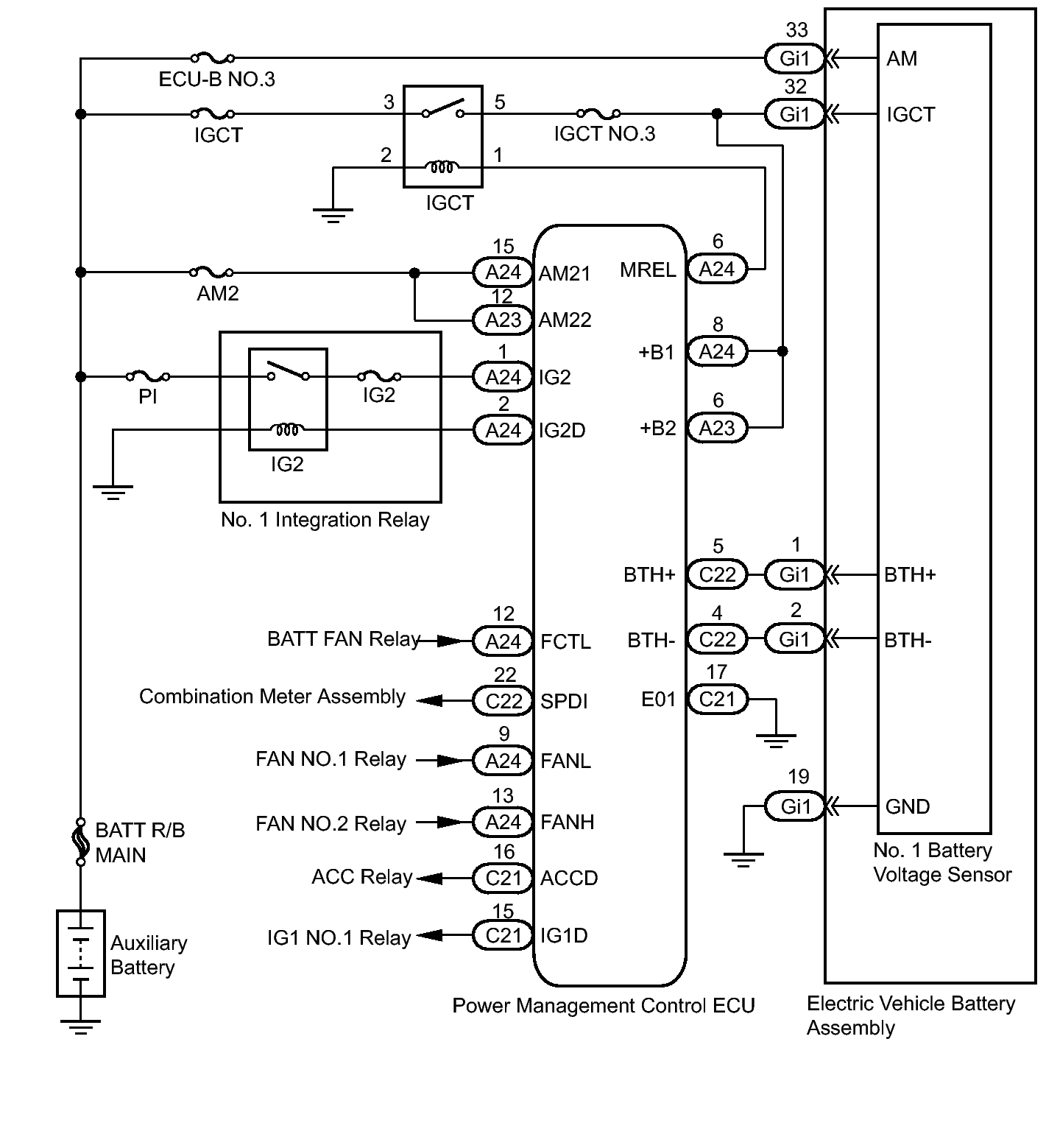

Fig 1: Electric Vehicle Battery Assembly (No. 1 Battery Voltage Sensor) Wiring Diagram
GTY388849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
