DTC P31C0-123: EV Battery No. 1 Self-diagnosis Permit Signal Circuit; DTC P31C5-123: EV Battery No. 2 Self-diagnosis Permit Signal Circuit: Wiring Diagram

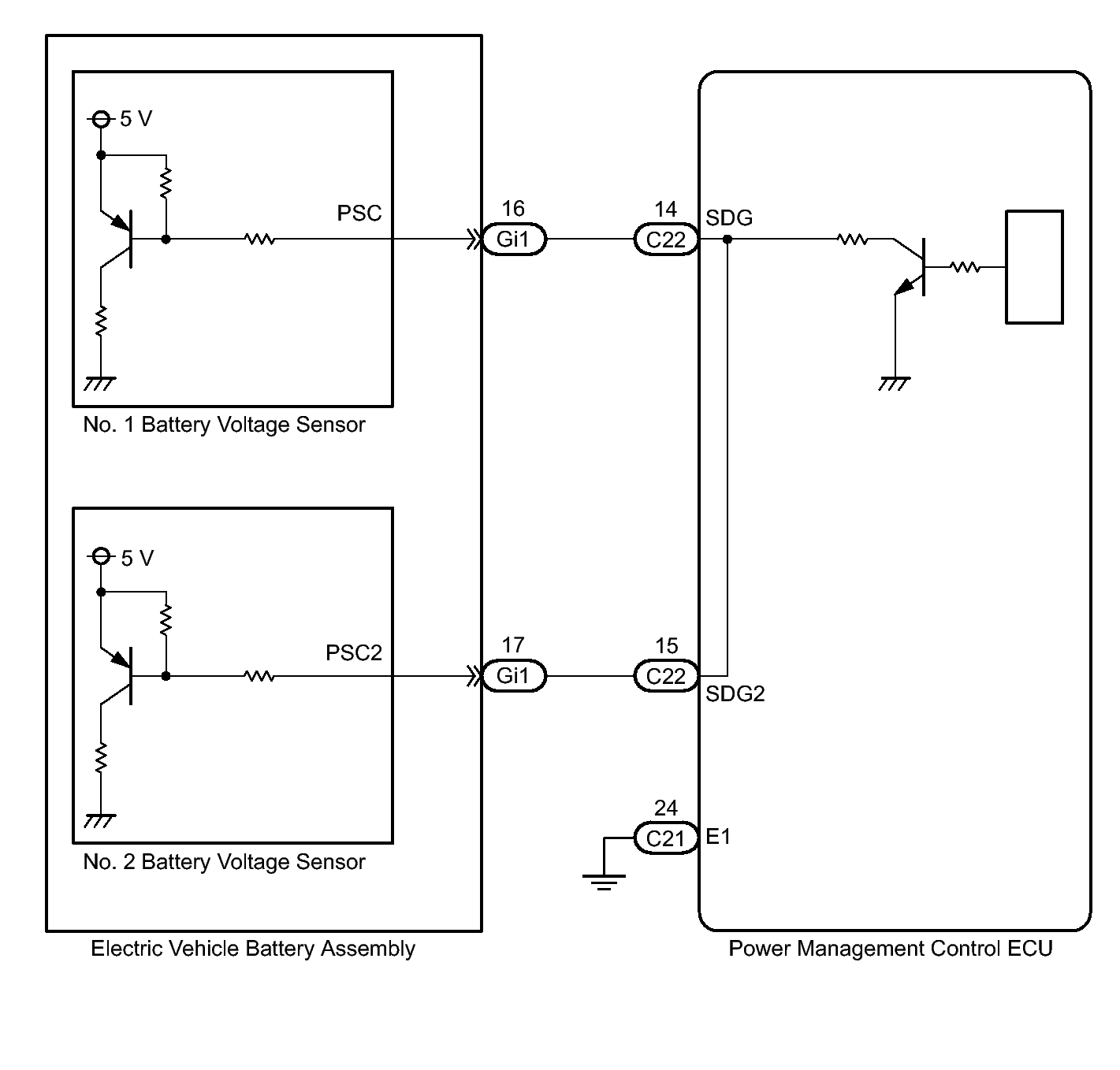

Fig 1: Electric Vehicle Battery Assembly (No. 2 Battery Voltage Sensor) Wiring Diagram
