DTC P300E-123: EV Battery No. 2 Pack Sensor Module: Wiring Diagram

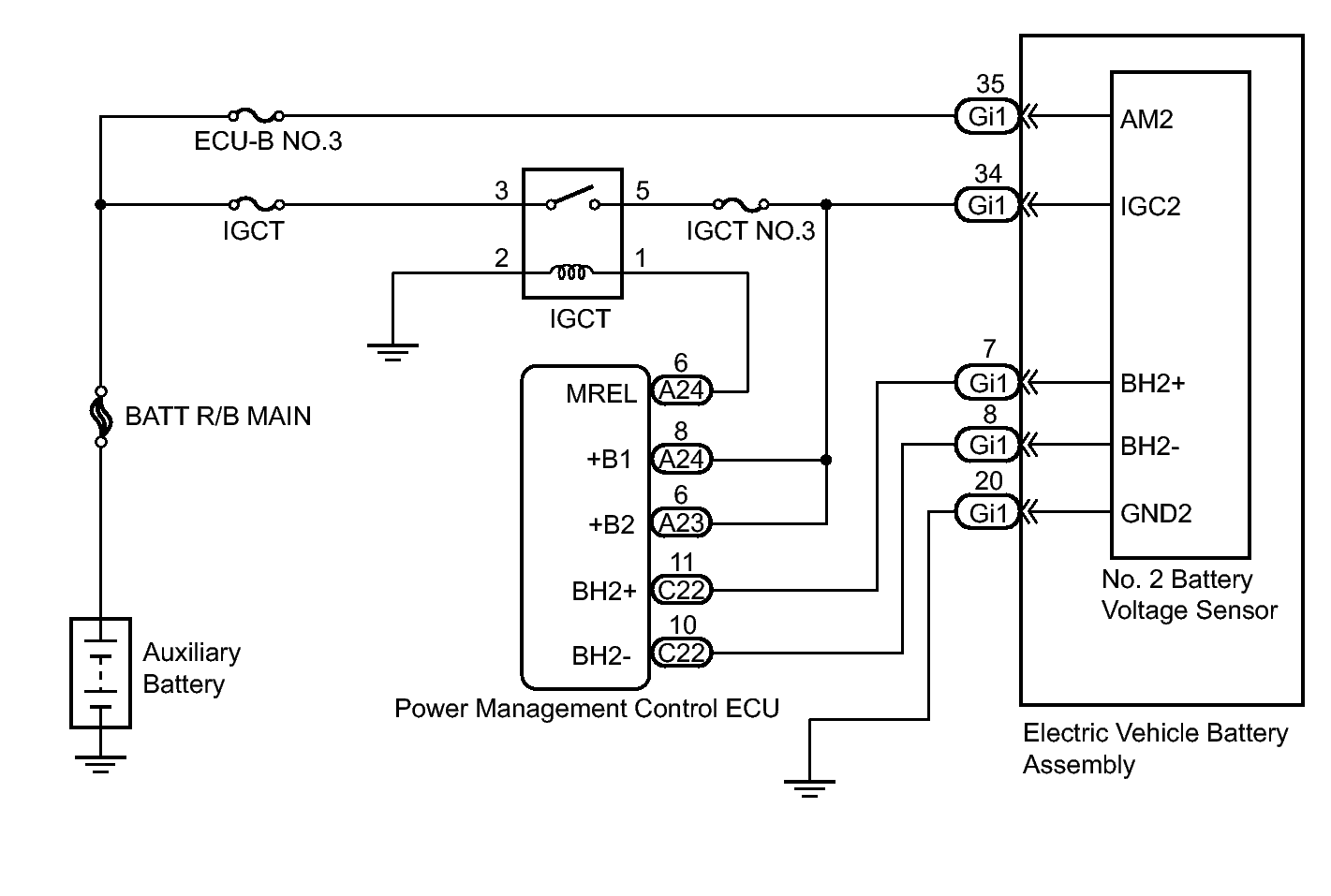

Fig 1: Electric Vehicle Battery Assembly (No. 2 Battery Voltage Sensor) Wiring Diagram
GTY386300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
