DTC P0A84-123: EV Battery No. 1 Pack Cooling Fan 1 Control Circuit Low: Wiring Diagram

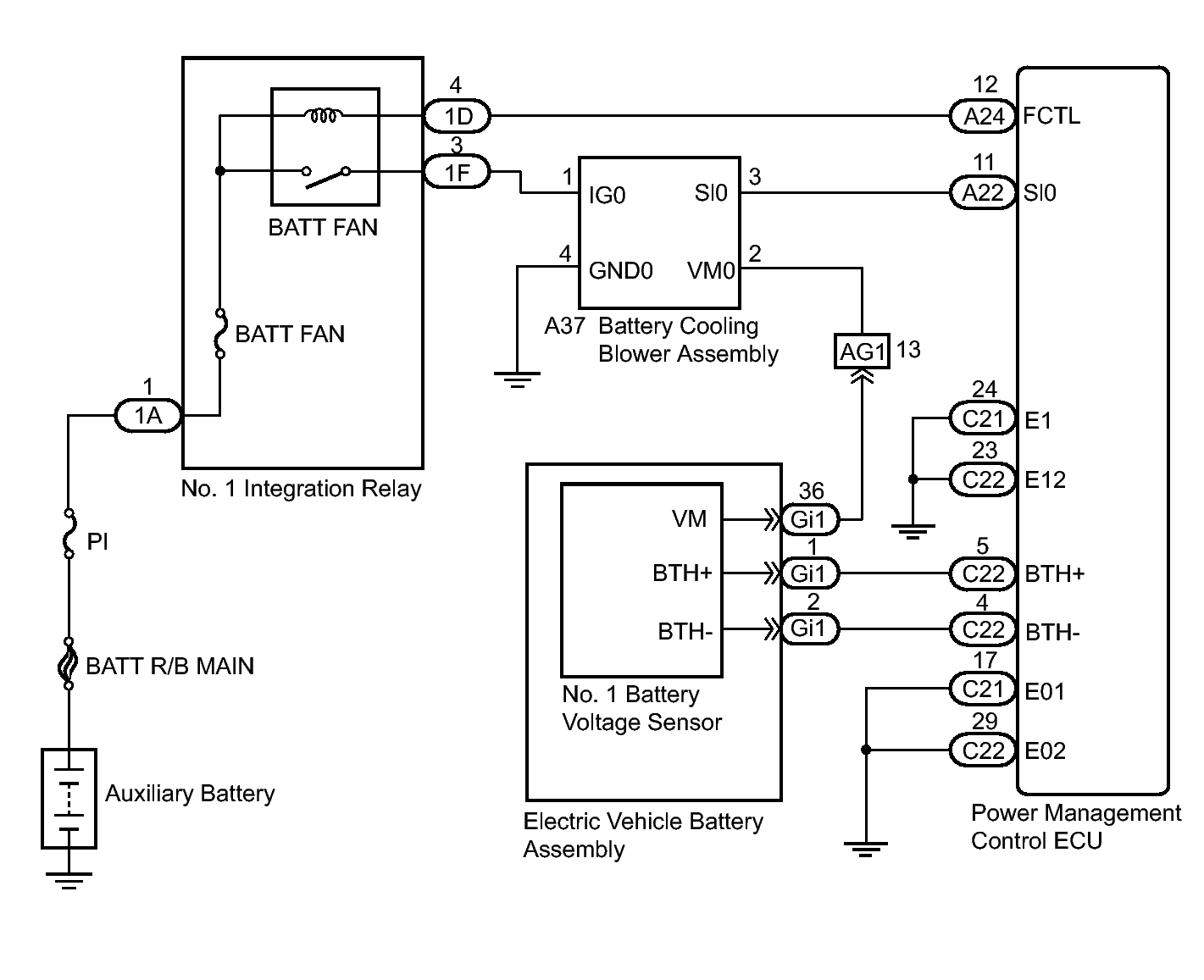

Fig 1: EV Battery Cooling Blower Assembly Control System Wiring Diagram
GTY385855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
