Stop Light, Back-Up Light

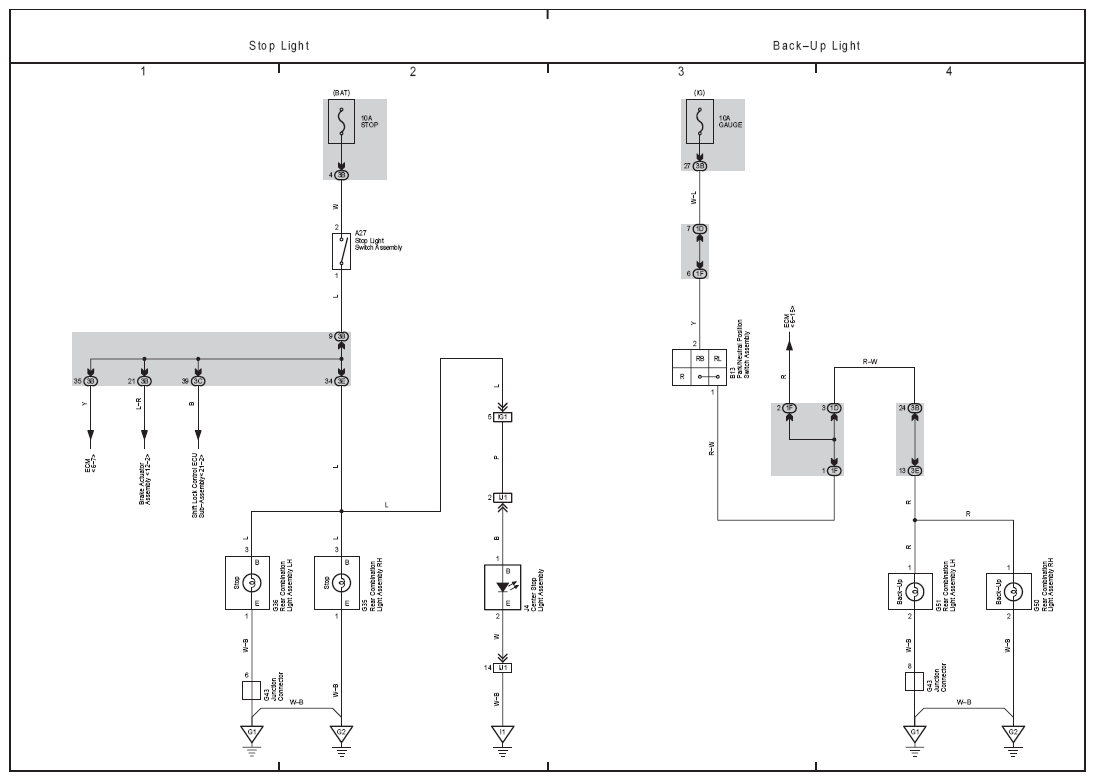

Fig 1: Stop Light And Back-Up Light Wiring Diagram

G08774985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
