Overall Electrical Wiring Diagram: Starting

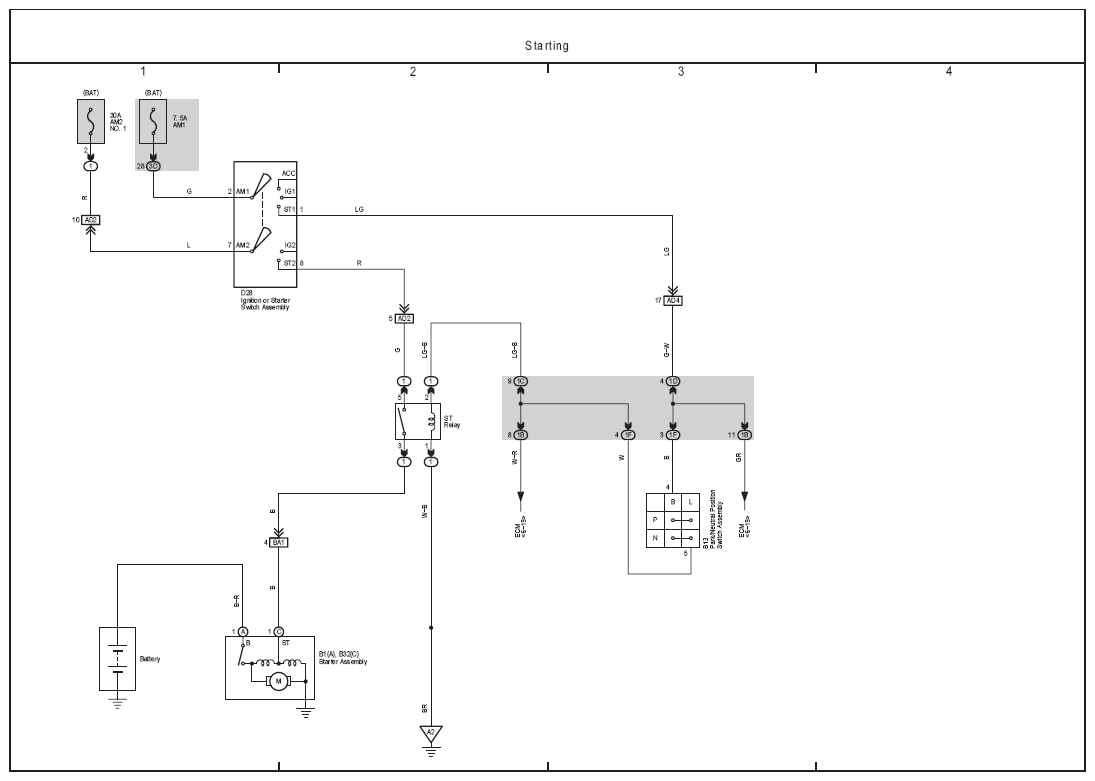

Fig 1: Starting Wiring Diagram

G08774971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
