SRS, Seat Belt Warning

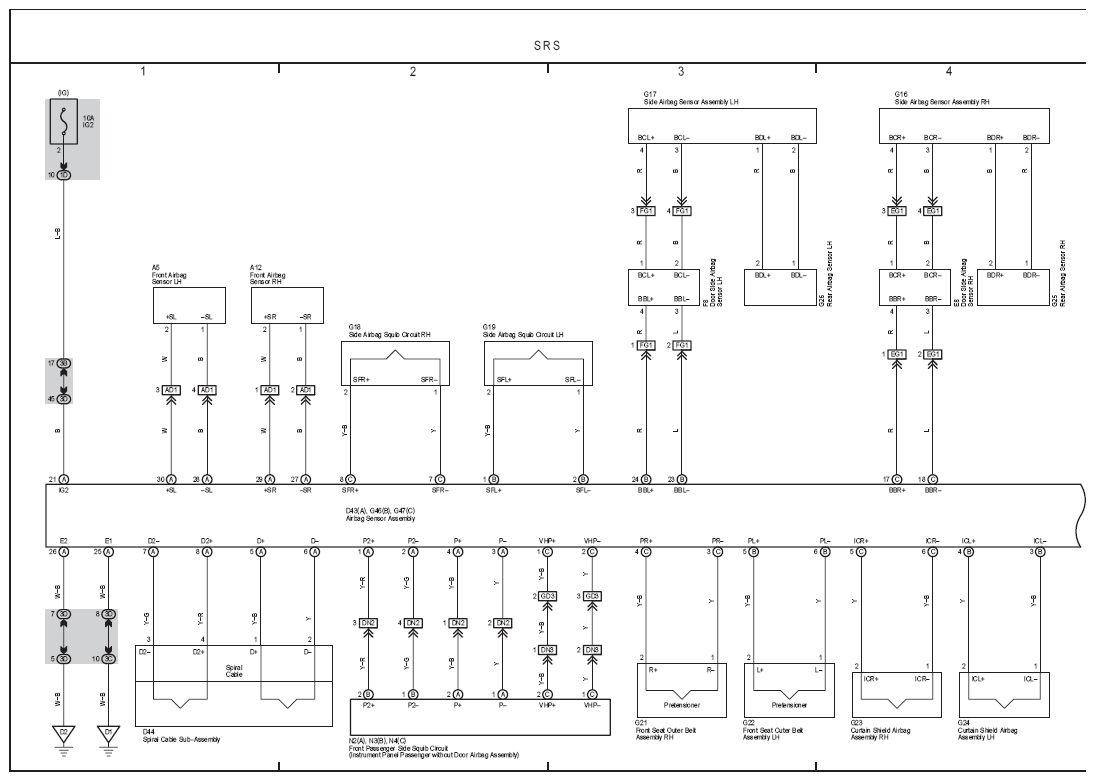

Fig 1: SRS And Seat Belt Warning Wiring Diagram (1 Of 3)
G08774990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

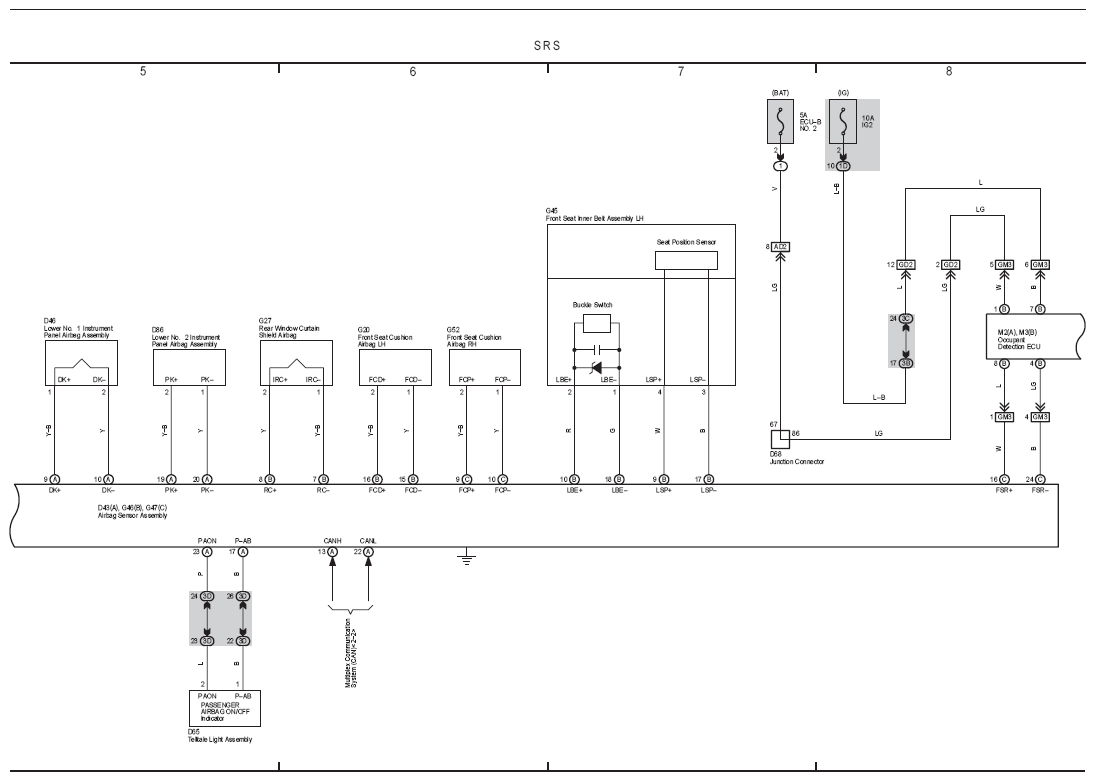

Fig 2: SRS And Seat Belt Warning Wiring Diagram (2 Of 3)
G08774991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

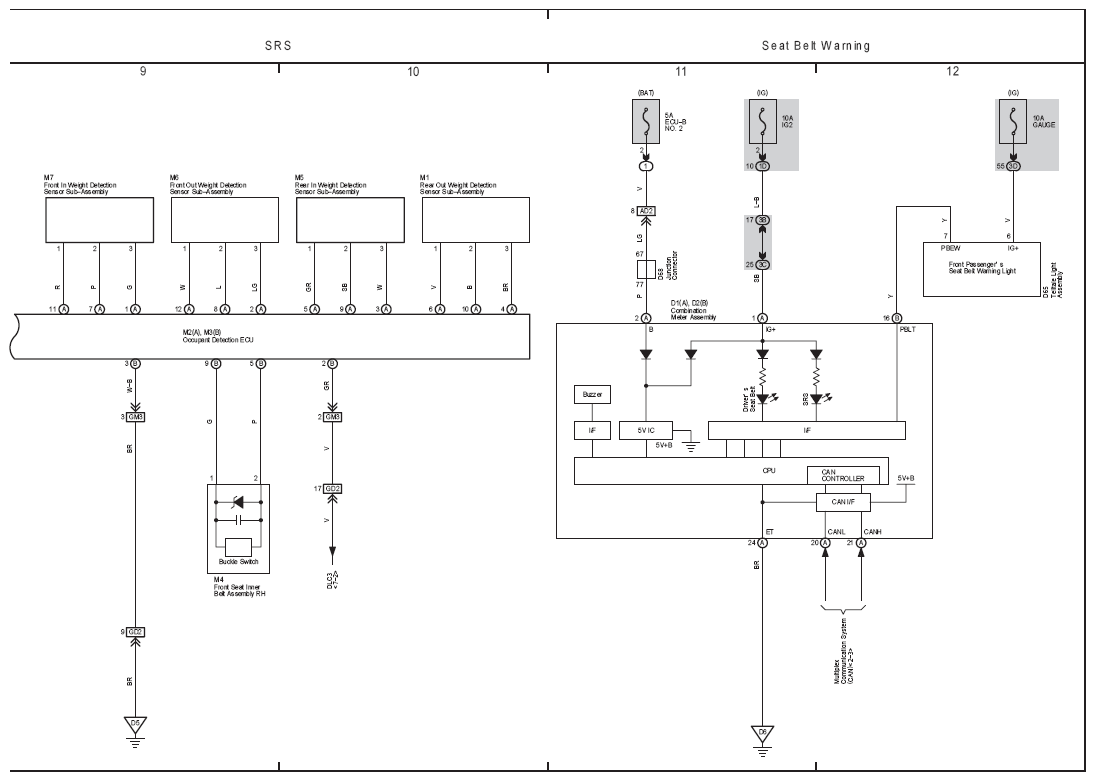

Fig 3: SRS And Seat Belt Warning Wiring Diagram (3 Of 3)
G08774992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
