Rear Wiper And Washer

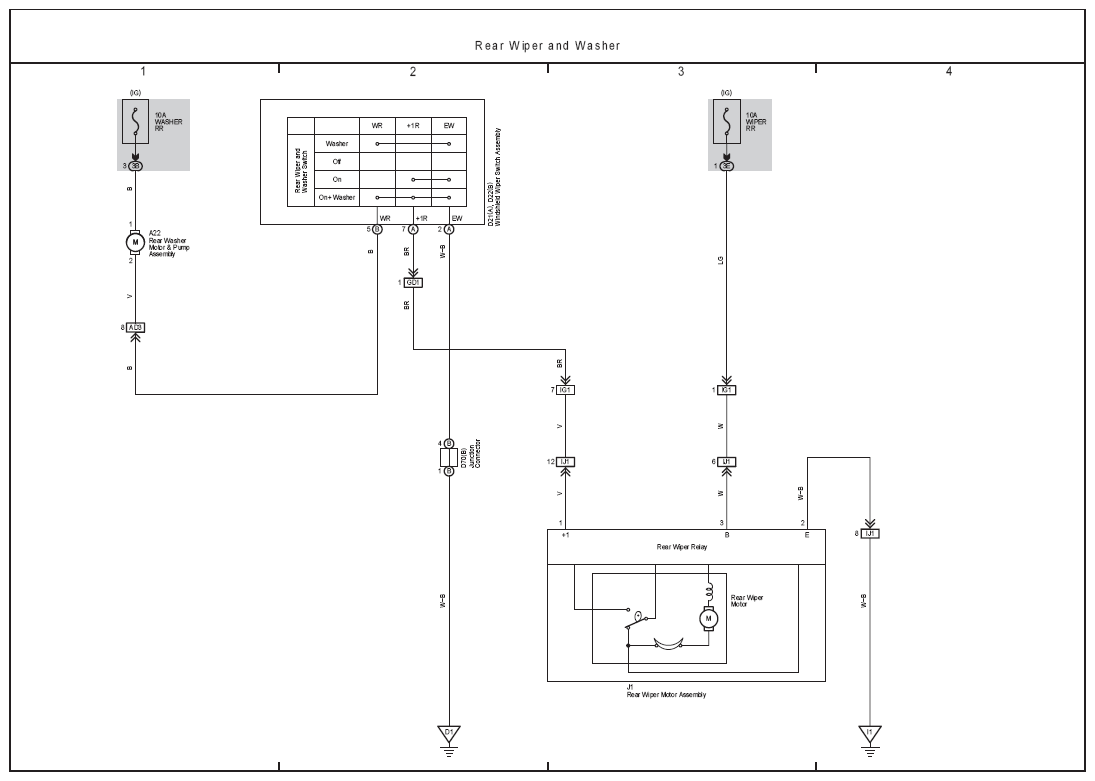

Fig 1: Rear Wiper And Washer Wiring Diagram

G08774995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
