Power Window

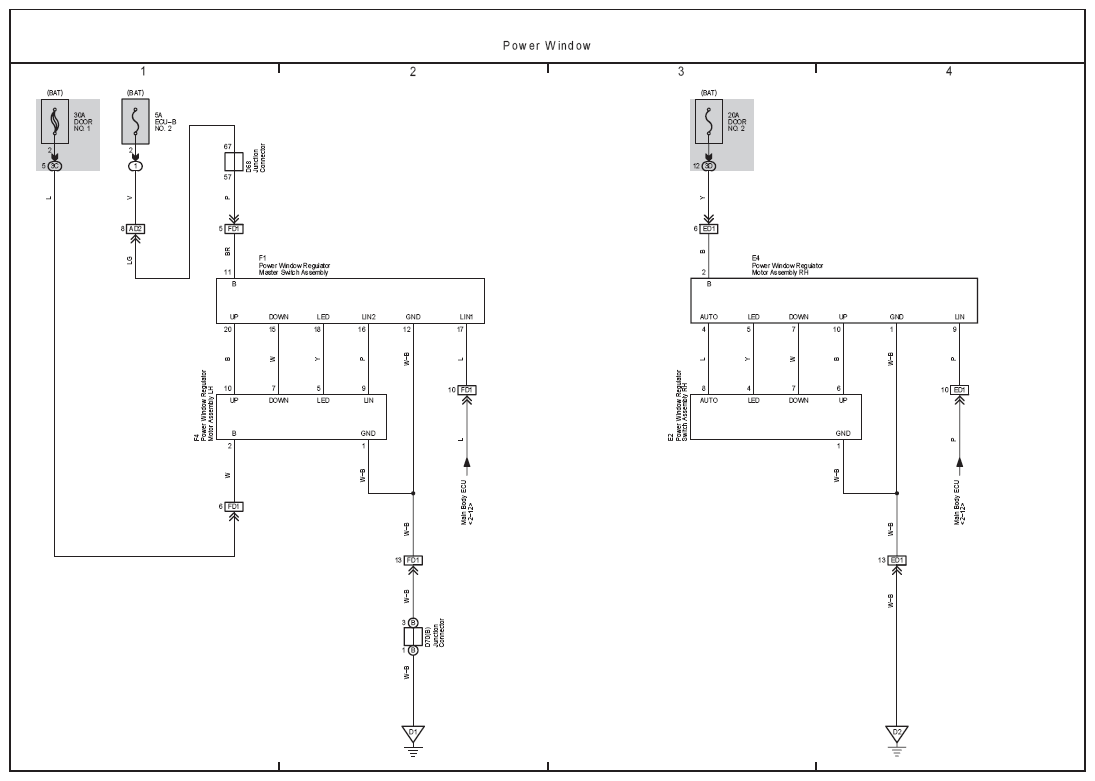

Fig 1: Power Window Wiring Diagram

G08774993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
