Power Outlet, Shift Lock

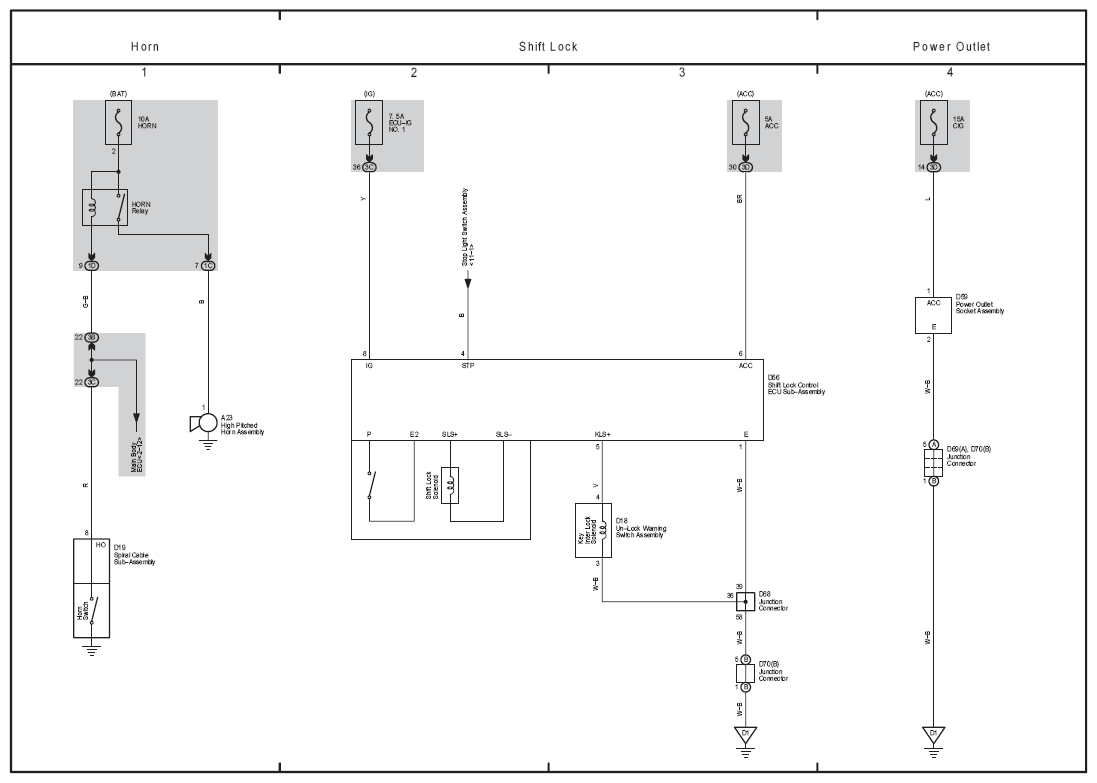

Fig 1: Power Outlet And Shift Lock Wiring Diagram

G08774998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
