Overall Electrical Wiring Diagram
>>
Mirror Heater, Rear Window Defogger
Mirror Heater, Rear Window Defogger

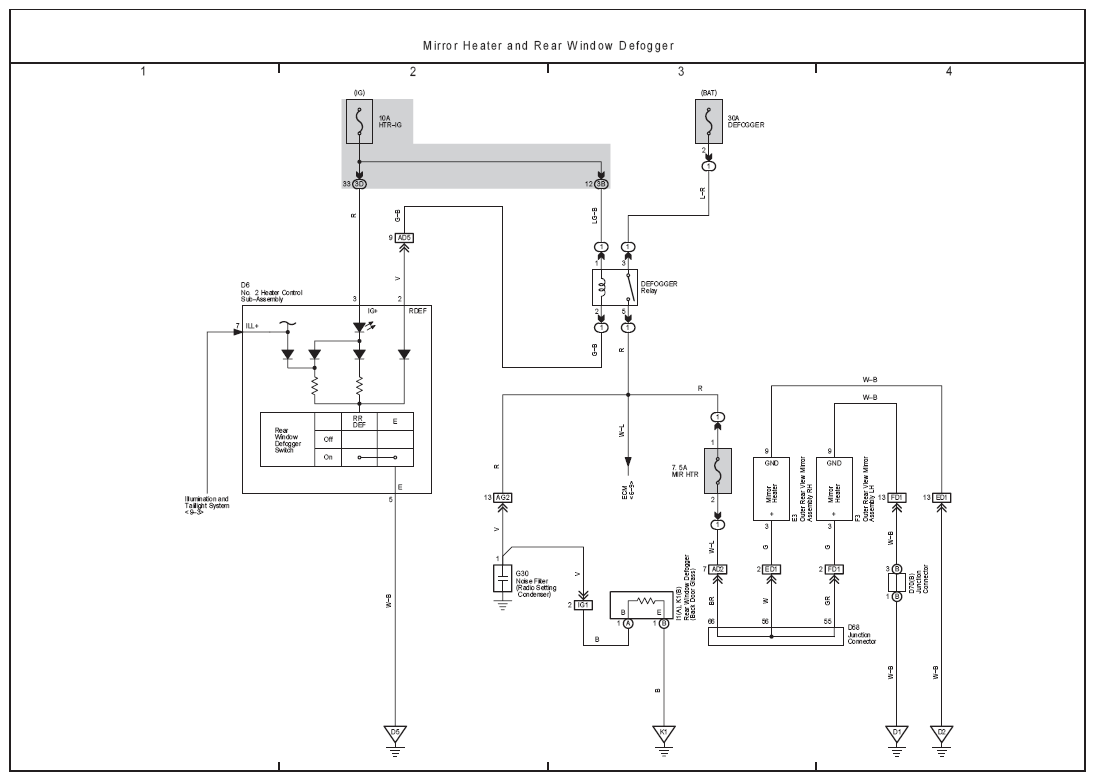

Fig 1: Mirror Heater And Rear Window Defogger Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
