Illumination, Taillight

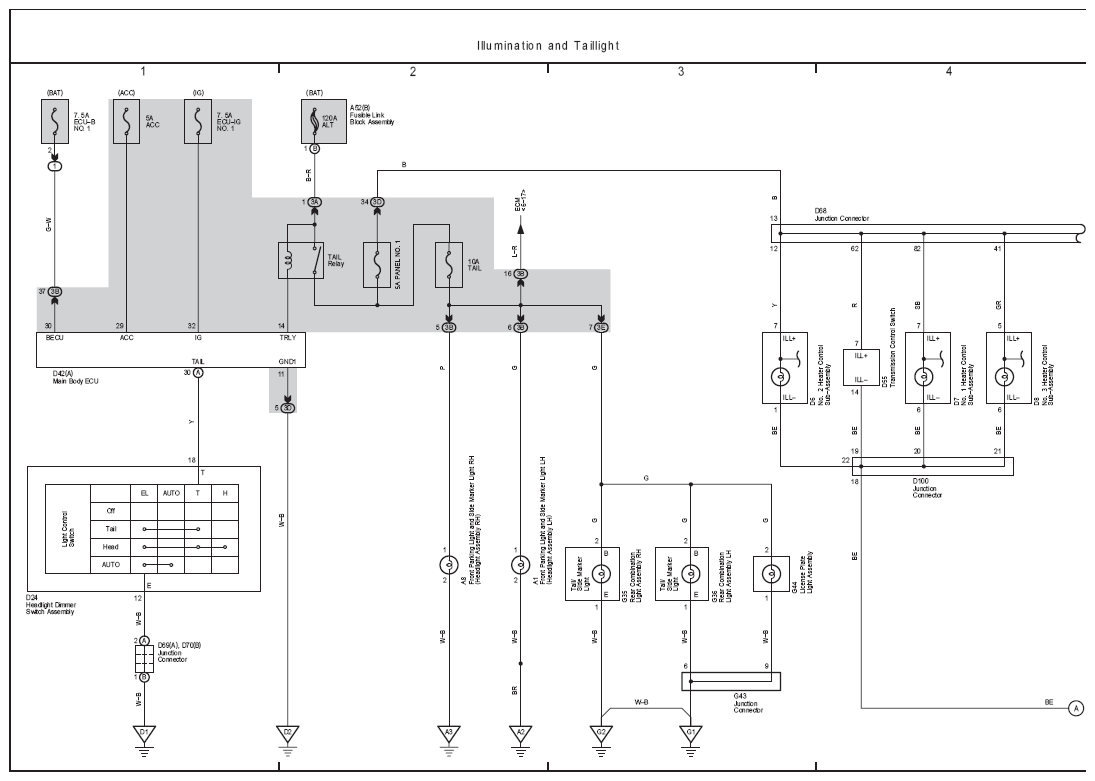

Fig 1: Illumination And Taillight Wiring Diagram (1 Of 2)
G08774982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

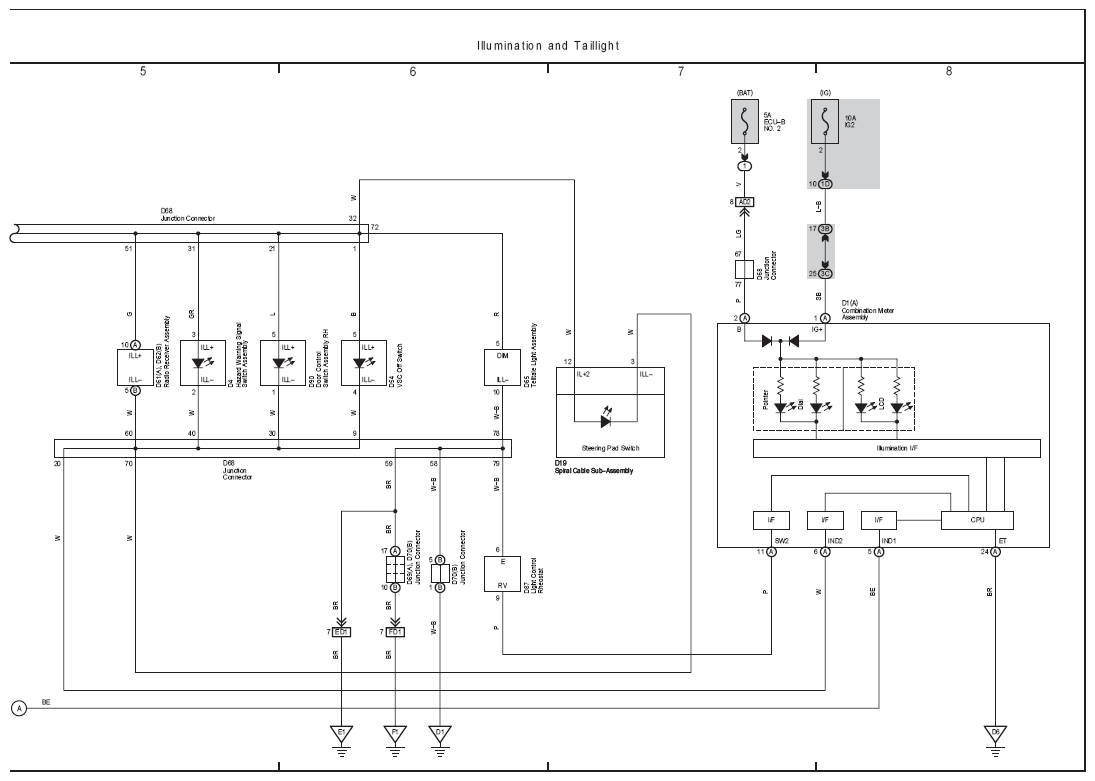

Fig 2: Illumination And Taillight Wiring Diagram (2 Of 2)
G08774983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
