Overall Electrical Wiring Diagram: Headlight

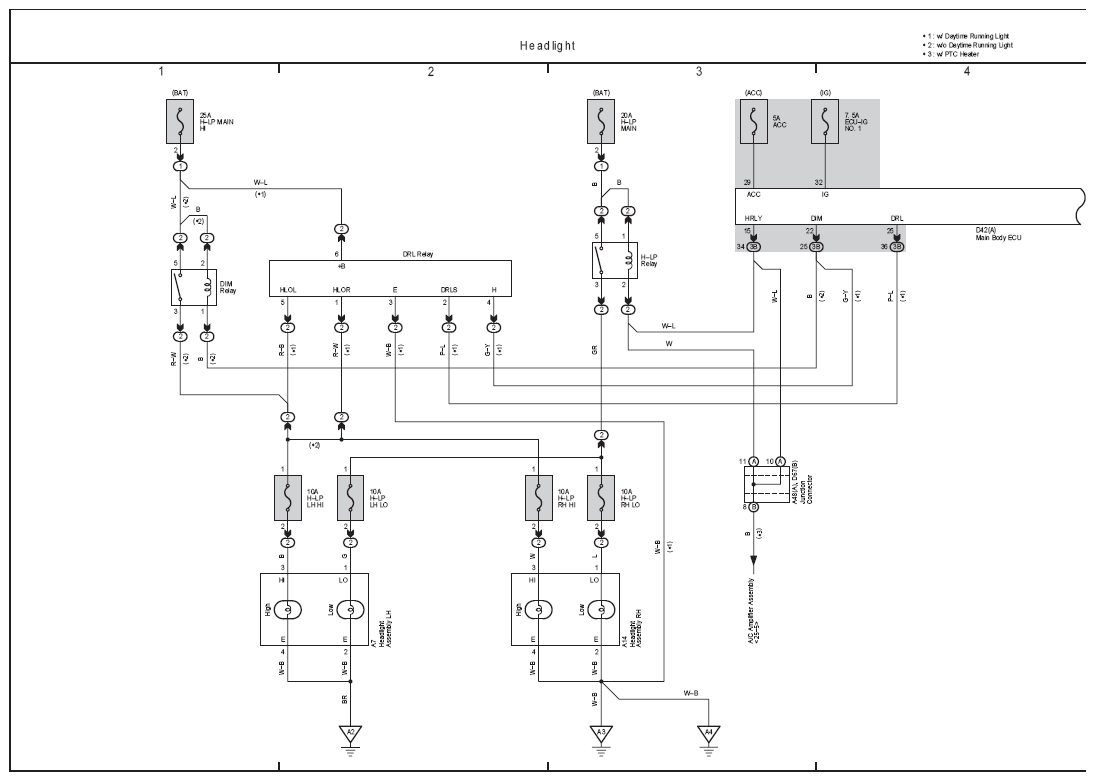

Fig 1: Headlight Wiring Diagram (1 Of 2)
G08774980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

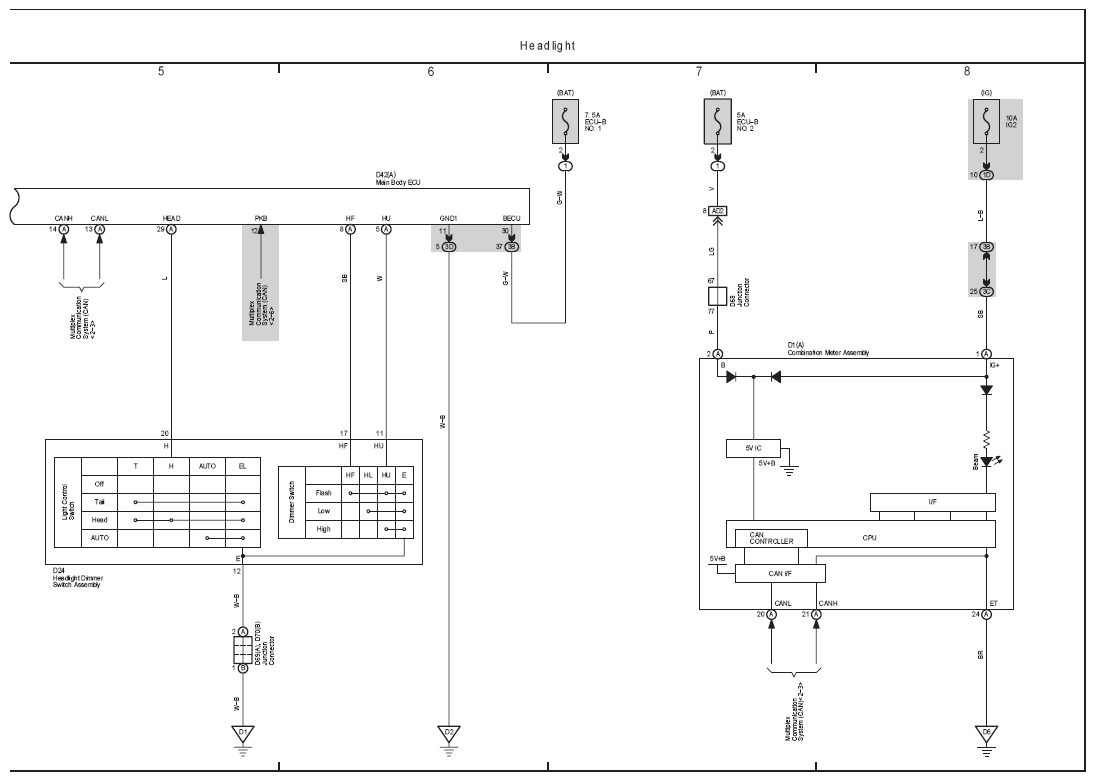

Fig 2: Headlight Wiring Diagram (2 Of 2)
G08774981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
