Front Wiper And Washer

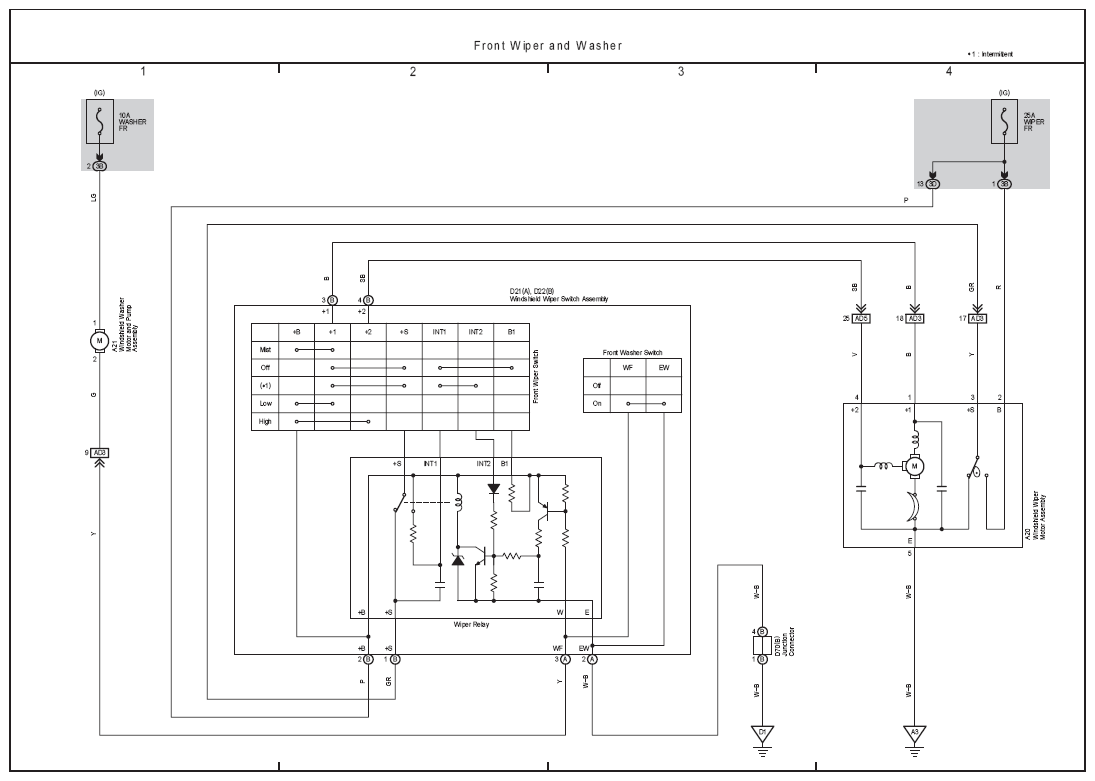

Fig 1: Front Wiper And Washer Wiring Diagram
G08774994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
