Overall Electrical Wiring Diagram: EPS

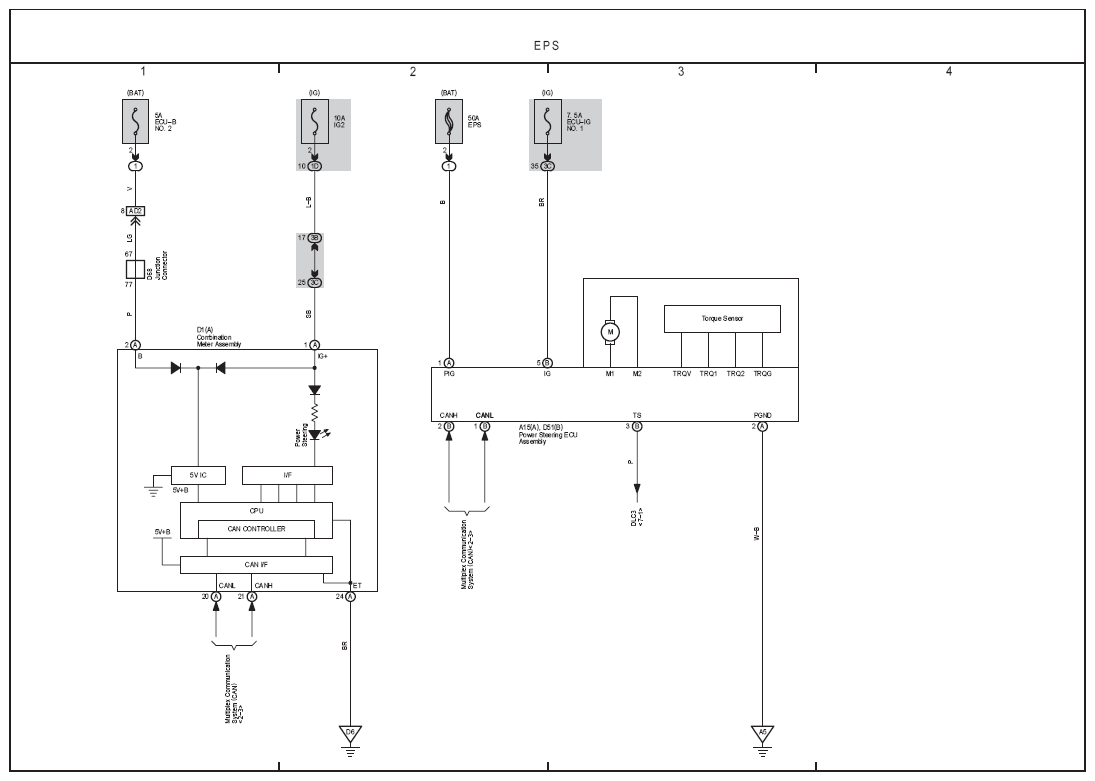

Fig 1: EPS Wiring Diagram

G08774988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
