Data Link Connector 3 (DLC3), Engine Immobilizer
Data Link Connector 3 (DLC3), Engine Immobilizer

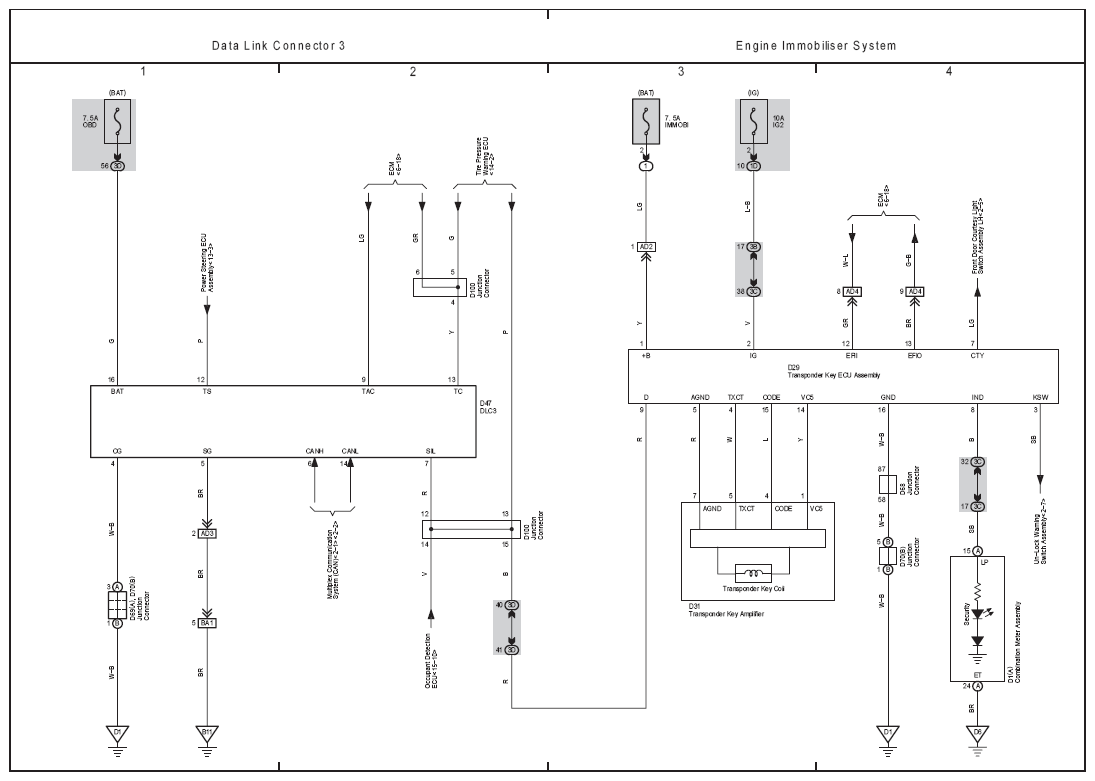

Fig 1: Data Link Connector 3 And Engine Immobilizer Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
