Combination Meter

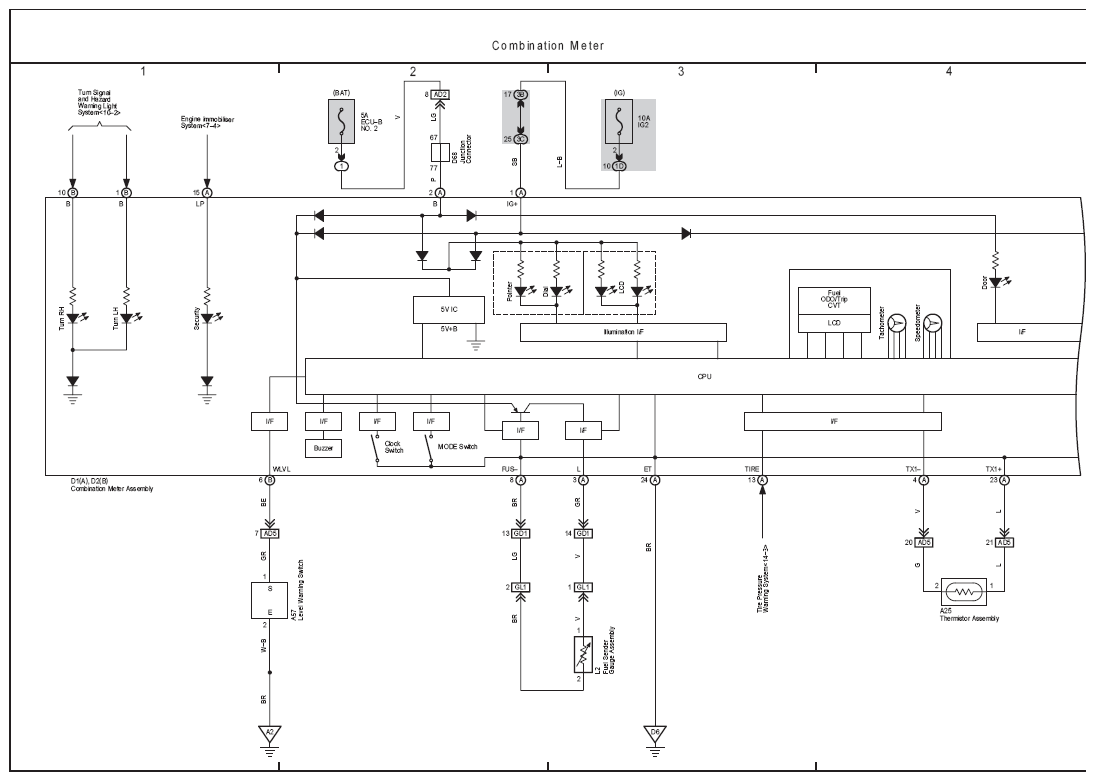

Fig 1: Combination Meter Wiring Diagram (1 Of 2)
G08775000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

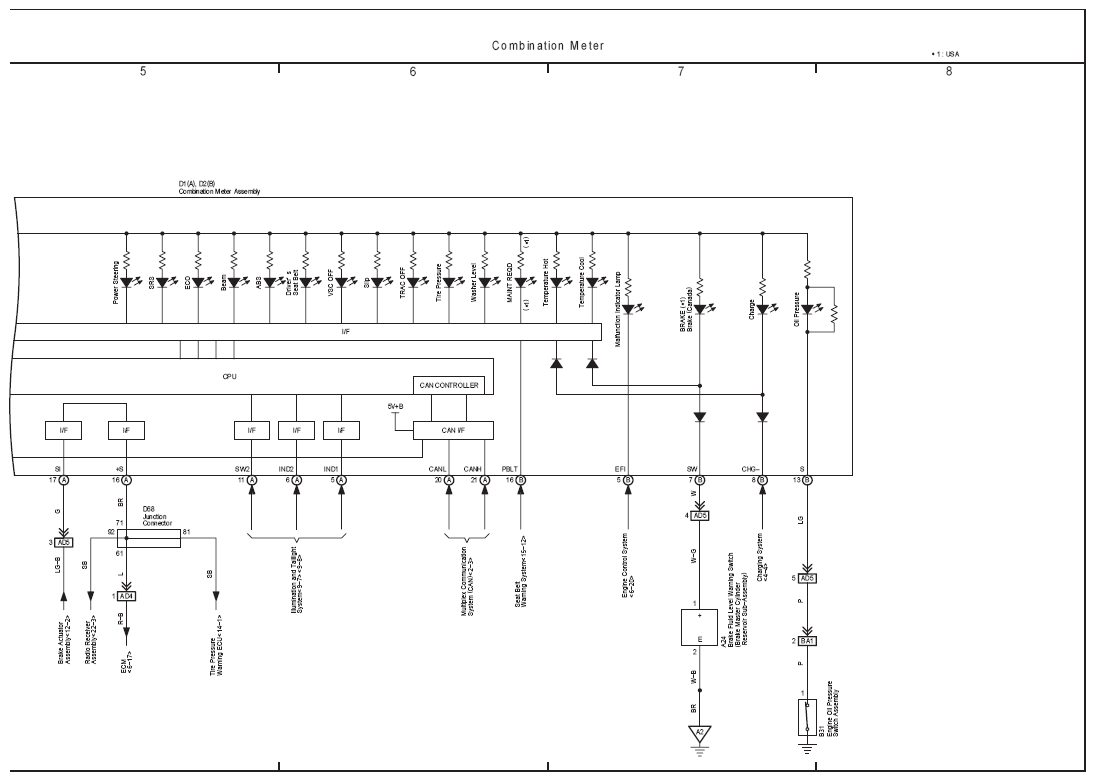

Fig 2: Combination Meter Wiring Diagram (2 Of 2)
G08775001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
