Air Conditioning

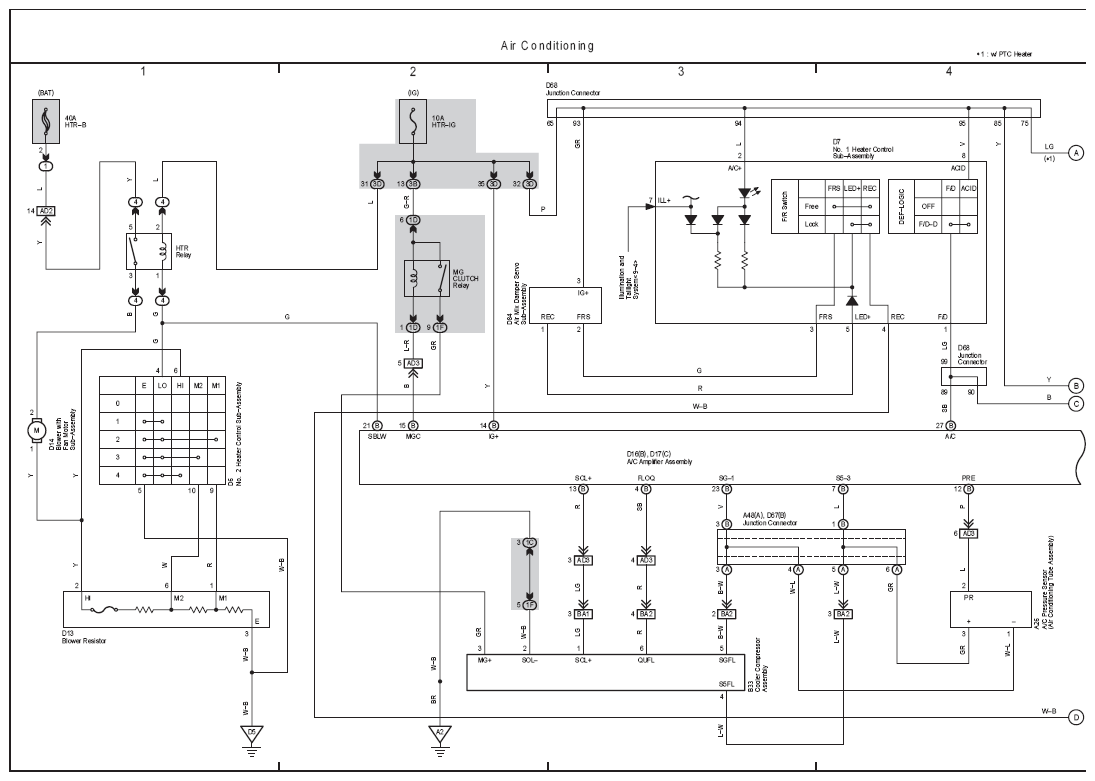

Fig 1: Air Conditioning Wiring Diagram (1 Of 2)
G08775003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

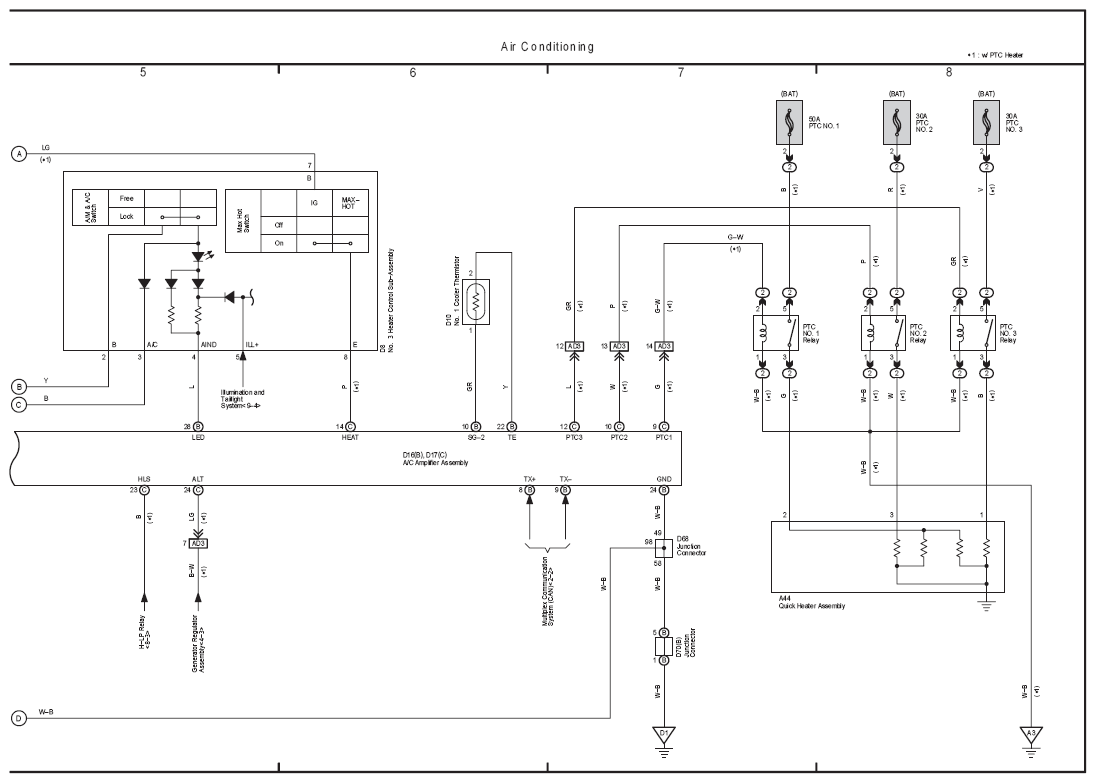

Fig 2: Air Conditioning Wiring Diagram (2 Of 2)
G08775004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
