Abs, TRAC, VSC

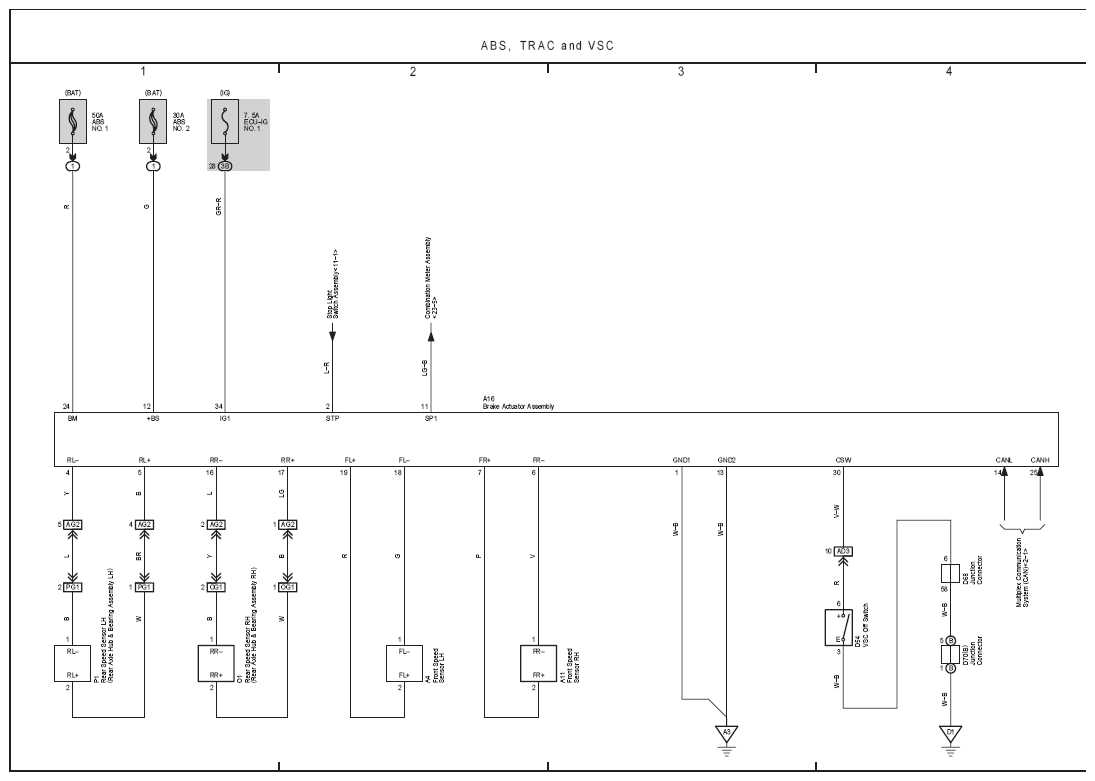

Fig 1: ABS, TRAC And VSC Wiring Diagram (1 Of 2)
G08774986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

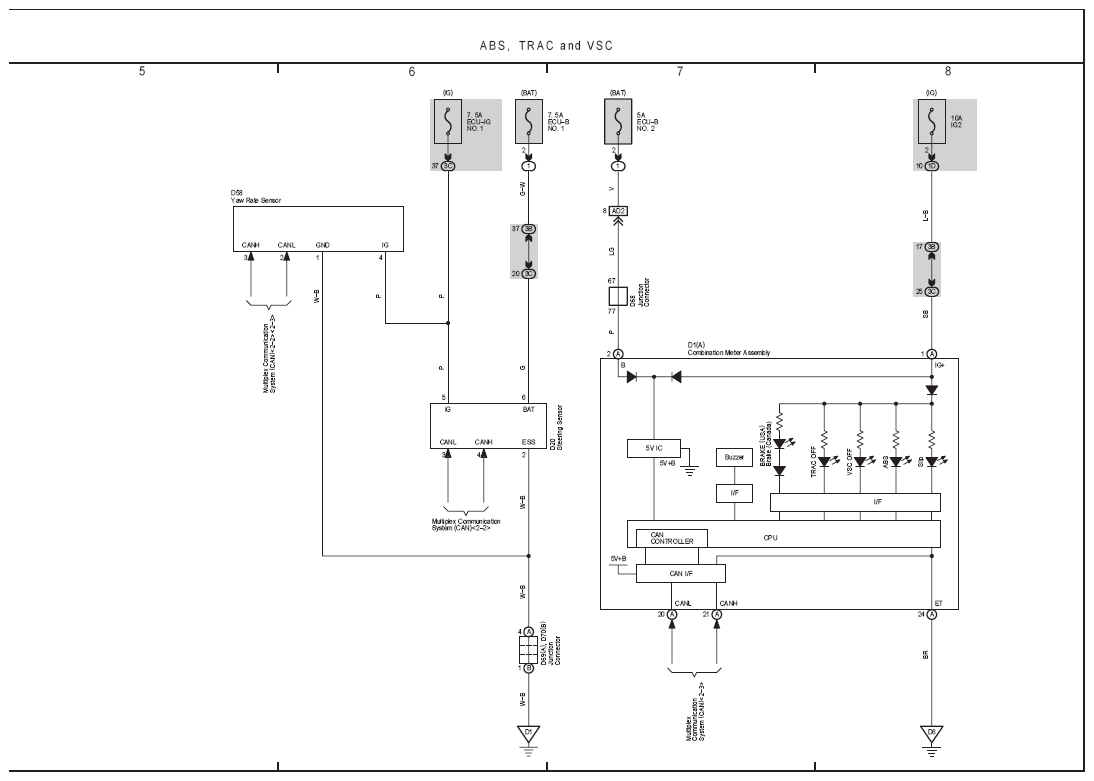

Fig 2: ABS, TRAC And VSC Wiring Diagram (2 Of 2)
G08774987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
