Rear Brake: Components: Illustration

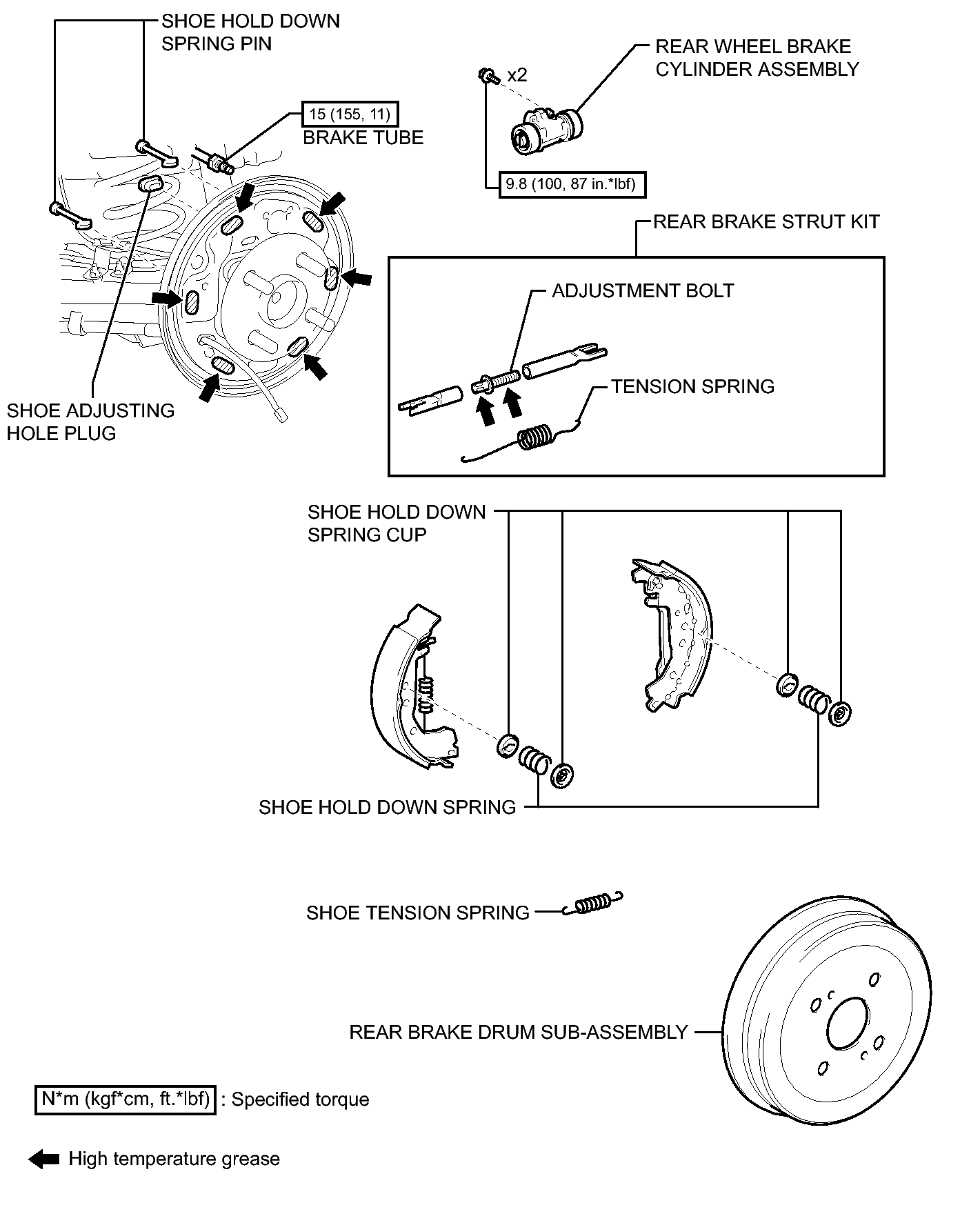

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 3)
GTY390545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

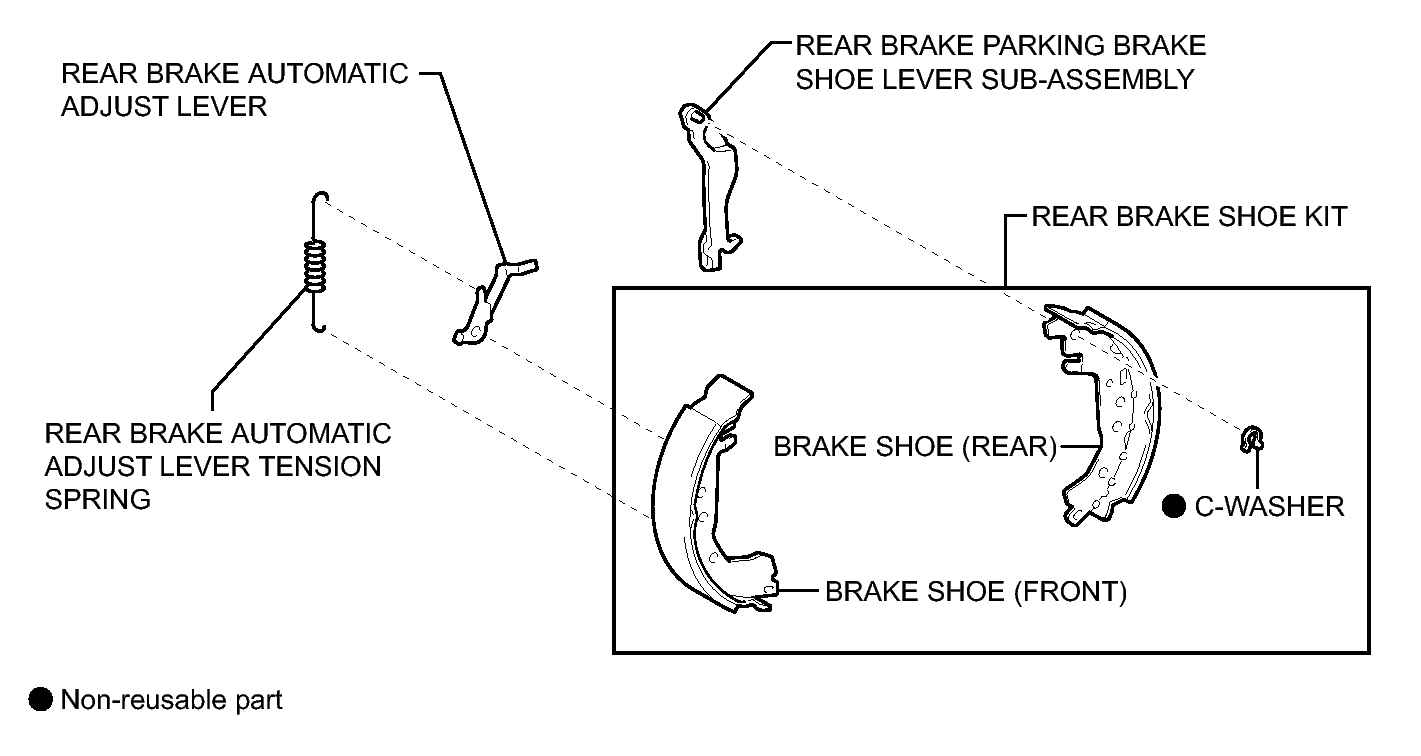

Fig 1: Identifying Rear Brake Replacement Components (2 Of 3)
GTY390040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

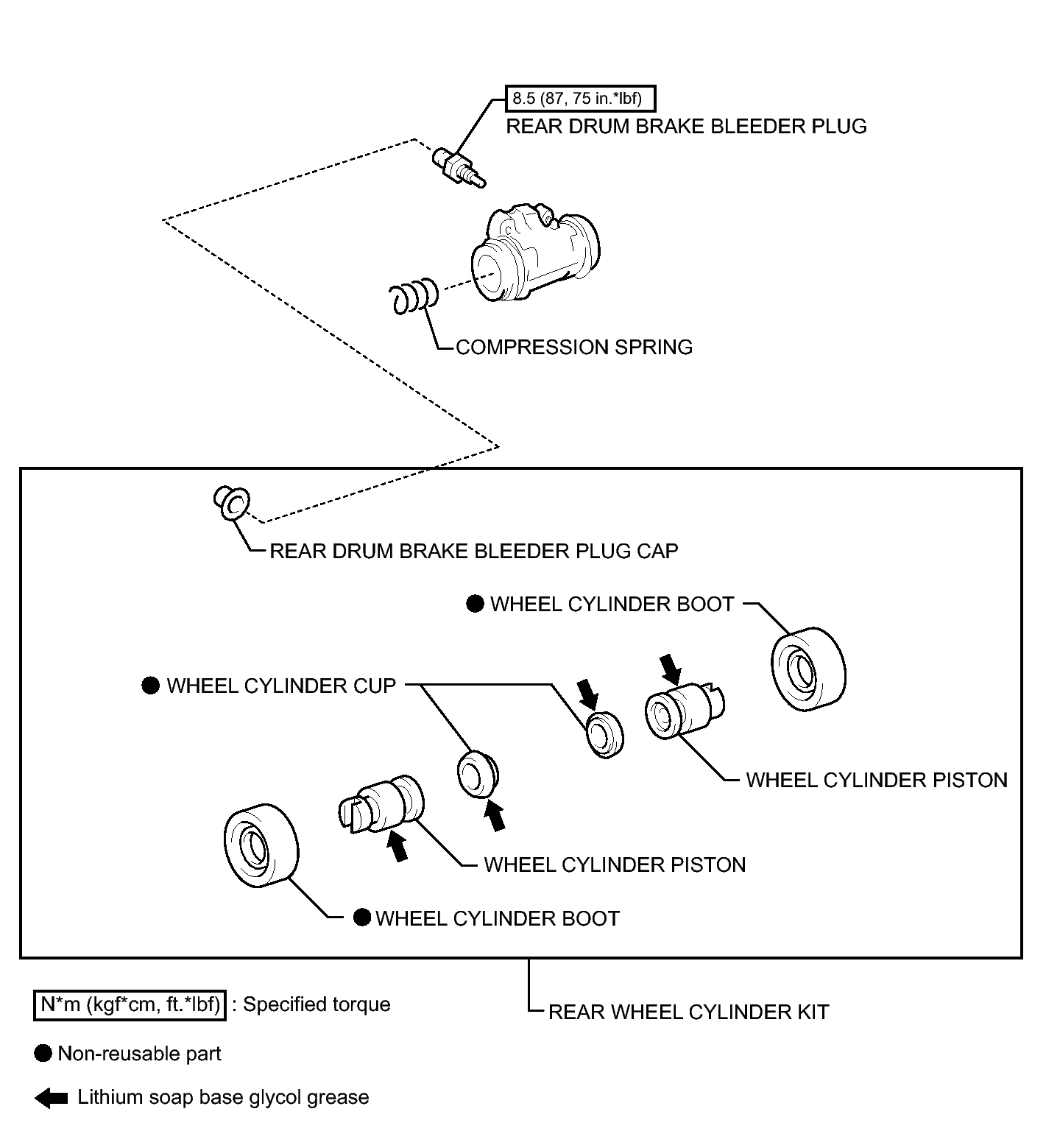

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (3 Of 3)
GTY392817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
