Charge Lid Opener does not Operate: Wiring Diagram

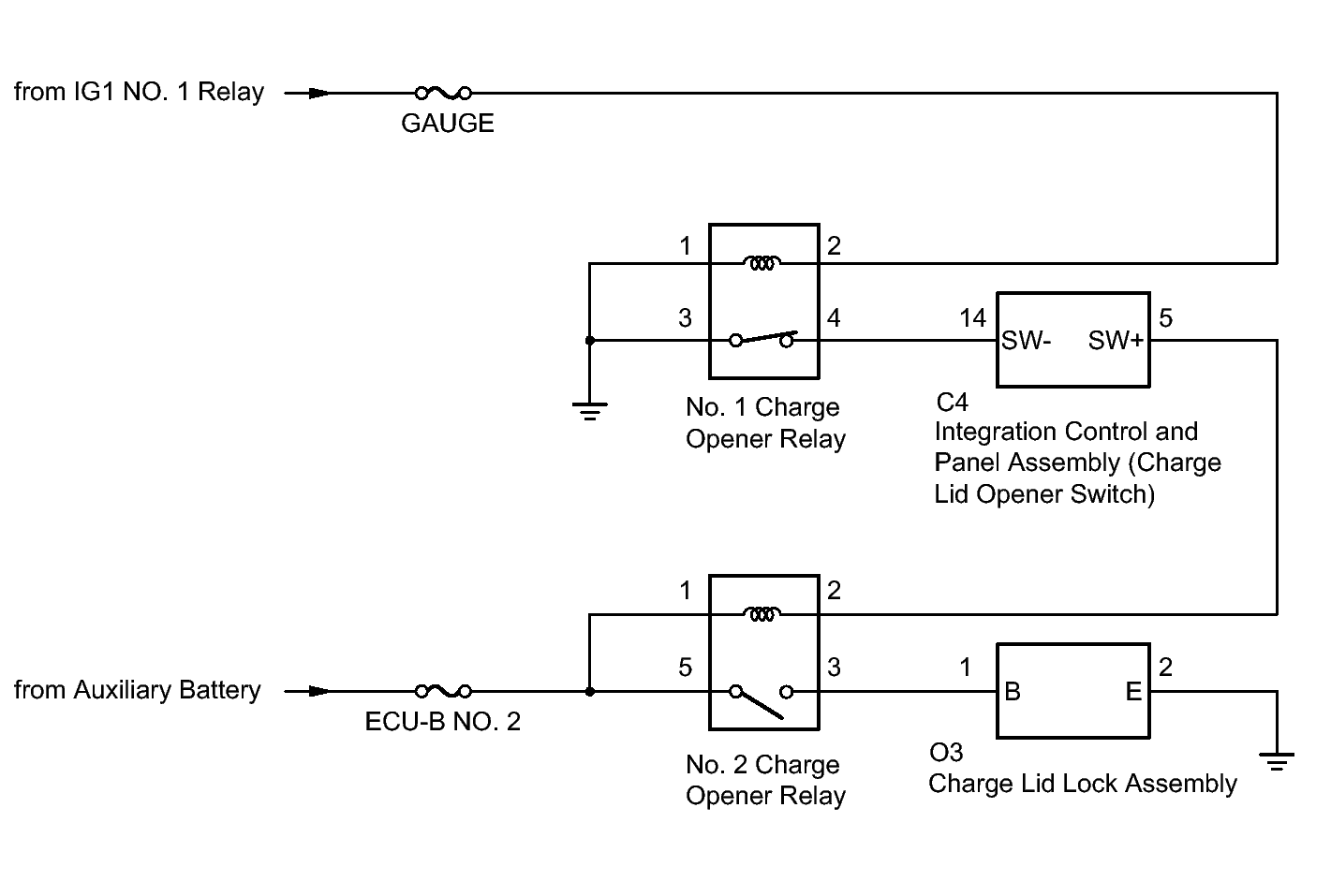

Fig 1: Charge Lid Opener Wiring Diagram

GTY391267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
