Charge Lid Illumination Malfunction: Wiring Diagram

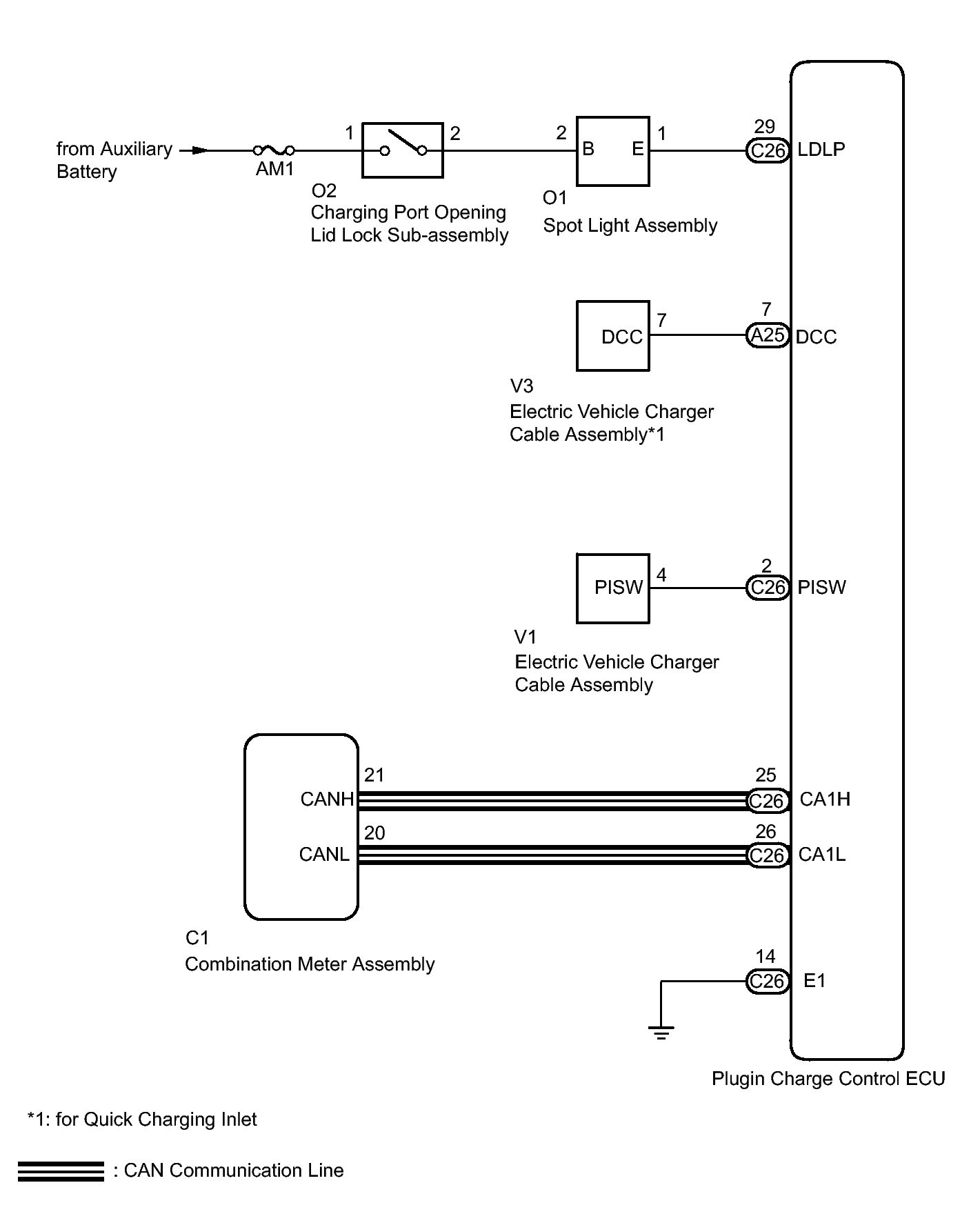

Fig 1: Charge Lid Illumination Wiring Diagram

GTY387811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
