Parts Location: Illustration

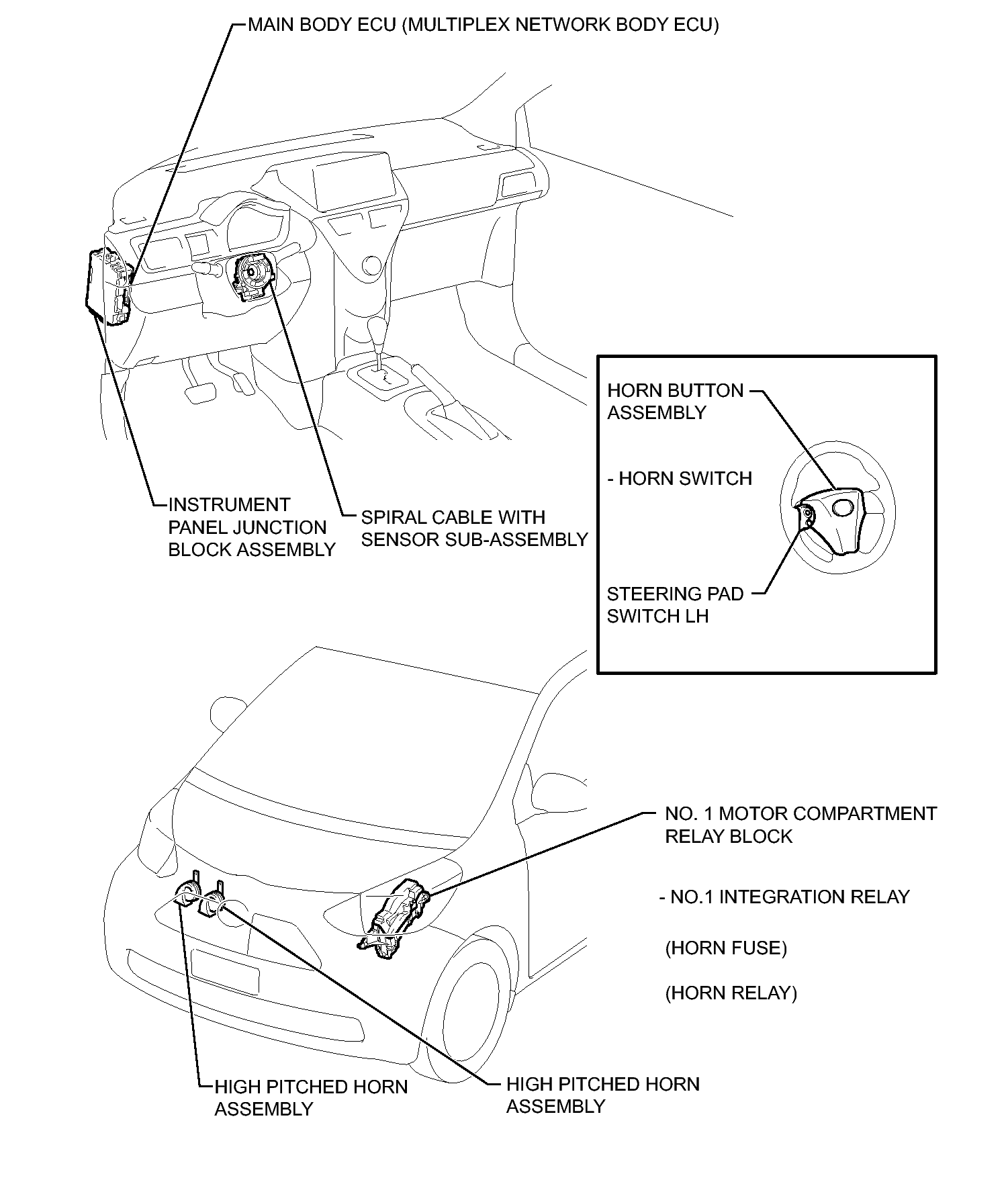

Fig 1: Identifying Horn System Replacement Components

GTY389639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
