Combination Meter: Disassembly: Disassembly

  1. REMOVE COMBINATION METER GLASS
    1. Disengage the 6 claws and remove the combination meter glass.

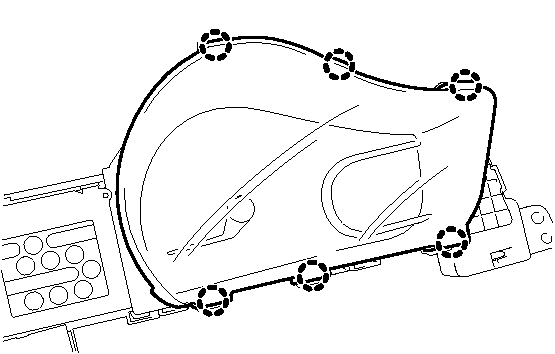

      Fig 1: Identifying Combination Meter Glass Claws
      GTY386128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 METER LENS
    1. Remove the screw.

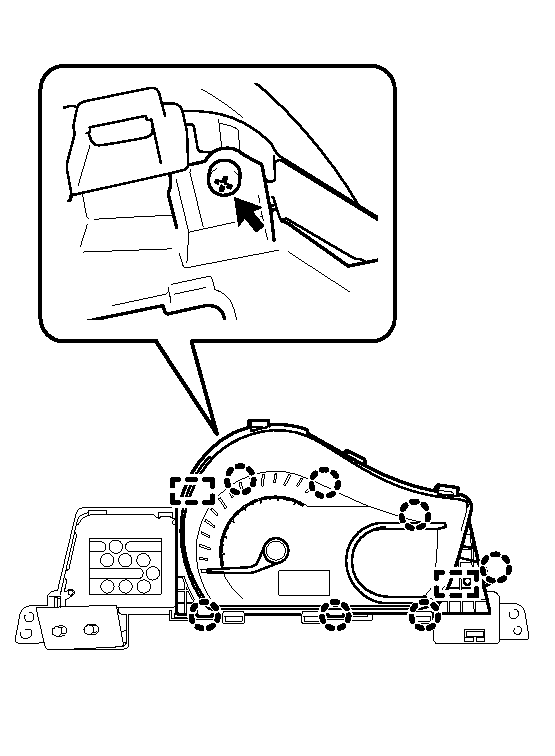

      Fig 2: Identifying No. 1 Meter Lens Screw & Claws
      GTY385916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 claws and 2 pins and remove the No. 1 combination meter cover.
    3. Disengage the pin and 3 guides and remove the No. 1 meter lens.

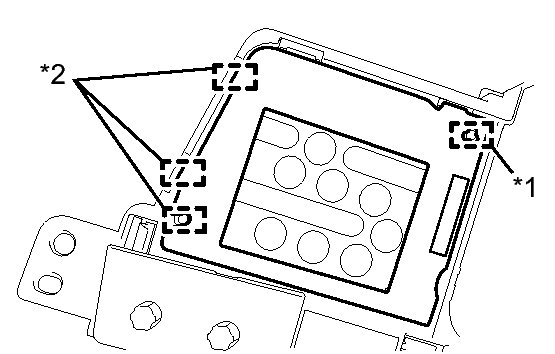

      Fig 3: Identifying No. 1 Meter Lens Pin & Guides
      GTY387589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin
      *2 Guide
  3. REMOVE COMBINATION METER COVER
    1. Remove the screw.

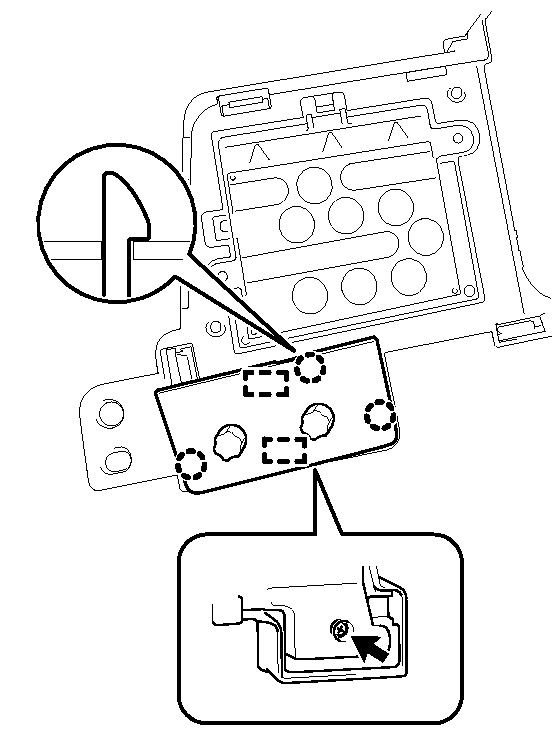

      Fig 4: Identifying Combination Meter Cover Screw, Claws & Pins
      GTY392942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws and 2 pins and remove the combination meter cover.
