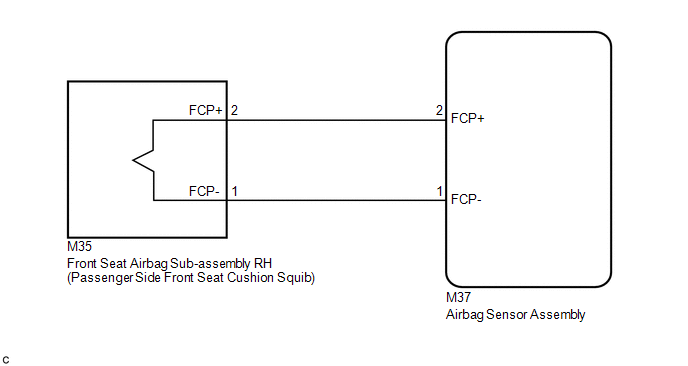

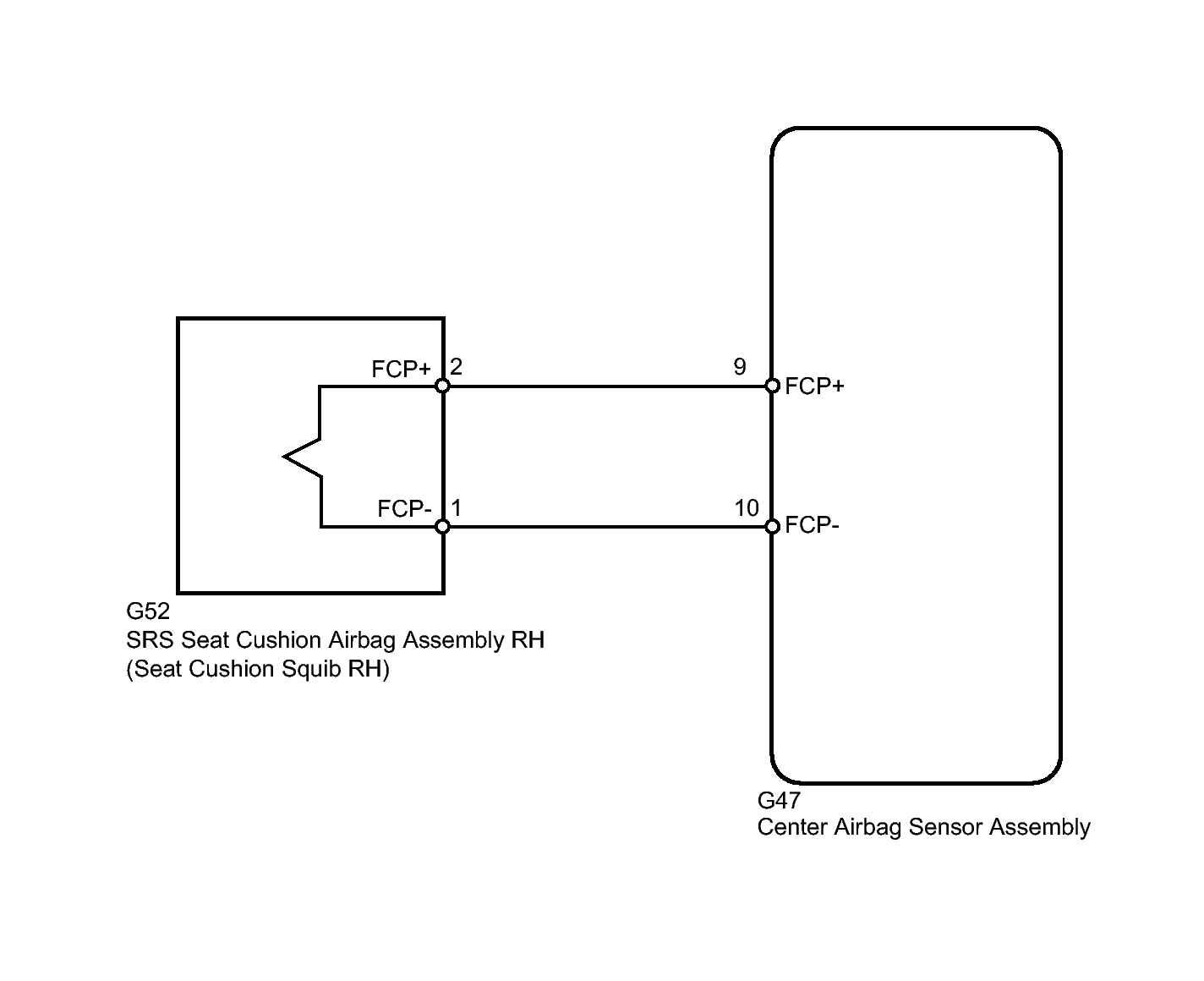

DTC B1875/67: Short in Passenger Side Front Seat Cushion Squib Circuit; DTC B1876/67: Open in Passenger Side Front Seat Cushion Squib Circuit; DTC B1877/67: Short to GND in Passenger Side Front Seat Cushion Squib Circuit; DTC B1878/67: Short to B+ in Passenger Side Front Seat Cushion Squib Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
