DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit: Procedure

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connector is properly connected to the front seat side airbag assembly LH.

   OK

   The connector is properly connected.

   HINT:

   If the connector is not connected securely, reconnect the connector and proceed to the next inspection.

4. Disconnect the connector from the front seat side airbag assembly LH.
5. Check that the terminal of the connector is not damaged.

   OK

   The terminal is not deformed or damaged.

NG → REPLACE FLOOR WIRE

OK: Go to next step

• SST: 09843-18061

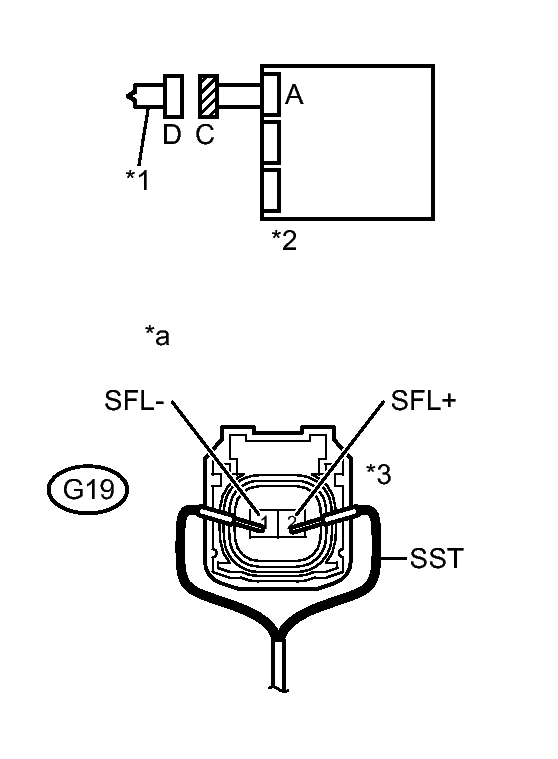

Fig 1: Checking Front Seat Airbag LH (Side Squib LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect SST (resistance: 2.1 Ω) to connector C.
   WARNING:

   Never connect the tester to the front seat side airbag assembly LH (side squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting SST.
   • Insert SST straight into the terminals of the connector.
2. Connect the cable to the negative battery terminal, and wait for at least 2 seconds.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
5. Turn the ignition switch off.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Check for DTCs. Refer to DTC CHECK / CLEAR .

   OK

   DTC B1825, B1826, B1827, B1828 or 56 is not output.

   TEXT IN ILLUSTRATION



   *1	Side Squib LH
   *2	Center Airbag Sensor Assembly
   *3	Connector C
   *a	Front view of wire harness connector (to Side Squib LH)

   HINT:

   DTCs other than B1825, B1826, B1827, B1828 and 56 may be output at this time, but they are not related to this check.

NG → See step   3

OK → See step   6

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect SST from connector C.
4. Check that the connector is properly connected to the center airbag sensor assembly.

   OK

   The connector is properly connected.

5. Disconnect the connector from the center airbag sensor assembly.
6. Check that the terminal of the connector is not damaged.

   OK

   The terminal is not deformed or damaged.

7. Check that the short spring for the floor wire connector with the activation prevention mechanism is not deformed or damaged.

   OK

   The short spring is not deformed or damaged.

NG → REPLACE FLOOR WIRE

OK: Go to next step

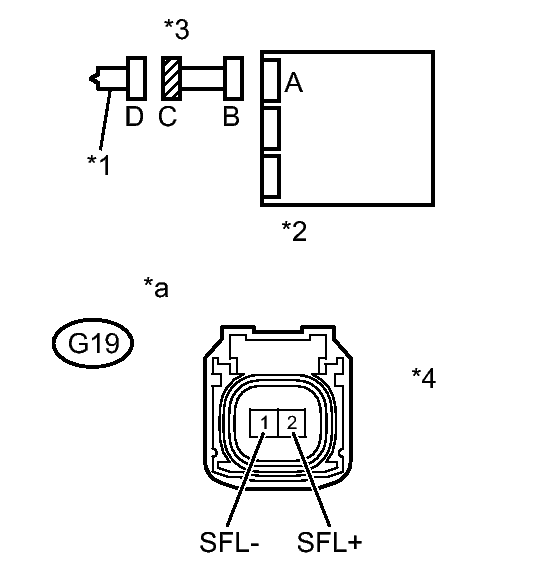

Fig 2: Checking Floor Wire (Side Squib LH - Center Airbag Sensor Assembly)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the cable to the negative battery terminal, and wait for at least 2 seconds.
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G19-1 (SFL-) - Body ground	Ignition switch ON	Below 1 V
   G19-2 (SFL+) - Body ground	Ignition switch ON	Below 1 V

   TEXT IN ILLUSTRATION



   *1	Side Squib LH
   *2	Center Airbag Sensor Assembly
   *3	Floor Wire
   *4	Connector C
   *a	Front view of wire harness connector (to Side Squib LH)

4. Turn the ignition switch off.
5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G19-1 (SFL-) - G19-2 (SFL+)	Always	Below 1 Ω

7. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM .
8. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G19-1 (SFL-) - G19-2 (SFL+)	Always	1 MΩ or higher
   G19-1 (SFL-) - Body ground	Always	1 MΩ or higher
   G19-2 (SFL+) - Body ground	Always	1 MΩ or higher

9. Restore the released activation prevention mechanism of connector B to the original condition.

NG → REPLACE FLOOR WIRE

OK: Go to next step

1. Connect the connectors to the front seat side airbag assembly LH and the center airbag sensor assembly.
2. Connect the cable to the negative battery terminal, and wait for at least 2 seconds.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
5. Turn the ignition switch off.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Check for DTCs. Refer to DTC CHECK / CLEAR .

   OK

   DTC B1825, B1826, B1827, B1828 or 56 is not output.

   HINT:

   DTCs other than B1825, B1826, B1827, B1828 and 56 may be output at this time, but they are not related to this check.

NG → See step   7

OK → See step   8
