DTC B1649/82: Rear Sensor Initialization Incomplete LH: Wiring Diagram

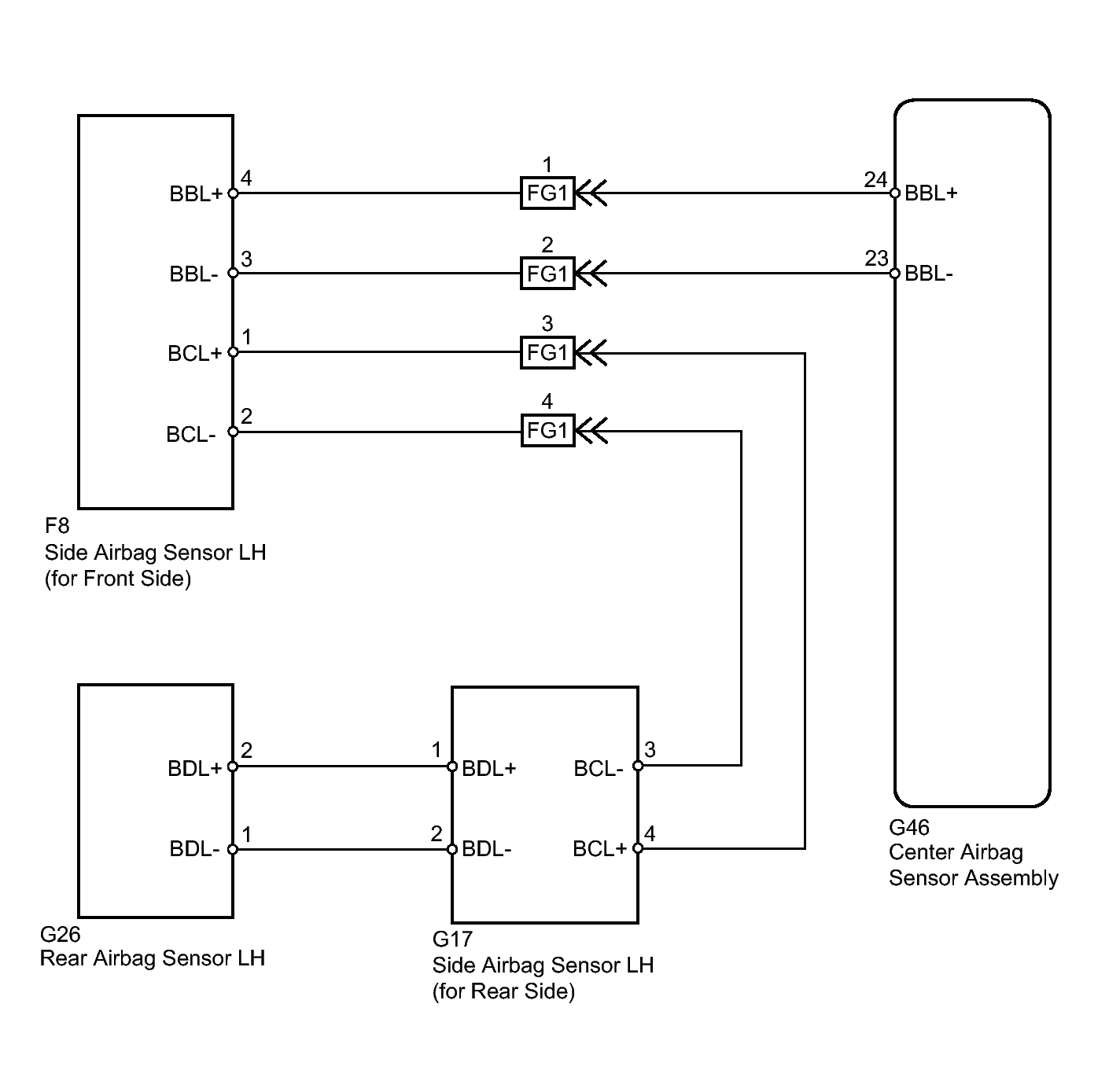

Fig 1: Side Airbag Sensor LH Wiring Diagram

GTY344492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
