DTC B1623/81: Side Airbag Sensor Assembly RH Initialization Incomplete: Wiring Diagram

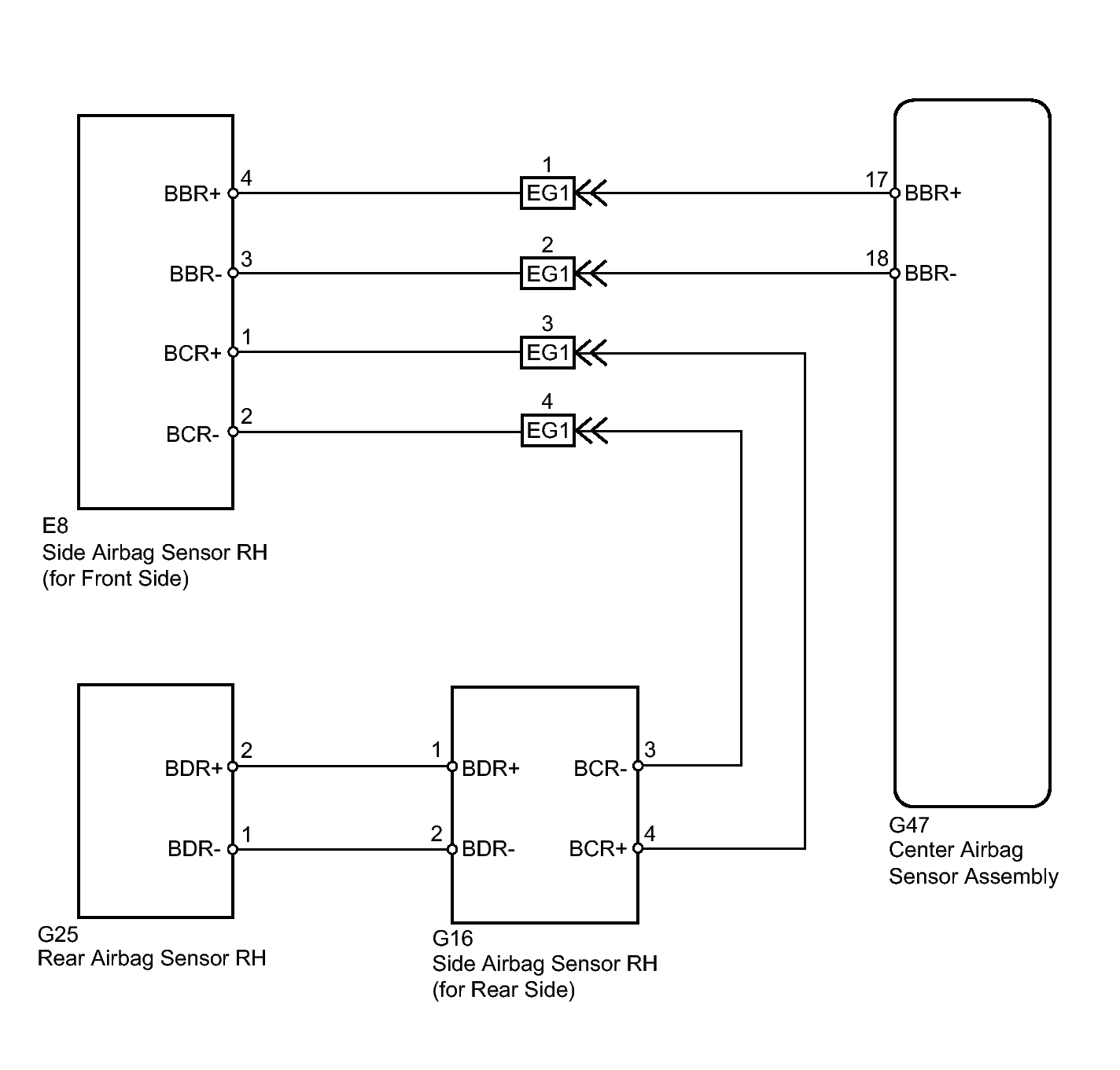

Fig 1: Rear Airbag Sensor RH Wiring Diagram

GTY346864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
